ThinkNode G1 Indoor 8 Channels LoRaWAN Gateway Powered By SX1302 Chip¶
Description¶
Are you still frustrated by imprecise indoor positioning? ThinkNode G1 is here to help! What is ThinkNode G1?
Elecrow ThinkNode G1 is an advanced LoRaWAN indoor gateway designed to connect to various network servers. This gateway supports multiple connection methods such as WiFi, Bluetooth, and Ethernet, supports 8-channel transmission, and utilizes LoRa wireless technology to achieve long-distance data transmission at extremely low data rates, providing users with an efficient and reliable communication solution.
The G1 gateway adopts an advanced packet forwarder from Semtech and is fully compatible with the LoRaWAN protocol, ensuring efficient and stable communication. It is equipped with an SX1302 LoRa concentrator and two SX1250 chips, offering 10 programmable parallel demodulation paths, significantly enhancing data processing capabilities and communication efficiency.
The ThinkNode G1 indoor gateway supports global ISM frequency bands, with a frequency range from 815MHz to 960MHz. It also comes preset with LoRaWAN frequency bands that comply with European and American standards. With a powerful signal coverage that provides 5 to 10 km of LoRaWAN signal range, it is adaptable to various wireless application scenarios.
Whether it's smart buildings and home automation, logistics and supply chain management, smart metering, smart agriculture, smart cities, or smart factories, the G1 gateway provides extensive coverage and powerful signal output capabilities, ensuring stable network connections in various environments. With its outstanding performance and flexibility, the ThinkNode G1 gateway has become an ideal choice for building LoRaWAN networks, bringing users an unprecedented smart interconnected experience.
Self-developed by Elecrow with exclusive design.
Note: The 4G function currently only supports batch customization. If you need it, please contact service@elecrow.com
Model CIL12302G

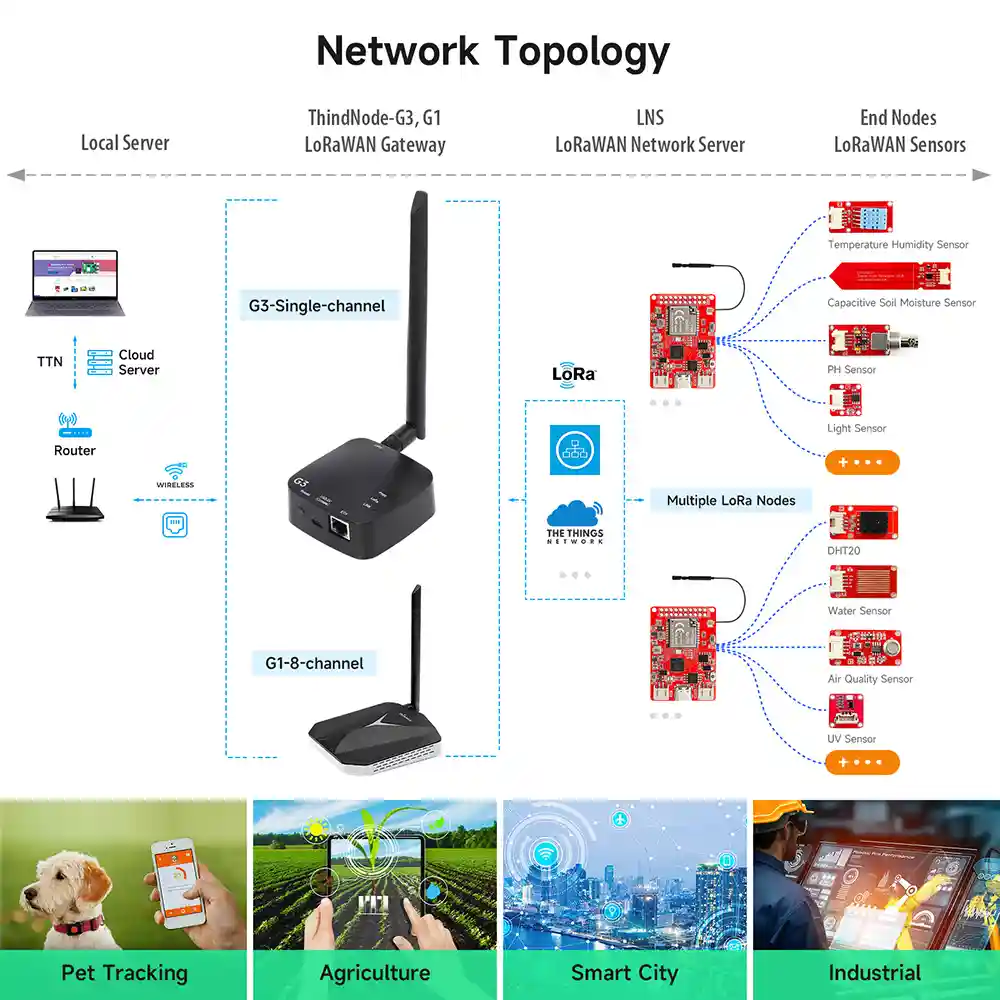

Network Topology¶

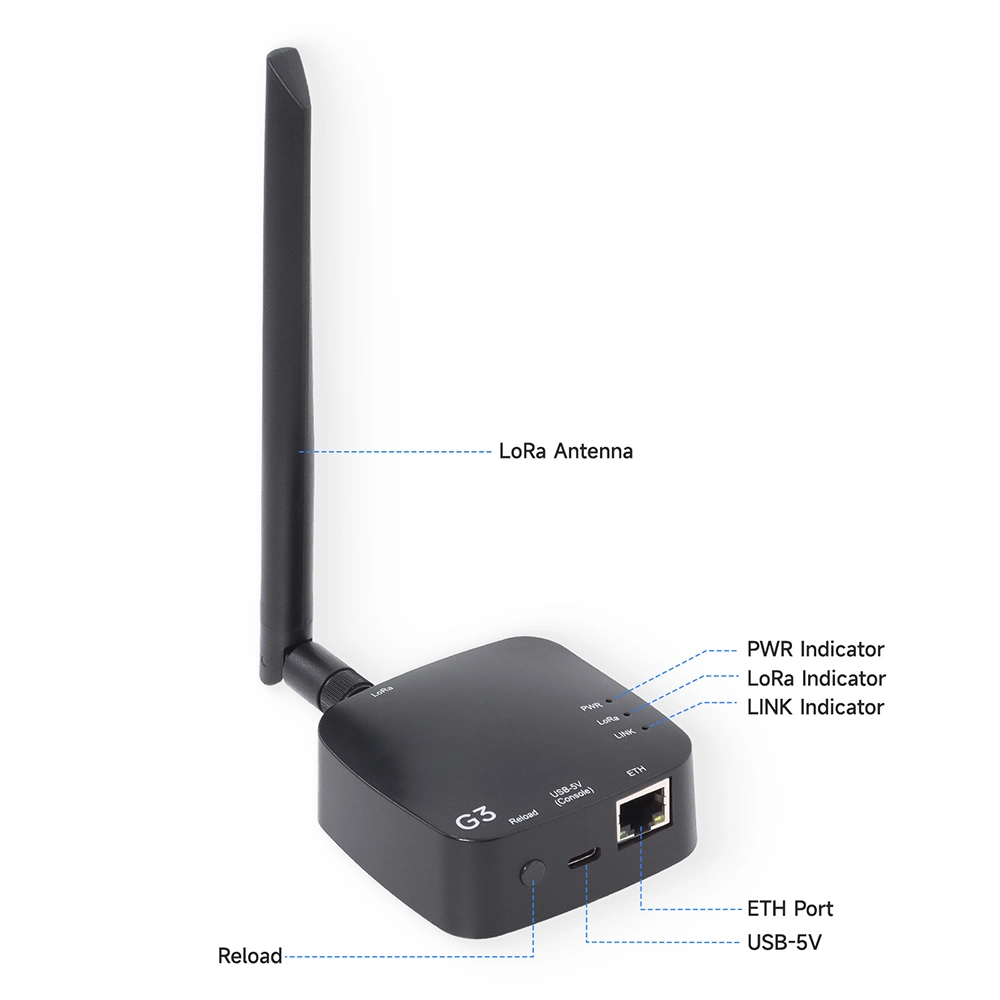

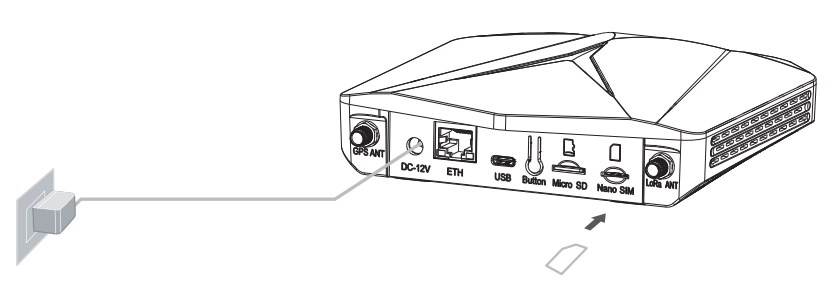

Hardware Overview¶
Feature¶

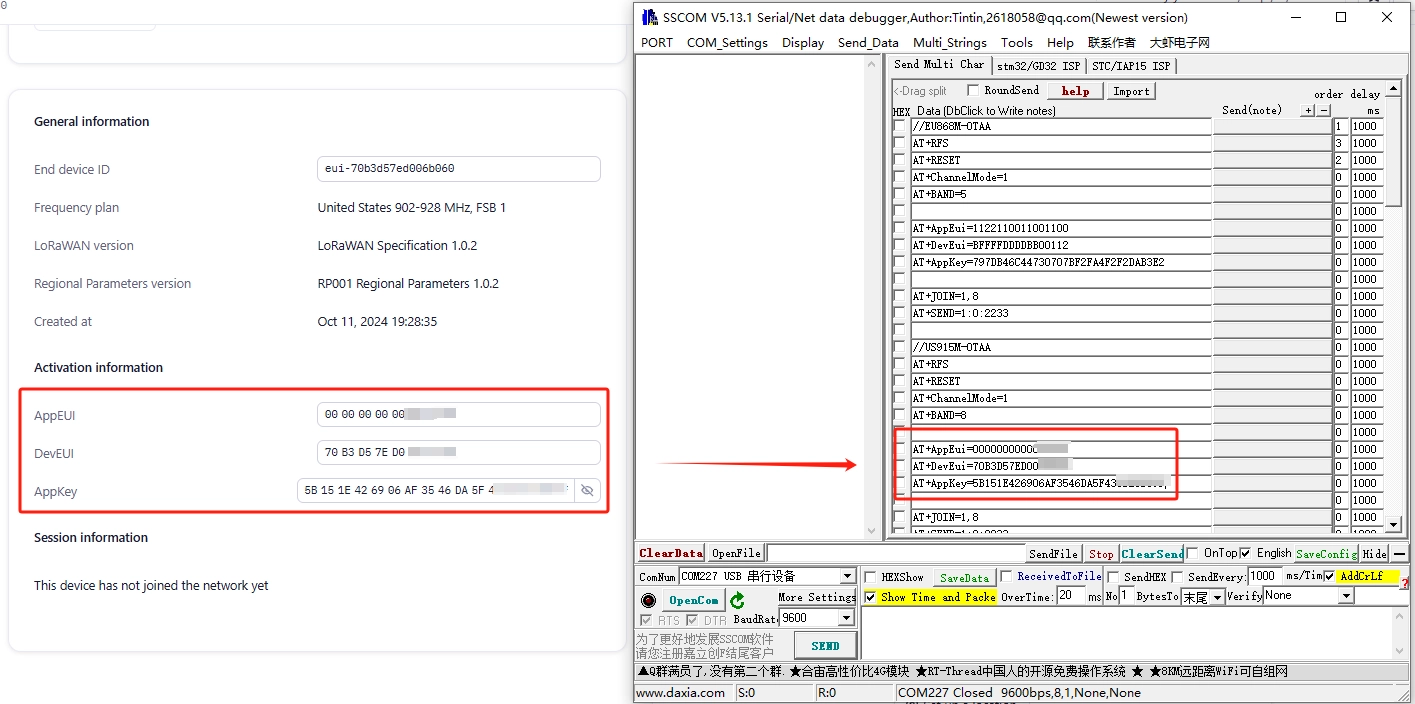

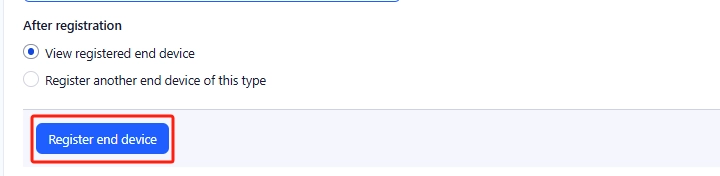

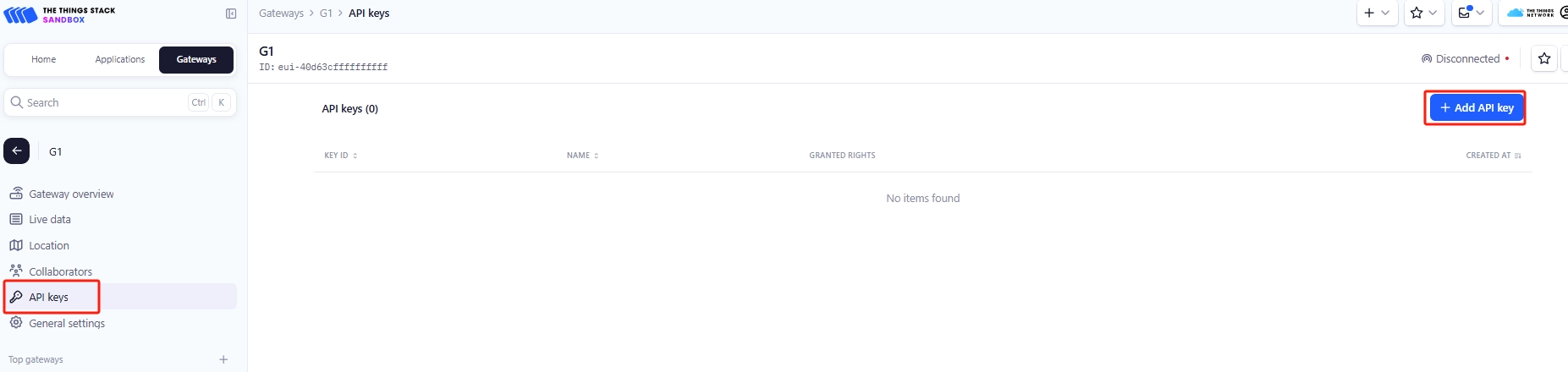

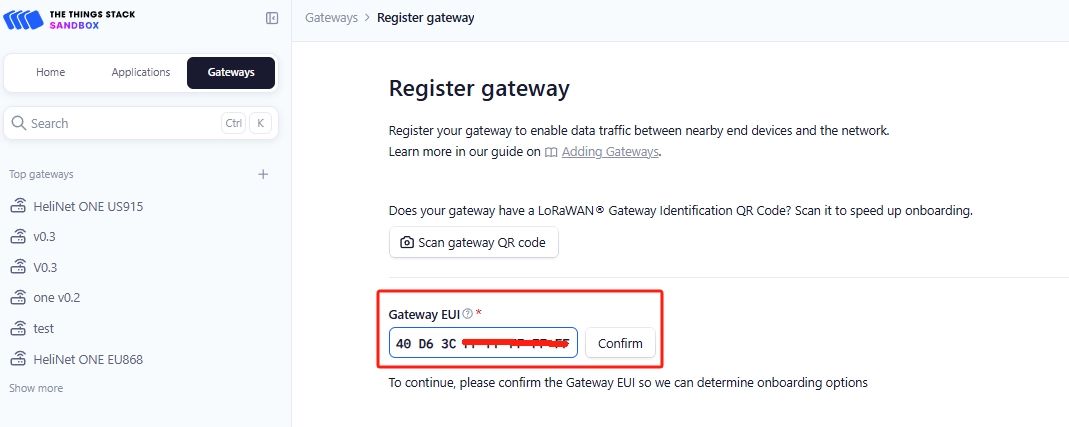

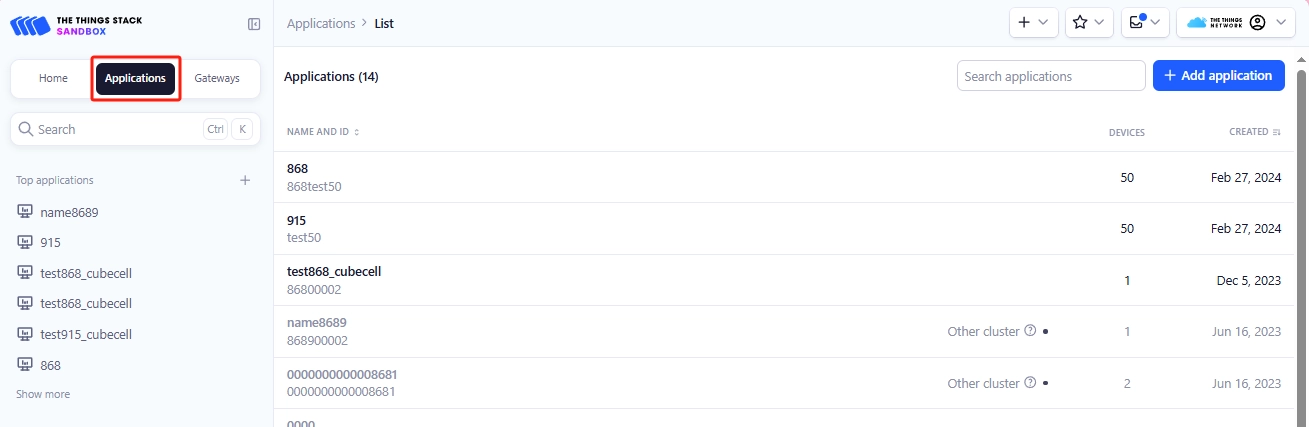

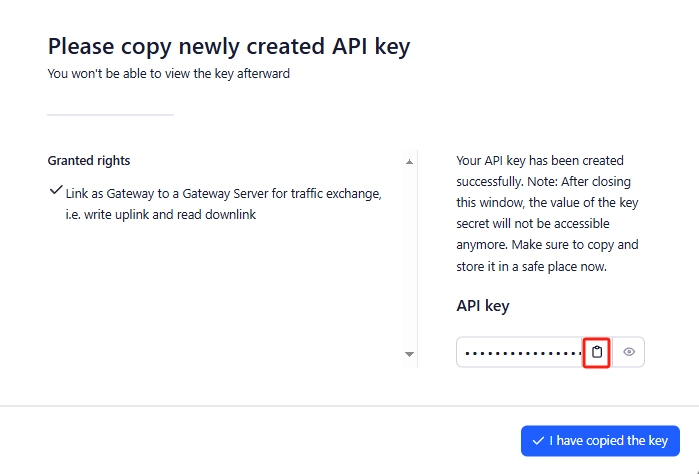

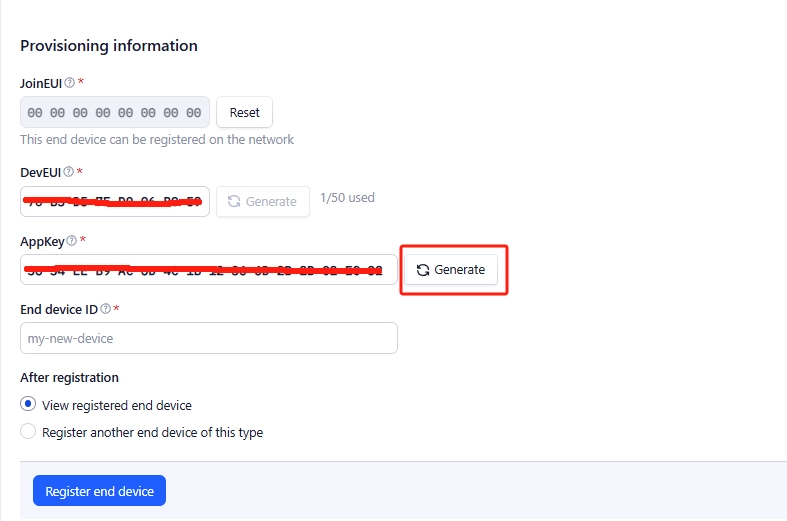

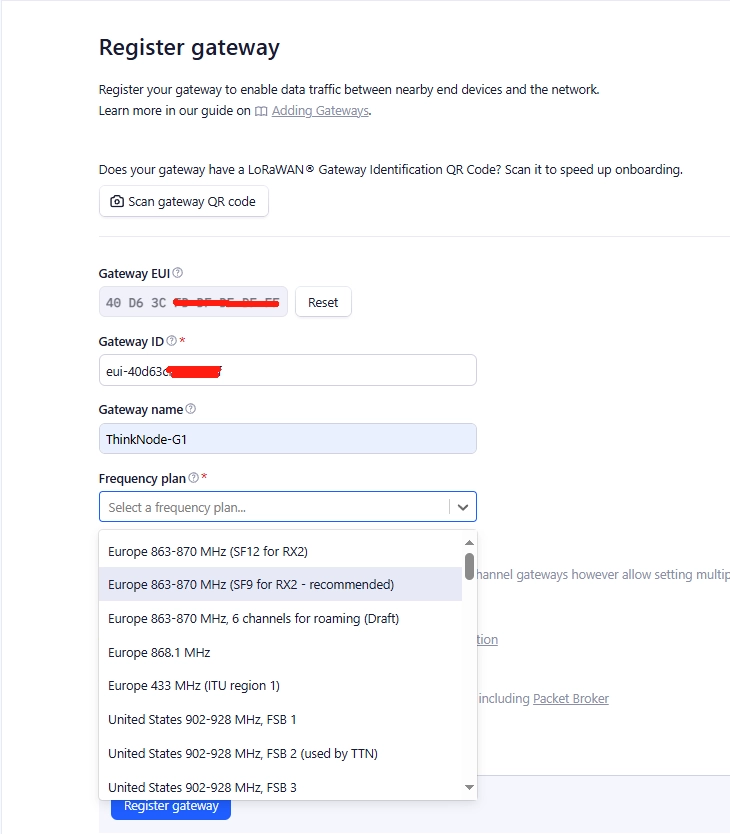

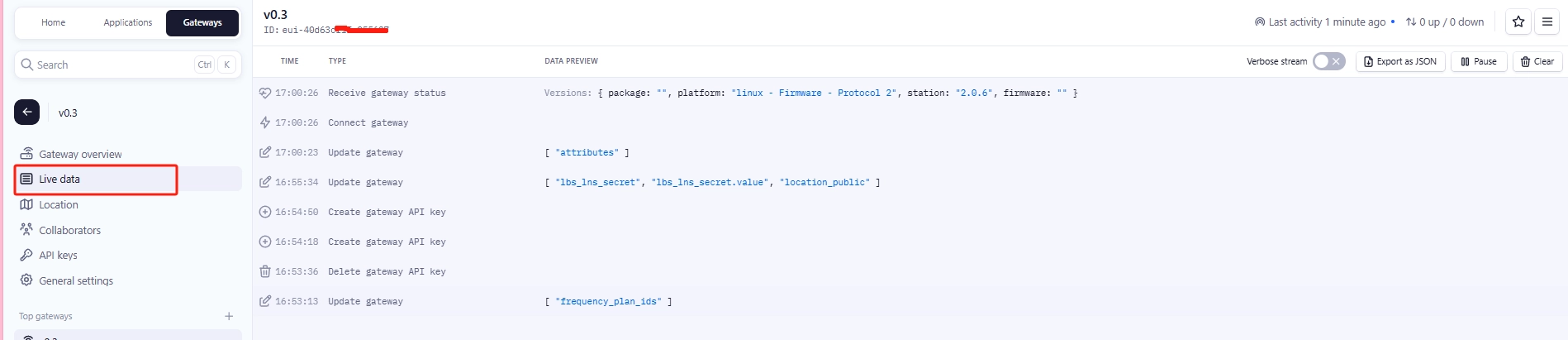

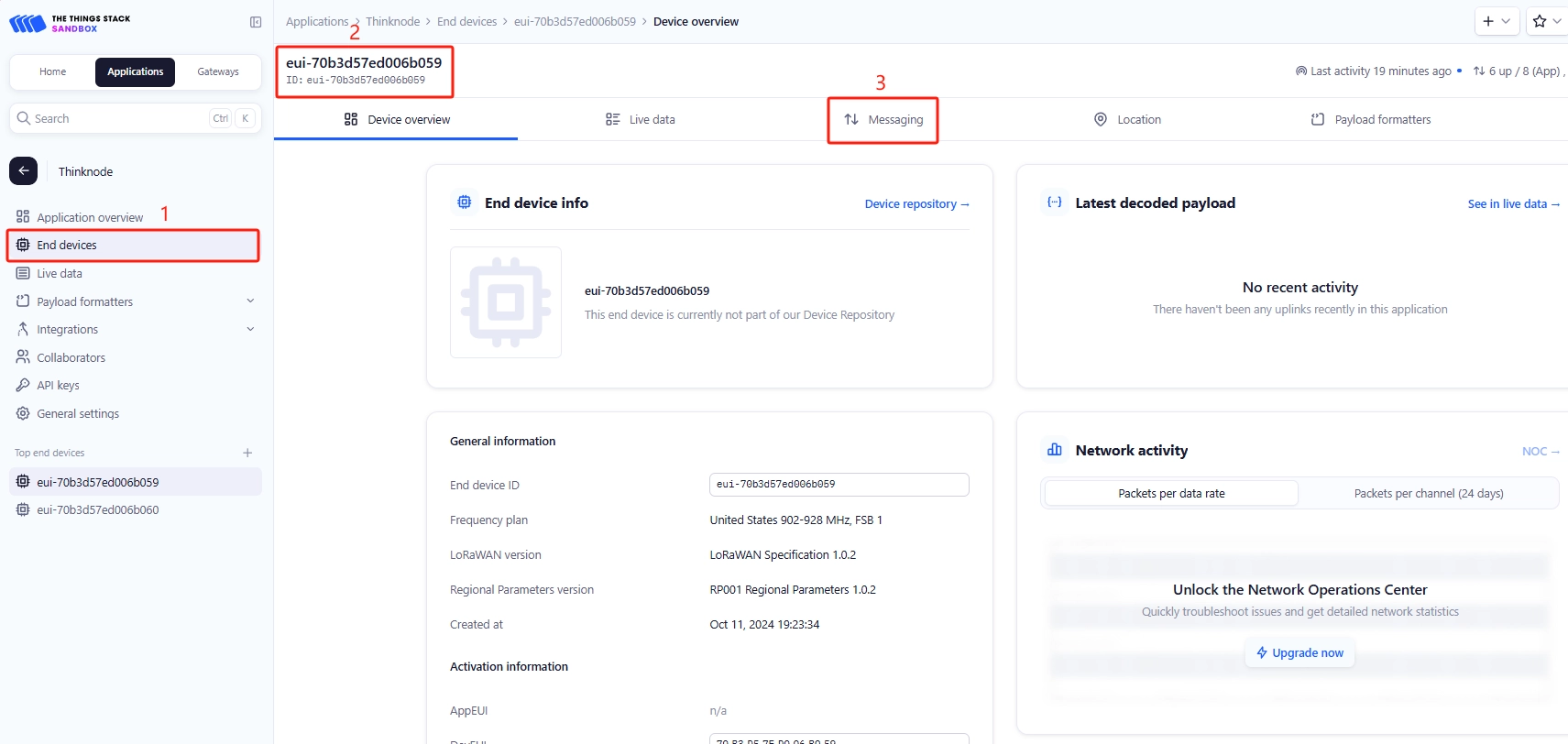

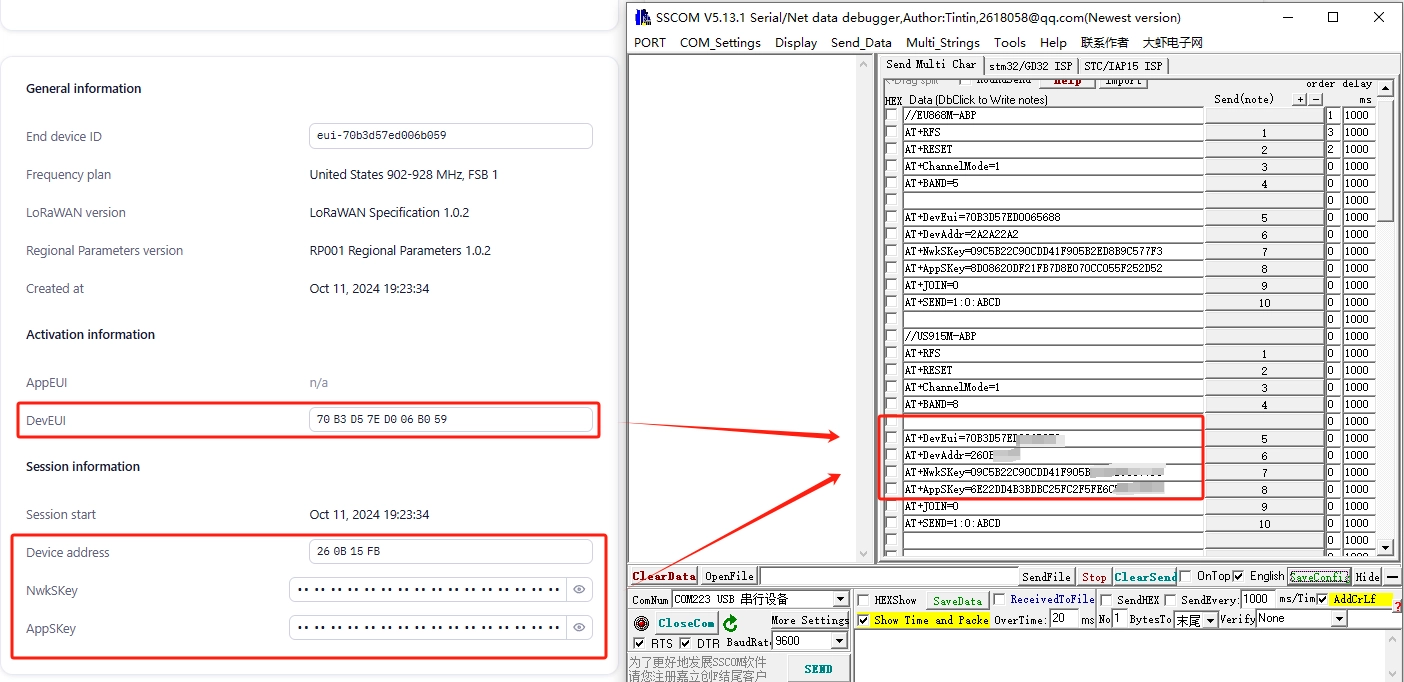

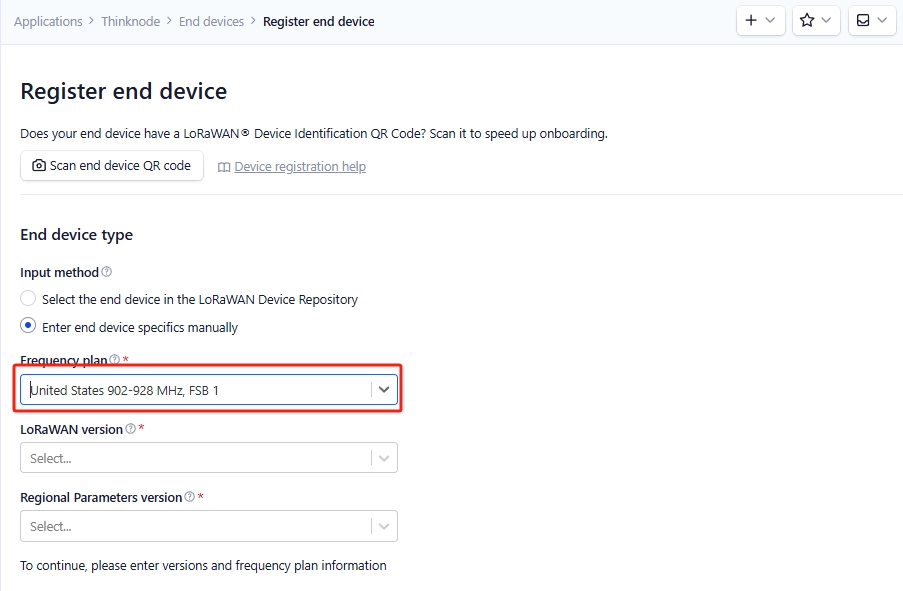

- Compatible with Various Network Servers. Equipped with advanced packet forwarding technology, it seamlessly supports multiple LoRaWAN network servers including The Things Network (TTN), ChirpStack, etc., offering flexible network service options.
- Built-in Gateway Server. Provides a plug-and-play solution that simplifies the network deployment process and accelerates the implementation of IoT projects.
- Extensive Signal Coverage. The G1 gateway offers 5 to 10 km of LoRaWAN signal coverage, ensuring efficient and stable data processing.
- High-Performance Hardware. With a MediaTek MT7628 processor and Semtech SX1302 baseband chip, the ThinkNode G1 gateway ensures efficient and stable data processing.

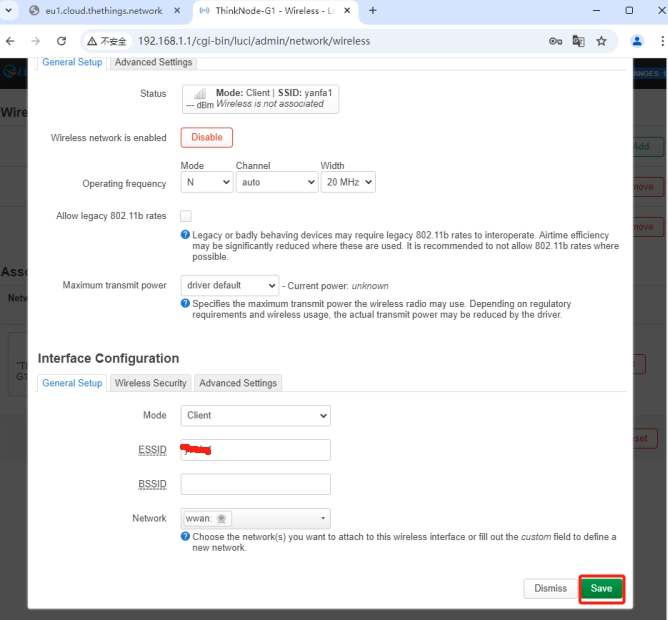

- Supports Various Connection Methods. Including Wi-Fi, Ethernet and other connection methods, providing users with diverse network access options.

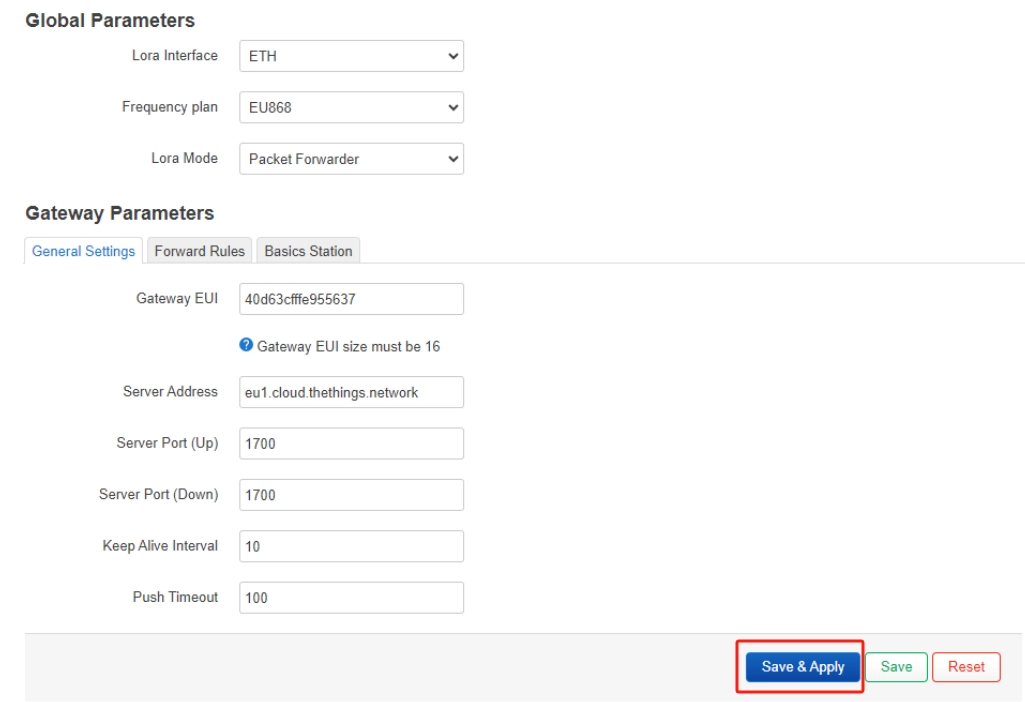

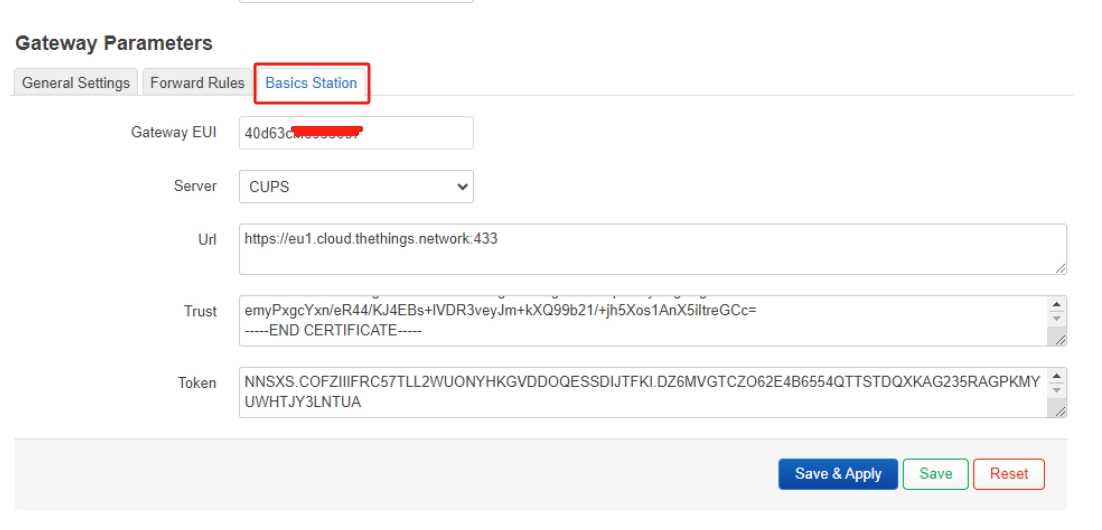

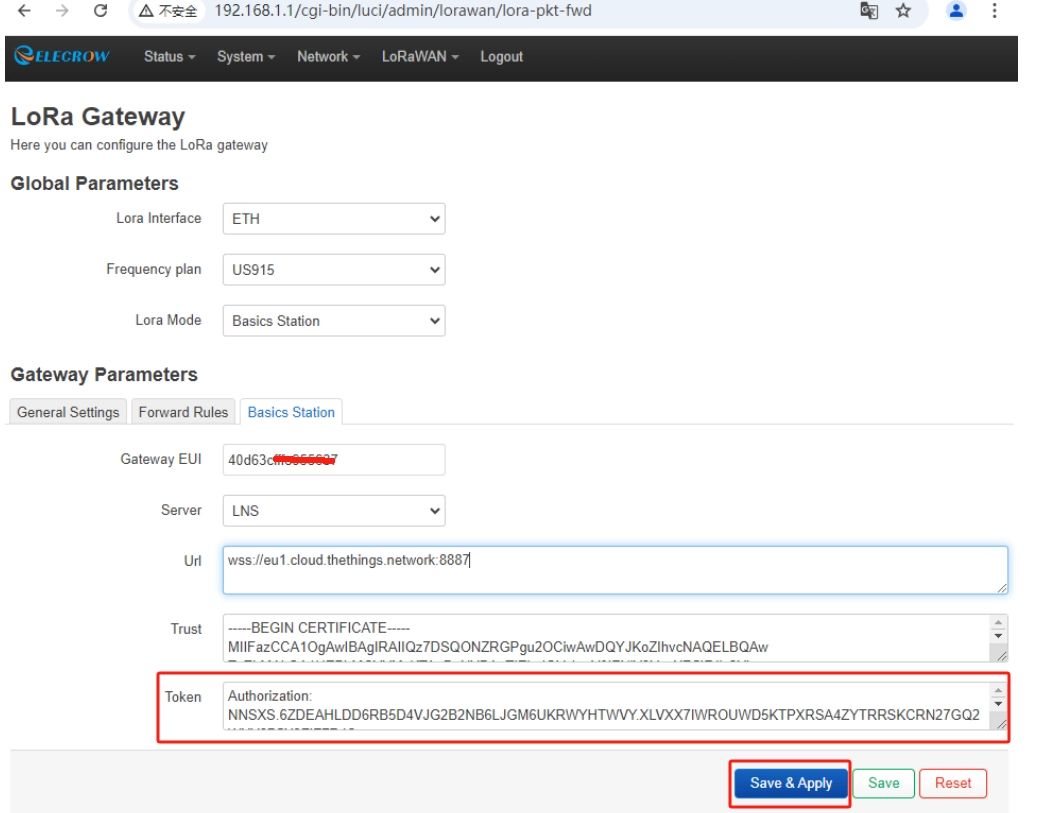

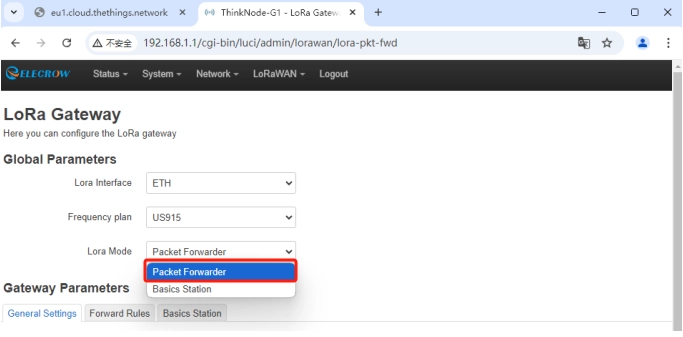

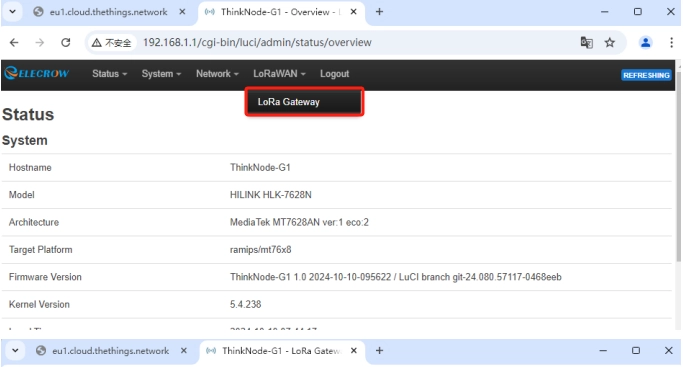

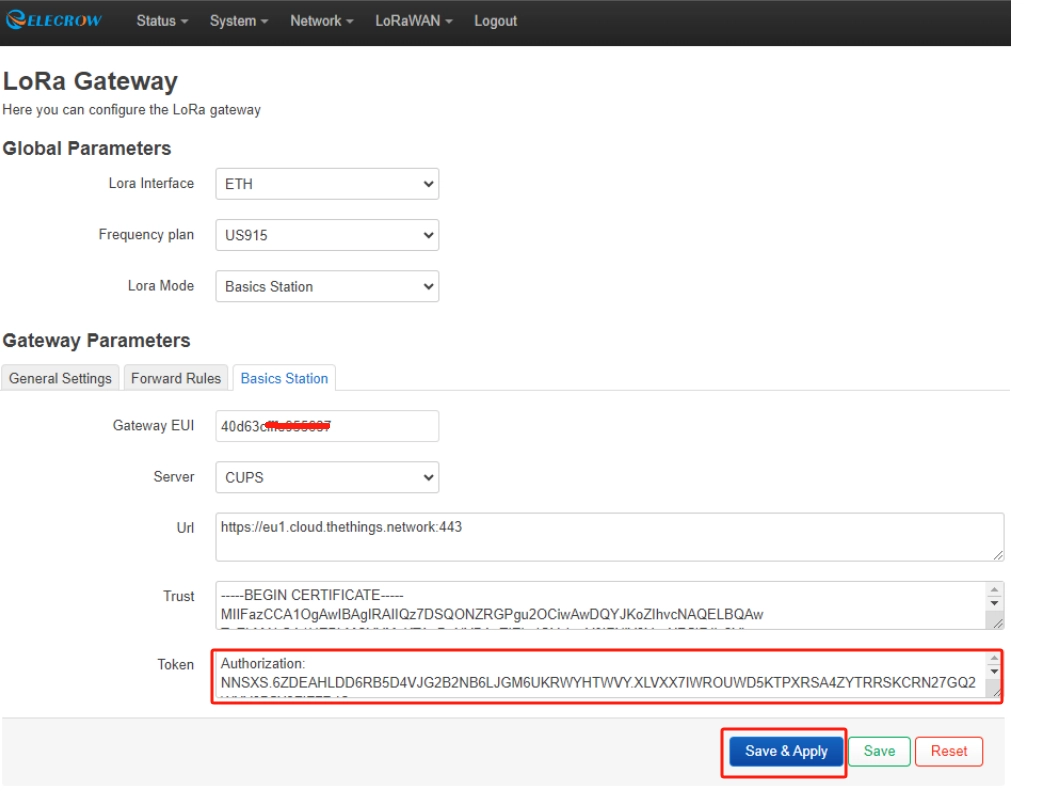

- User-Friendly Management Tools. The G1 gateway is equipped with professional management tools and cloud services, allowing users to easily configure through an intuitive Web interface, achieving rapid deployment and management, and offering an out-of-the-box experience.
Specification¶
| Processor | CPU/SoC | MT7628N（MIPS24KEc@580MHz CPU） |
|---|---|---|
| System Memory | 128 MB DDR2 | |
| Storage | 32MB Nor Flash | |
| Configuration software | WEB | |
| Communication | ||
| Wi-Fi | Supports IEEE 802.11 b/g/n wireless standards, built-in antenna | |
| Wired | Support IEEE 802.3, IEEE 802.3u wired standards, RJ45 (10M / 100M) | |
| Bluetooth-Compatible | Bluetooth-compatible dual-mode (BR/EDR+BLE) 5.0 BLE, built-in ceramic antenna | |
| LoRaWAN | Baseband chip | SX1302, using LR1302 baseband module |
| Channel | 8 Channels | |
| Node protocol | Supports Class A/Class B/Class C | |
| Frequency band | EU868/US915 | |
| Sensitivity | -125dBm 125KHz/SF7-139dBm 125KHz/SF12 | |
| Transmit power | Maximum 26 dBm | |
| Antenna | 1. Rubber stick antenna (matching), 3dBi gain, impedance 50 ohm;2. External antenna with base (optional), 3dBi gain, impedance 50 ohm; | |
| Reserve Interface | DC Socket | Power input, DC 12V - 2A |
| Ethernet | RJ45 (10M / 100 M) | |
| LoRa Antenna Socket | RP-SMA female socket | |
| GPS Antenna Socket | RP-SMA female socket | |
| Type-C Interface | Used for background control, connecting to the background panel configuration information or burning firmware, debugging | |
| Micro SD Card Slot | YES | |
| Nano SIM Card Slot | YES | |
| Reserve Indicator light | Device status light | YES |
| 4G | YES(Need to customize) | |
| WLAN | YES | |
| LoRa | YES | |
| PWR | YES | |
| Button | Reset Button | |
| Size | 140*140*38mm | |
| Case Material | ABS+PC(Case)、PC frosted (light guide) | |
| Power Input | 12V-2A | |
| Operating Temperature | -20℃~55℃ | |
| Storage Temperature | -30℃~70℃ |
