3.5 Inch 480x320 TFT Display with Touch Screen for Raspberry Pi

Description

It is the cutest, little display for the Raspberry Pi. It features a 3.5" display with 480x320 16-bit color pixels and a resistive touch overlay. It's designed to fit nicely not only to the Pi Model A or B but also works perfectly fine with the Model B+.

Model:RPA03510R

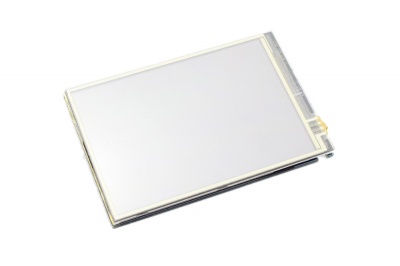

3.5 Inch 480x320 TFT Display with Touch Screen for Raspberry Pi.jpg

Alt text

Features

  • 480x320 resolution
  • Universal 3.5” Display for the Raspberry Pi
  • Compatible with Raspberry Pi A, B, A+, B+, and Pi2 versions
  • Powered not only from your computer, but also from your portable power
  • Adapt for Raspbian system

Specifications

  • LCD Type:TFT
  • LCD Interface:SPI
  • Touch Screen Type:Resistive
  • Touch Screen Controller:XPT2046
  • Colors:65536
  • Backlight:LED
  • Resolution:480*320 (Pixel)

Interface Function


Usage

When users connect the Raspberry Pi to use, they need to configure the official system. Or you can also burn the configured system image directly.
Tips:Basic for Raspbian Jessie with PIXEL (2017-04-10-raspbian-jessie.img)

Step 1：Download the Raspbian IMG https://www.raspberrypi.org/downloads/raspbian/

Step 2: Burn the system image If you don't know how to do that,you can refer to the Raspberry Pi office tutorial

Step 3: Open terminal and Download the driver on RPI

Run:

sudo git clone https://github.com/goodtft/LCD-show.git

Step 4: Install driver

Run:

cd LCD-show/
sudo chmod +x LCD35-show
sudo ./LCD35-show

Touch screen calibration

  • This LCD can be calibrated using a program called xinput_calibrator
  • **Install it with the commands: **
    cd Elecrow-LCD35<br></br>
sudo dpkg -i -B xinput-calibrator_0.7.5-1_armhf.deb
  • Click the Men button on the task bar, choose Preference -> Calibrate Touchscreen.
  • Finish the touch calibration following the prompts. Maybe rebooting is required to make calibration active.
  • You can create a 99-calibration.conf file to save the touch parameters (not necessary if file exists).
    /ect/X11/xorg.conf.d/99-calibration.conf
  • Save the touch parameters (may differ depending on LCD) to 99-calibration.conf, as shown in the picture:

Install Soft Keyboard
