Crowbits-IR Temperature Sensor

Description

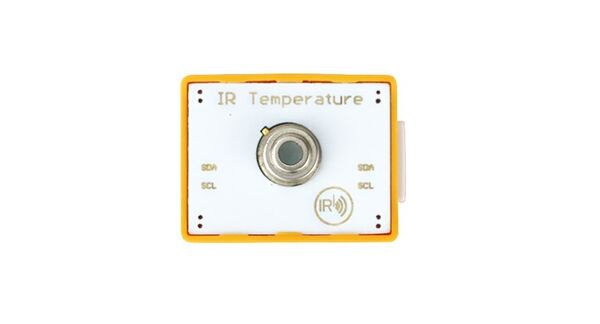

This IR temperature sensor is a non-contact temperature measure model by using the MLX90614, which one is in small size and low cost with a measurement resolution of 0.02℃. Thanks to its low noise amplifier, 17-bit ADC and powerful DSP unit, high accuracy and resolution of the thermometer are achieved.

Crowbits-IR Temperature Sensor 1.jpg

Features


  • High precision
  • Easy to use

Specification


  • Interface Type: I2C
  • Operating Voltage: 3.3V DC
  • Dimensions: 31.5(L)*24.5(W)*13(H)mm

Usage


The following sketch demonstrates a simple application of the module.

1. You need to prepare a Crowbits motherboard, such as Crowbits-UNO board.

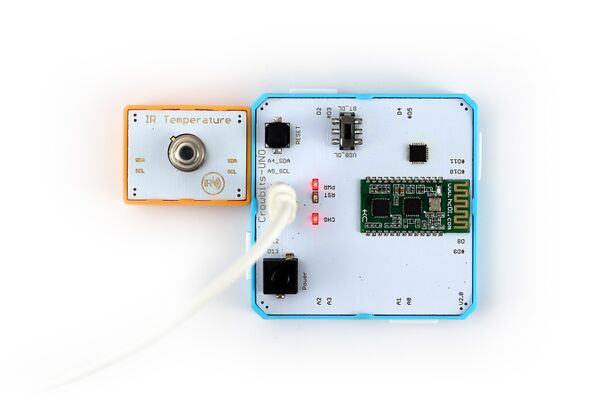

2. Connect the module to the I2C interface on the Crowbits-UNO board, as shown in the figure:

Crowbits-IR Temperature Sensor-Wiki 1.JPG

3. Download the library “I2Cmaster”. Unzip and put it in the libraries file, for example: C:\Program Files (x86)\Arduino\libraries.

4. Upload the following code to the Crowbits-UNO board.

#include <i2cmaster.h>


void setup(){
    Serial.begin(9600);
    Serial.println("Setup...");

    i2c_init(); //Initialise the i2c bus
    PORTC = (1 << PORTC4) | (1 << PORTC5);//enable pullups
}

void loop(){
    int dev = 0x5A<<1;
    int data_low = 0;
    int data_high = 0;
    int pec = 0;

    i2c_start_wait(dev+I2C_WRITE);
    i2c_write(0x07);

    // read
    i2c_rep_start(dev+I2C_READ);
    data_low = i2c_readAck(); //Read 1 byte and then send ack
    data_high = i2c_readAck(); //Read 1 byte and then send ack
    pec = i2c_readNak();
    i2c_stop();

    //This converts high and low bytes together and processes temperature, MSB is a error bit and is ignored for temps
    double tempFactor = 0.02; // 0.02 degrees per LSB (measurement resolution of the MLX90614)
    double tempData = 0x0000; // zero out the data
    int frac; // data past the decimal point

    // This masks off the error bit of the high byte, then moves it left 8 bits and adds the low byte.
    tempData = (double)(((data_high & 0x007F) << 8) + data_low);
    tempData = (tempData * tempFactor)-0.01;

    float celcius = tempData - 273.15;
    float fahrenheit = (celcius*1.8) + 32;

    Serial.print("Celcius: ");
    Serial.println(celcius);

    Serial.print("Fahrenheit: ");
    Serial.println(fahrenheit);

    delay(1000); // wait a second before printing again
}

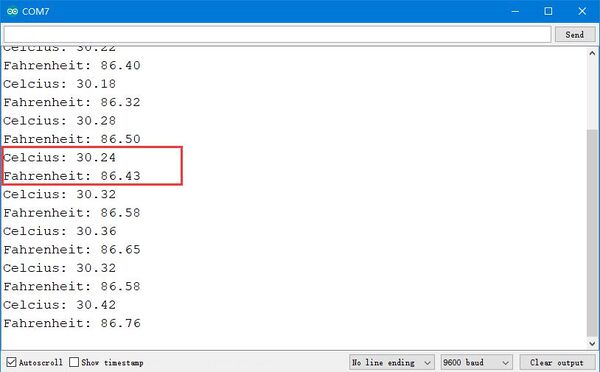

5. After the upload is successful, open the serial port monitor, the baud rate is set to 9600. The serial port will print out temperature information.

Crowbits-IR Temperature Sensor-Wiki 2.jpg
