Crowtail- 1.3 Inch OLED v1.0

Bold text Description

Crowtail- OLED is constructed from 128 x 64 dot matrix OLED module. The display offers high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low power consumption.

Model: CRT01112O

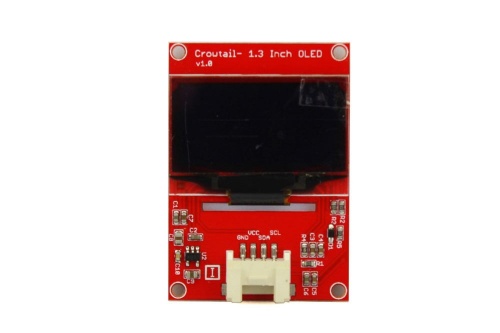

Crowtail- 1.3 Inch OLED v1.0.jpg

Features

Connection Mode:I(IIC)

Voltage: 5V

Display Color:Blue/Black

Resolution:128x64

Interface:I2C

Wide range of working temperature: -20°C~70°C

Dimensions(mm):50.0(L)x35.0(W)x6.8(H)

Usage

1.Hardware connection

Connect the Crowtail- 1.3 Inch OLED to I port.

2.Connect the board to PC using USB cable.

3.Download the library OLED library;Unzip it into the libraries file of Arduino IDE by the path: ..\arduino-1.0.1\libraries.

4.Open the code directly by the path:File -> Example ->U8glib->Ele_0_96_12864.

#include "U8glib.h"
U8GLIB_SSD1306_128X64 u8g(U8G_I2C_OPT_NONE);
void drawColorBox(void)
{
 u8g_uint_t w,h;
 u8g_uint_t r, g, b;
 w = u8g.getWidth()/32;
 h = u8g.getHeight()/8;
 for( b = 0; b < 4; b++ )
   for( g = 0; g < 8; g++ )
     for( r = 0; r < 8; r++ )
     {
       u8g.setColorIndex((r<<5) |  (g<<2) | b );
       u8g.drawBox(g*w + b*w*8, r*h, w, h);
     }
}
void drawLogo(uint8_t d)
{
 u8g.setFont(u8g_font_gdr25r);
 u8g.drawStr(8+d, 30+d, "E");
 u8g.setFont(u8g_font_gdr25r);
 u8g.drawStr(30+d,30+d,"l");
 u8g.setFont(u8g_font_gdr25r);
 u8g.drawStr(40+d,30+d,"e");
 u8g.setFont(u8g_font_gdr25r);
 u8g.drawStr(55+d,30+d,"c");
 u8g.setFont(u8g_font_gdr25r);
 u8g.drawStr(70+d,30+d,"r");
 u8g.setFont(u8g_font_gdr25r);
 u8g.drawStr(85+d,30+d,"o");
 u8g.setFont(u8g_font_gdr25r);
 u8g.drawStr(100+d,30+d,"w");
}

void drawURL(void)
{
 u8g.setFont(u8g_font_4x6);
 u8g.drawStr(35,54,"www.elecrow.com");

}
void draw(void) {
 if ( u8g.getMode() == U8G_MODE_R3G3B2 ) {
   drawColorBox();
 }
 u8g.setColorIndex(1);
 if ( U8G_MODE_GET_BITS_PER_PIXEL(u8g.getMode()) > 1 ) {
   drawLogo(2);
   u8g.setColorIndex(2);
   drawLogo(1);
   u8g.setColorIndex(3);
 }
 drawLogo(0);
 drawURL();

}

void setup(void) {
}

void loop(void) {
 // picture loop
 u8g.firstPage();
 do {
   draw();
 u8g.setColorIndex(1);
 } while( u8g.nextPage() );
 // rebuild the picture after some delay
 delay(200);
}

5.Upload the Code,you shoule see the display of OLED.

1.3 Inch OLED v1.0.jpeg
