3.5 Inch 480*320 SPI TFT LCD Module with ILI9488 Driver|With Touch Function

Description


This 3.5-inch SPI interface TFT LCD module features the high-performance ILI9488 driver chip, supporting a resolution of 480x320 and a 65K color display. It communicates via the SPI protocol, requiring only a few IO ports to power on. The module an SD card slot and offers a GPIO expansion interface, lowering the barrier for embedded development. The touch functionality is optional and is compatible with mainstream development boards such as STM32, and Arduino. It is suitable for applications in industrial HMI, smart home control panels, portable devices, and more.

Moreover, we provide comprehensive example programs and low-level driver technical support to help developers get started quickly and easily implement project development and applications.

For customized requirements (based on MOQ), please contact us at service@elecrow.com.

Model DLS24035B

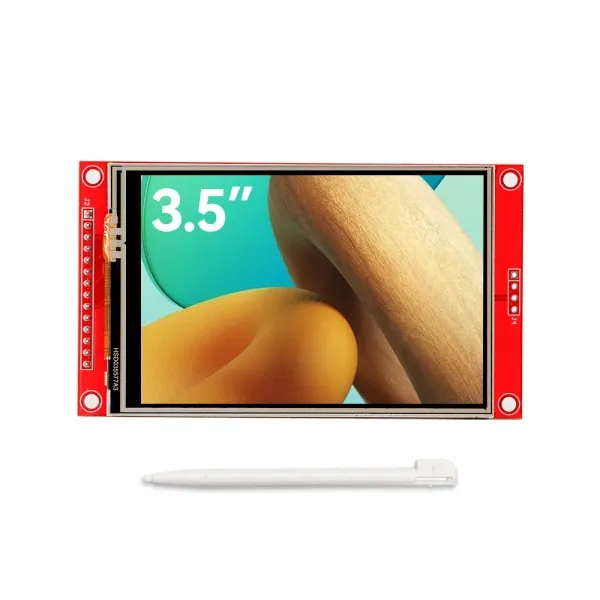

3.5inch_tft_spi_module_with_touch_function

Feature


  • 3.5-inch color screen with a resolution of 480*320, supports 16BIT RGB 65K color display for rich display colors;
  • Touch function is optional;
  • Uses the SPI serial bus, requiring only a few IO pins to power on the display;
  • Equipped with an SD card slot;
  • Provides a wide range of example programs and low-level driver technical support.

Specification


Size 3.5 inch
Screen Type TFT
Resolution 480*320 (Pixel)
Color RGB 65K color
Driver IC ILI9488
Interface 4-wire SPI interface
VCC Power Voltage 3.3V~5V
Logic IO Port Voltage 3.3V(TTL)
Operating Temperature -20℃~60℃
Storage Temperature -30℃~70℃
Active Area 48.96x73.44(mm)
Module Size 56.34x98(mm)

Resources


How to buy


Please visit this page to purchase 3.5 Inch 480*320 SPI TFT LCD Module Display.

Support


If you have any problem about how to use it, you can connect to us at the bottom-right of bazzer or contact to techsupport@elecrow.com to get technology support.
