ThinkNode-M4 Power Bank LoRa Device with Meshtastic Function Powered By nRF52840¶
Description¶
ThinkNode M4: Balancing communication and power needs¶
How to Combine Meshtastic Devices with Power Banks? ThinkNode M4 provides the answer!
ThinkNode M4 is a groundbreaking multifunctional power bank that not only continues the portable power support function of traditional power banks, but also innovatively integrates Meshtastic communication module, LoRa long-distance wireless communication technology and a high-precision GPS module, providing users with a new decentralized communication and positioning solution.
As a Meshtastic device, it provides users with high-precision, low-power positioning and communication solutions.
It has built-in Semtech's LR1110 (supporting 868-915 MHz frequency band), Nordic's nRF52840 and GPS modules to ensure the performance and reliability of the device. Meshtastic devices support distributed Mesh networks without relying on gateways or the Internet. Devices are nodes to each other and can automatically expand coverage. It supports two-way communication, including real-time text messaging and location sharing, and can meet diverse communication needs, whether it is point-to-point or broadcast communication. Meshtastic is particularly suitable for field operations, disaster emergencies, and other network-free environments, providing users with stable and reliable communication guarantees.
For customized requirements (based on MOQ), please contact us at service@elecrow.com.
Model LMM14004D1
Hardware Overview¶
Specification¶
| Power Bank | |
|---|---|
| Fast charging protocol | PS output;QC2.0 output;QC3+/QC3.0 output;PD3.1 input/output;SCP/FCP/AFC input/output; |
| Integrated | High-precision electricity meter, scene control management |
| Switch charging | Support single-cell charging, including trickle current, constant current, constant voltage, charge cutoff, and recharge complete charging cycle management;Support 4.2V/4.3V/4.35V/4.4V/4.45V ternary batteries and 3.6V/3.65V lithium iron phosphate batteries;Support I2C to set charging current;Support charging temperature loop control |
| Synchronous Boost | Output power up to 22.5W;Support I2C to set output voltage and output current limit;Automatic load detection / light load detection;Support discharge temperature loop control; |
| LoRa Communication | |
| CPU/SoC | nRF52840-QIAA (Nordic) |
| System Memory | 256 KB RAM |
| Storage | 3 MB Flash memory (external 2M Flash chip) |
| Firmware | Meshtastic firmware compatible, LoRa Tracker function compatible(Optional) |
| LoRa Transceiver | Semtech LR1110 |
| Charge and discharge function (charge three units at the same time) | |
| Type-C port | Charge and discharge function:Input: 5V/3A, 9V/2A, 12V/1.5AOutput: 5V/3A, 9V/2.22A, 12V/1.67A |
| Type-C Cable | Discharge function:Output: 5V/3A, 9V/2A, 12V/1.5A |
| Wireless charging | Discharge function:Output: 5W, 7.5W, 10W, 15W |
| Charging time | 3~4 Hour |
| Wireless Communication | |
| Bluetooth | Bluetooth Low Energy and Bluetooth 5.4,internal antenna (phone configuration) |
| LoRa | LR1110 LoRa Transceiver, US 915MHz / EU 868MHz (Internal antenna） |
| Battery | |
| Type | 18650 Lithium-ion Battery |
| Nominal capacity | 7000mAh (can be taken on airplanes) |
| Power | 3.65V/25.5Wh |
| Rated capacity | 3800mAh (5V/3A) |
| Conversion Rate | More than 74% |
| Hardware | |
| Power button (power bank) | Touch a button to wake up the device or turn on the light |
| LoRa function Button | Touch a button to enable/disable LoRa function and Bluetooth configuration device parameters. |
| Emergency Lights | Built-in LED strong light, three lighting effects (lighting, strong light, SOS flashing) |
| Charging cable | Comes with dual cables (Type-C) |
| Magnetic function | Comes with a magnetic ring, compatible with Apple's MagSafe charging structure |
| GPS positioning | Support GPS, BeiDou, GLONASS, QZSS, built-in ceramic antenna |
| Protection/SOS function | Yes |
| Other | |
| Sensor | Temperature and humidity sensors and a six-axis gyroscope |
| Power Input | 5~12V, Type-C interface |
| Power consumption | Working static power consumption: 45mA;Sleep power consumption: 55uA(LORA module: 15.95uA, power bank module: 40uA)Maximum working current: Send 175mA, receive 54mA |
| Storage Temperature | -20~45 °C |
| Size | 87.3*67.7*28mm |
| Enclosure | ABS fireproof plastic+PC+TPE |
| Using Method | Magnetic, handheld, lanyard |
| Weight | 190g |
Usage¶
Conducting hiking expeditions and scientific sampling activities in remote mountain valleys. The team utilised nodes equipped with ThinkNode M4 devices as Meshtastic relays to facilitate information transmission and location sharing. The extended battery life provided by the large-capacity batteries ensured reliable communication support for the team.¶
The following outlines the procedure for transmitting signals to the designated relay point.¶
Prepare two mobile phones with Meshtastic APP installed and two thinknode M5\M1\M2 devices.
Android App(Version 2.6.30)¶

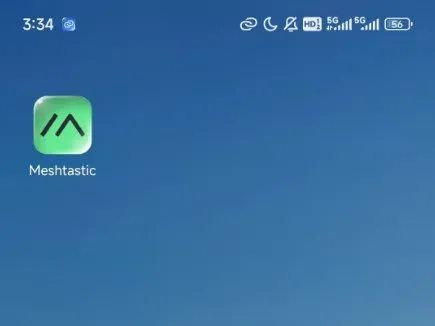

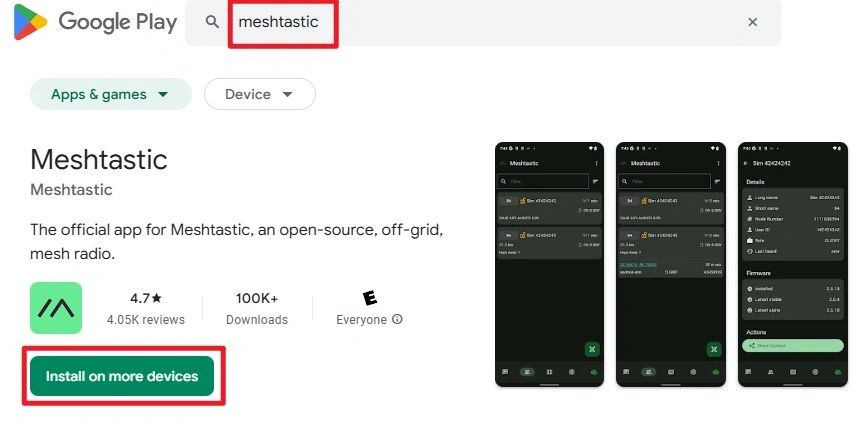

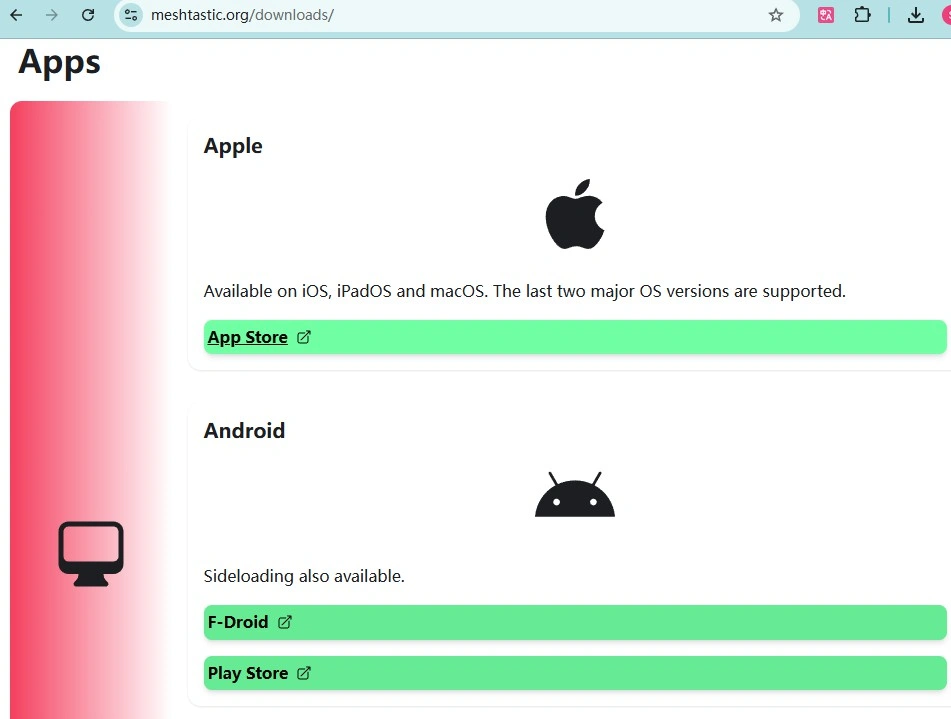

First go to the app store to download and install the Meshtastic APP
Meshtastic APP Usage:¶
Same settings on the receiving side as on the transmitting side¶

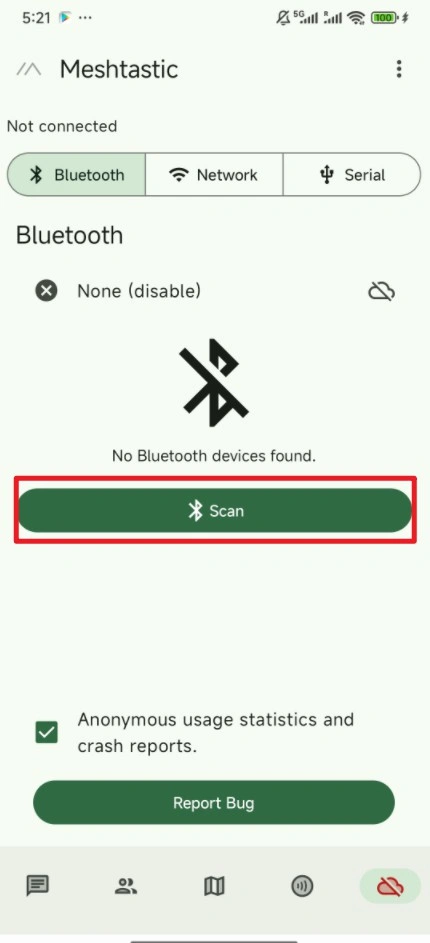

After opening the application, tap ‘Scan’ and select the corresponding Meshtastic device to connect.

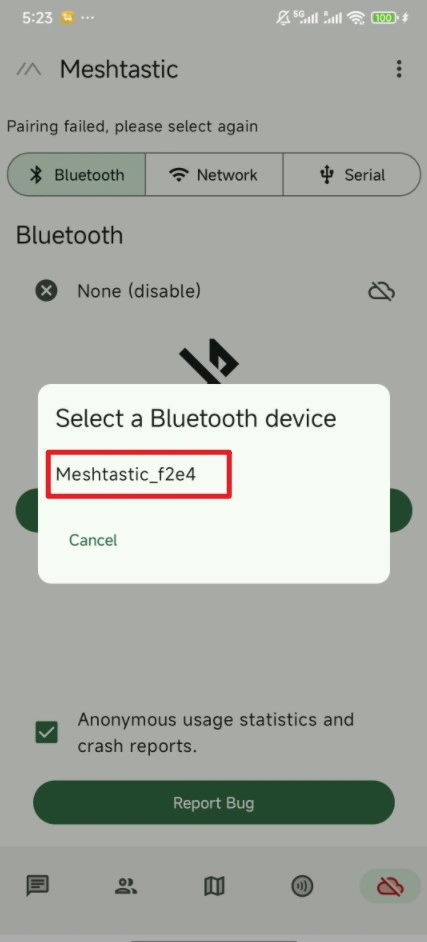

When the Meshtastic_xxxx device is searched, tap to enter pairing mode.

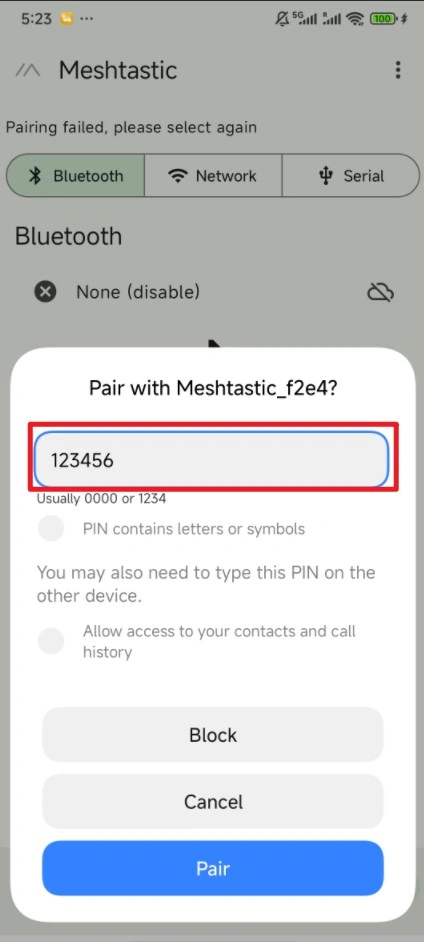

Enter this code(123456) on your cell phone(The default code for the ThinkNode M6 is 123456.).
Set LoRa frequency: Tap the settings icon, select ‘Radio Configuration’, then tap the ‘LoRa’ option. Scroll down to the “Add” column and enter the required value in the ‘Coverage Frequency (MHz)’ field corresponding to the desired frequency.
If two devices want to communicate, they need to join to the same channel, this time you need to select the fourth of the five options above, the other end of the phone needs to join to the same channel by scanning the code or entering the link, the channel can be customized name and so on.¶

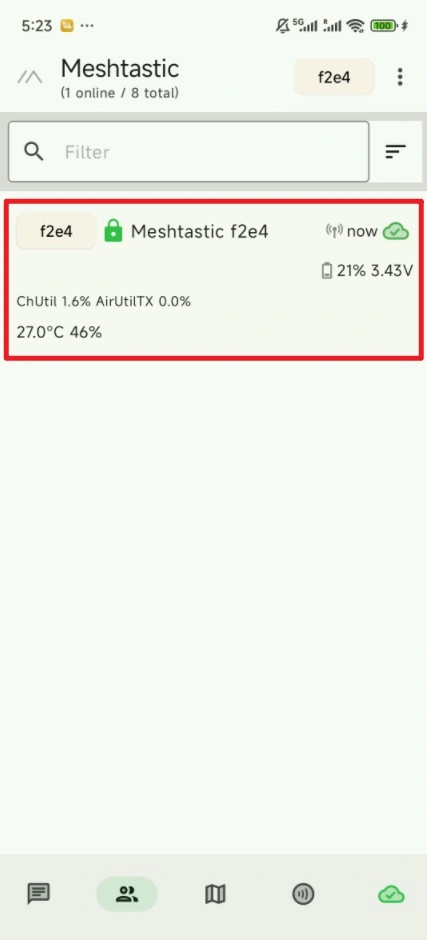

After joining, the two devices can now chat in the first screen by selecting Group Chat.
iOS App：¶
Same settings on the receiving side as on the transmitting side¶
1)Open the app, tap Bluetooth on the home page and see the device you want to connect. Click on Pairing.
The default code for the ThinkNode M6 is 123456.
2)When the Meshtastic_xxxx device is searched, tap to enter pairing mode.
3)After successful Bluetooth pairing, You need to go to Settings and click on Lora Settings.
4) Set lora Region. and then scroll down to set the frequency. consistent with the previous settings for the region. Finally, check ignore MQTT and save.
5)Go to the information page, select a channel and a QR code will appear, use another device to scan this QR code to enter.
6)Join and start sending or receiving messages.
Burning Firmware¶
ClickMeshtastic firmware
1,Select the corresponding firmware.
2, follow the steps to download the firmware.
How to buy¶
Please visit this page to purchase ThinkNode-M4 Power Bank LoRa Device with Meshtastic.
Support¶
If you have any problem about how to use it, you can connect to us at the bottom-right of bazzer or contact to techsupport@elecrow.com to get technology support.
