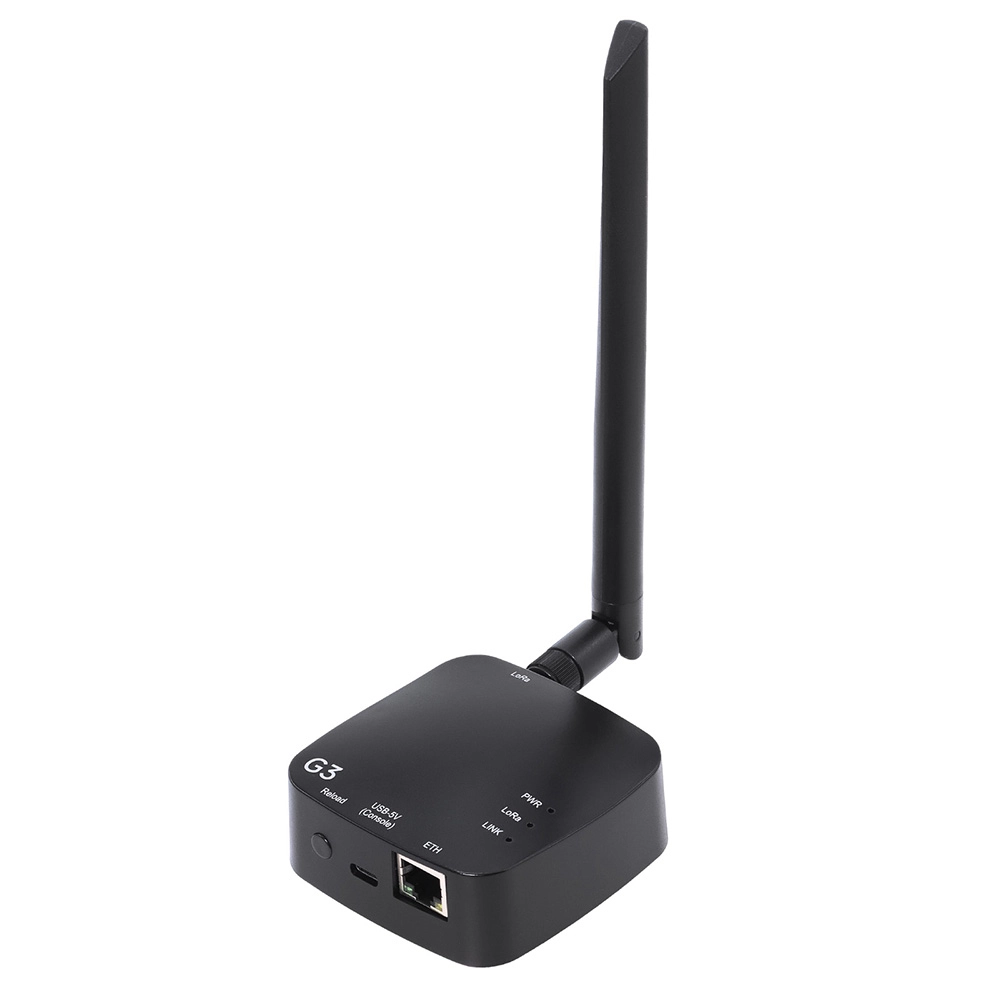

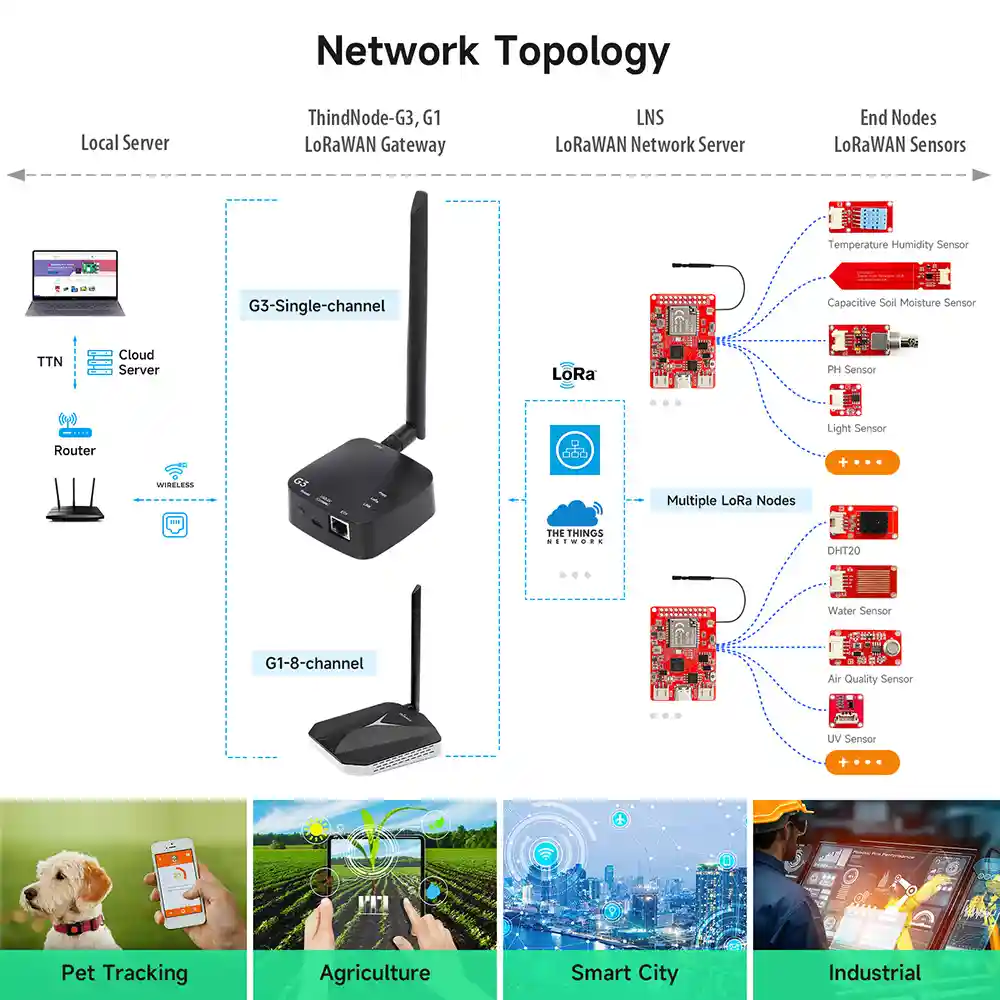

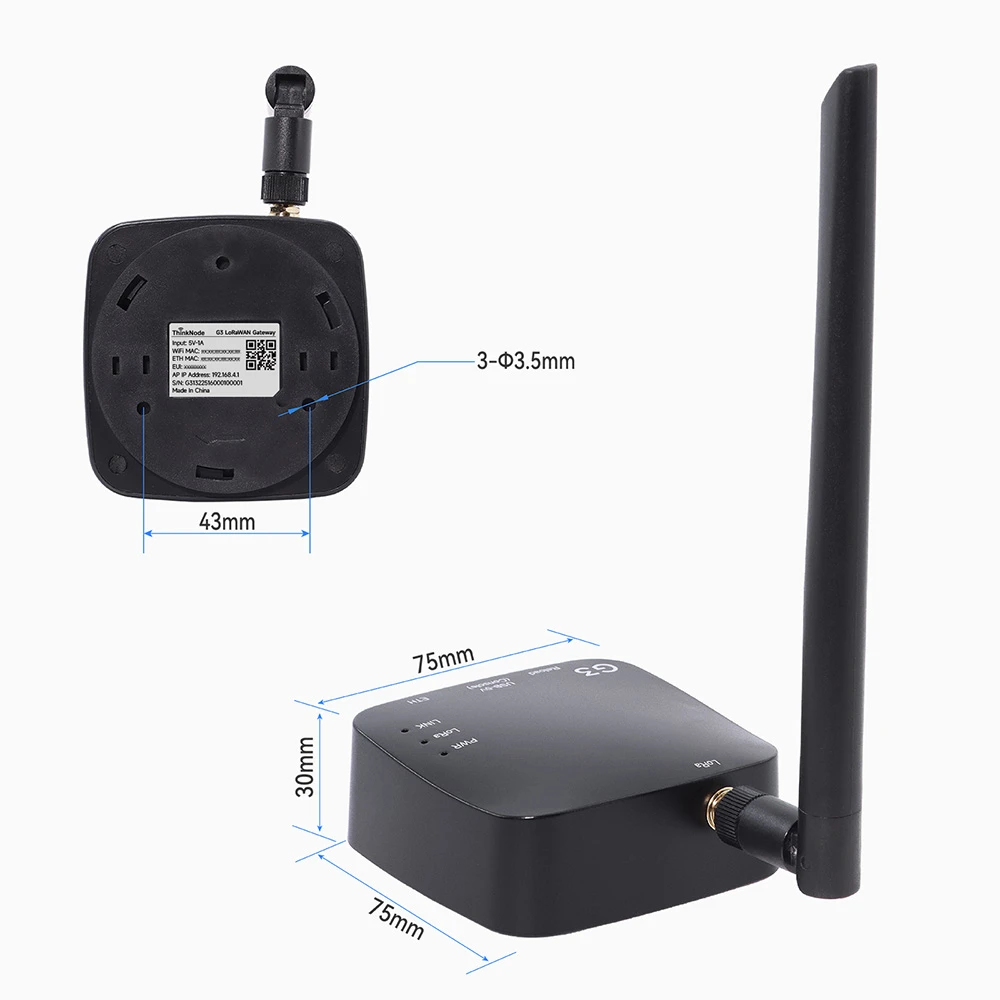

ThinkNode G3-Single Channel LoRaWAN Gateway ESP32-S3 Chip Smart Home, Smart IoT Solutions

Model ILM13103D

thinknode_g3_lorawan_gateway

Example: The LR1262 Node Board uploads data to TTN server via Thinknode G3

Communicate with the gateway through the created TTN application node and upload the node-gateway communication data to the TTN server

Prerequisites:

1. The gateway has been created in TTN, and the Thinknode G3 gateway has been connected and operated normally.

2. Node applications (OTAA/ABP) corresponding to the band range of the gateway have been created in TTN

hardware preparation：

1.LR1262 Node Board

2.PC

3.TYPE-C cable

4.Thinknode G3

thinknode_g1

Getting Started Quickly with the Gateway

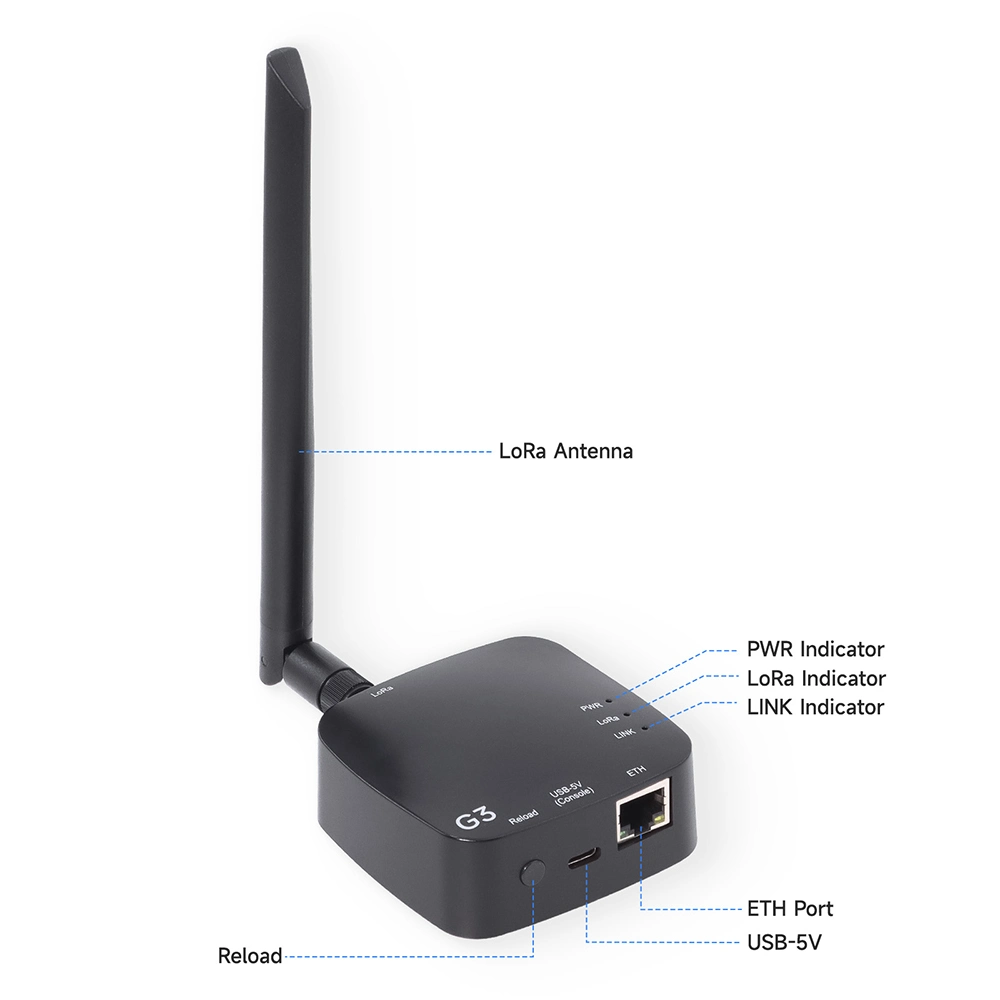

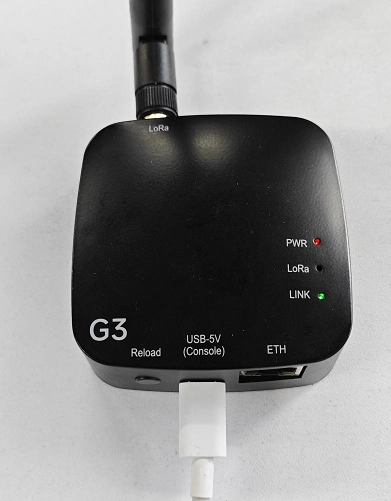

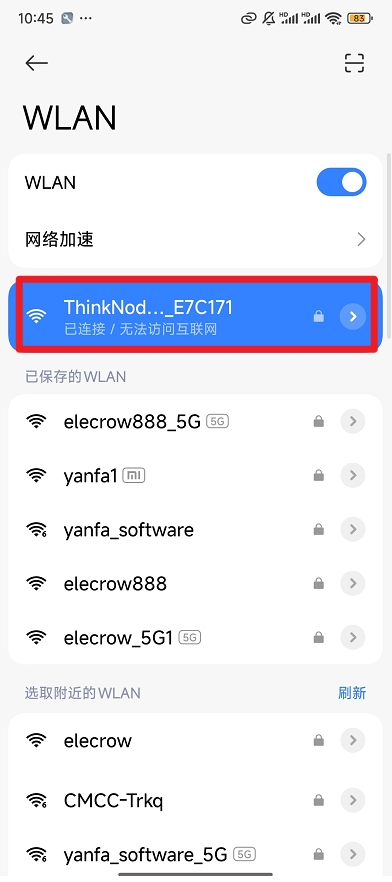

1、 Use type-c 5v power supply, connect the antenna to choose the corresponding frequency antenna, 868MHZ or 915MHZ antenna. The physical wiring diagram is as follows:

1_thinknode_g1

2_thinknode_g1

3、 Open a browser and enter 192.168.41 to access the gateway configuration page:

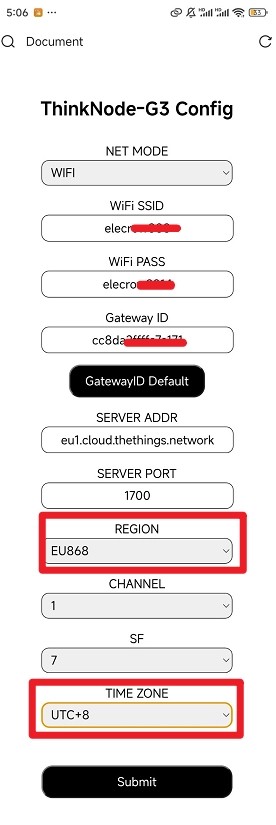

Wifi Setup Steps：

3_thinknode_g1

  • NET MODE:WIFI
  • WIFl SSID: Enter the Wi-Fi name you want to connect to (non-5GHz Wi-Fi network)
  • WIF| PASS: Enter the password for the Wi-Fi network you want to connect to
  • Gateway lD: xxxxxxffffexxxxx
  • SERVER ADDR: eu1.cloud.thethings.network (default)
  • SERVER PORT:1700(default)
  • REGION: EU868/US915/AU915(Select according to the actual frequency band)
  • CHANNEL: (Choose according to the frequency of the connected device)（Default 0）
  • SF:**(Choose according to the frequency of the connected device)(Select “12” for EU868MHZ, ‘10’ for US915MHZ, and “10” for AU915MHZ.)
  • TIME ZONE: UTC（Select the utc time zone of your location）

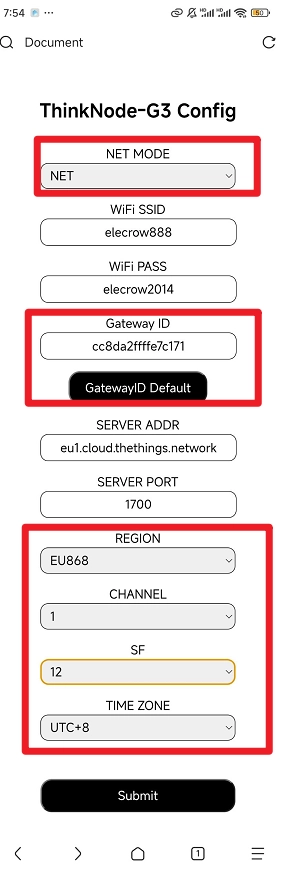

Ethernet Setup Steps：

4_thinknode_g1

5_thinknode_g1

  • NET MODE:NET
  • Gateway lD: xxxxxxffffexxxxx
  • SERVER ADDR: eu1.cloud.thethings.network (default)
  • SERVER PORT:1700(default)
  • REGION: EU868/US915/AU915(Select according to the actual frequency band)
  • CHANNEL: (Choose according to the frequency of the connected device)（Default 0）
  • SF:(Choose according to the frequency of the connected device)(Select “12” for EU868MHZ, ‘10’ for US915MHZ, and “10” for AU915MHZ.)
  • TIME ZONE: UTC（Select the utc time zone of your location）

1_thinknode_g1

Connecting to the TTN

There are two ways to connect to the Things Network: the Packet forward and the Basics™ Station. choose one of the ways to connect to the gateway. the ThinkNode gateway is configured with Packet forward by default.

The Semtech UDP packet forward is the original LoRaWAN® packet forward, which connects to the server via the Semtech UDP protocol.

The LoRa Basics™ Station is the preferred way to connect the gateway to The Things Stack.

 Connecting via Packet Forwarder The Semtech UDP Packet Forwarder is the original LoRaWAN® packet forwarder that connects to the server via the Semtech UDP protocol.

TTN Configuration

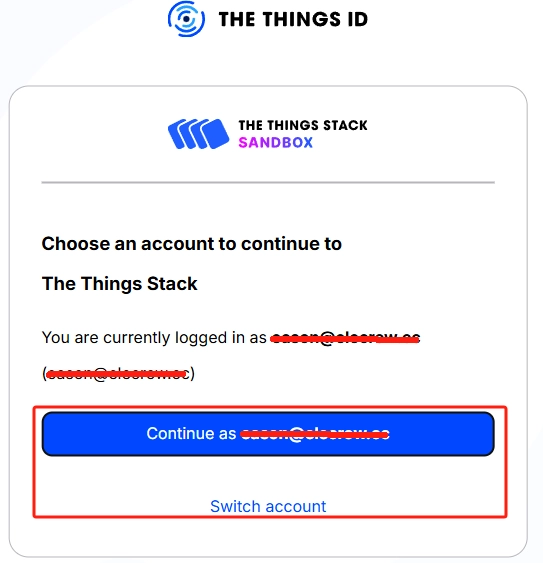

Step 1: Log in to The Things Stack (console.cloud.thethings.network). If you do not have a TTN account, register first.

thinknode_g1

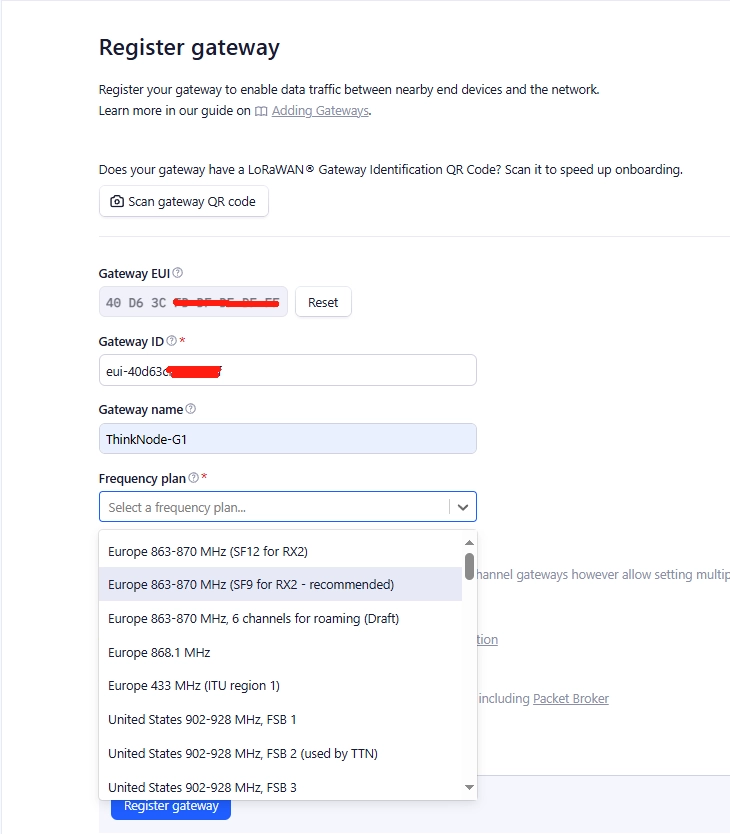

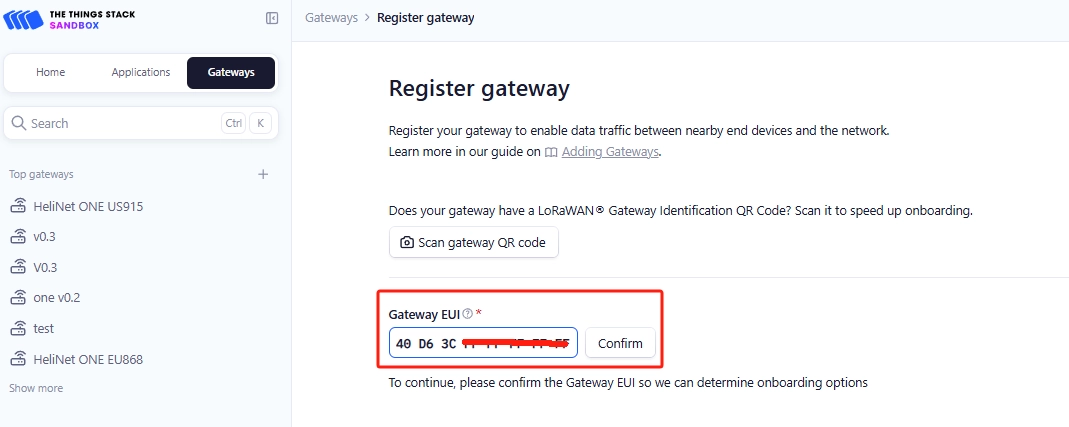

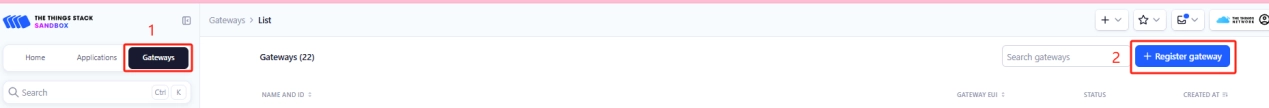

Step 2: Register the Gateway

thinknode_g1

Gateway EUI: The 64-bit Extended Unique Identifier of the gateway. The Gateway EUI can be found on a tab on the enclosure or on the LoRa Gateway interface in the Web UI. Instructions on how to access the gateway through the Web UI can be found in the Quick Start Guide. As shown below, type Gateway EUI and click Confirm to continue.

thinknode_g1

Gateway ID: Usually consists of letters (eui-“Gateway EUI”) (the ID must contain only lowercase letters, numbers, and dashes) Note that the letters in “Gateway EUI” must be converted to lowercase .

Gateway Name: The name of the Gateway Gateway name: Name of the gateway Frequency plan: Select the appropriate frequency according to your gateway version

thinknode_g1

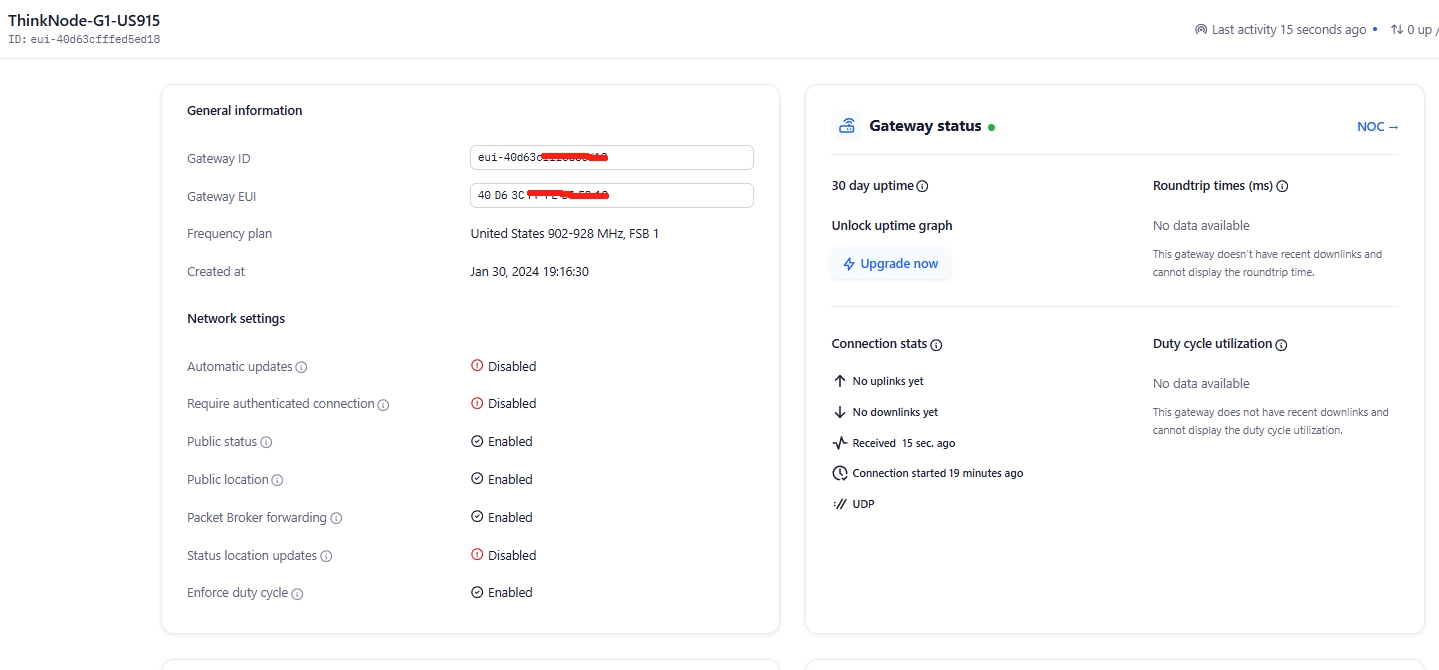

After successful registration, you can view the gateway in the overview.

thinknode_g1

Creating TTN Node Applications

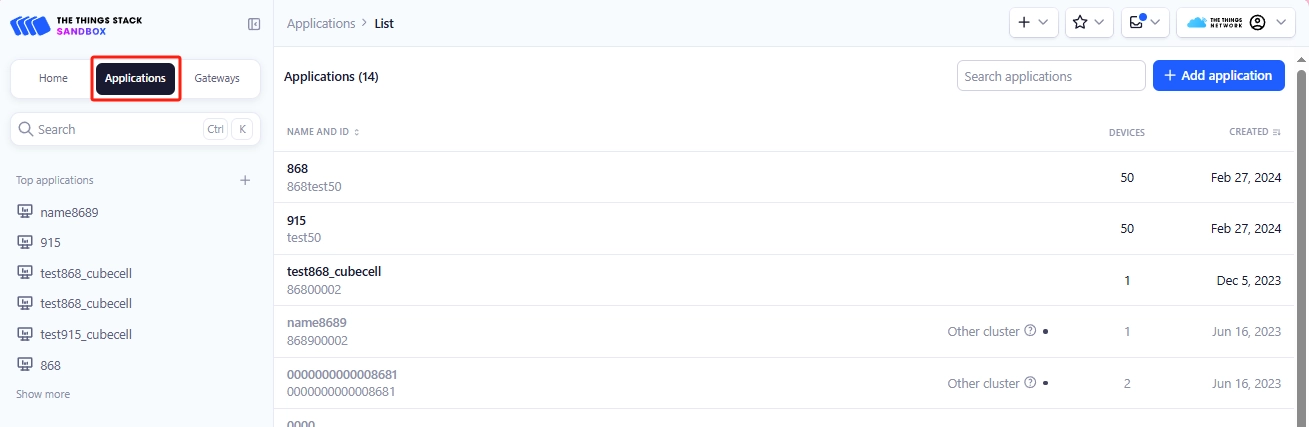

Step 1: Log in to your registered TTN account, in the TTN server interface, click Applications.

thinknode_g1

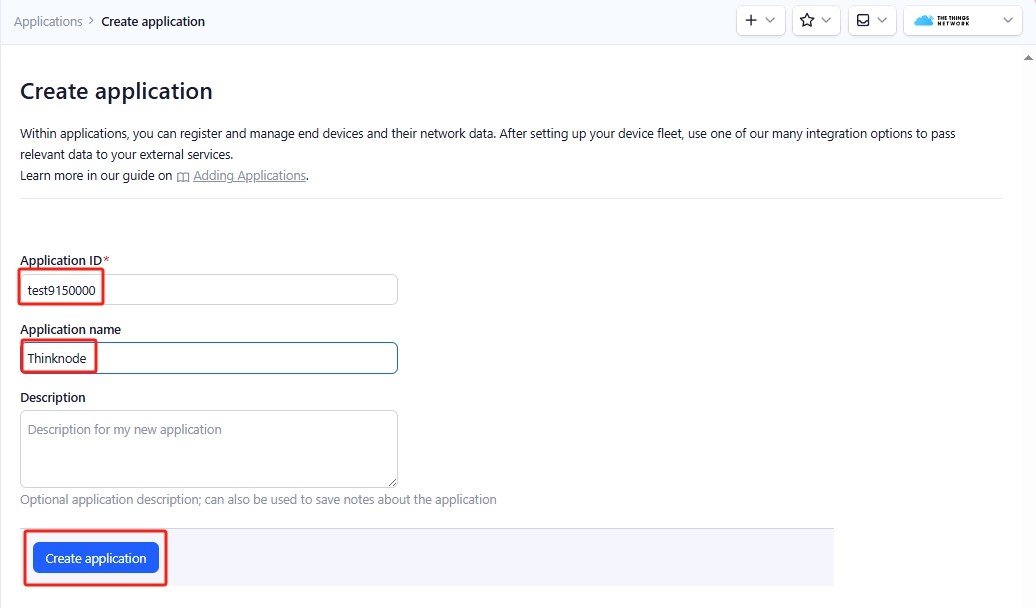

Step 2: Click Add applications, start to add node applications, enter the Applications ID, Applications name, and then click Create applications.

thinknode_g1

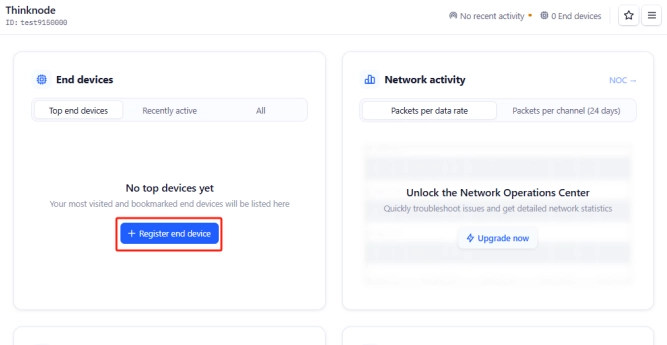

Step 3: Enter the application overview page, click “Register end device” in the lower right corner to register a new device in TTN platform.

thinknode_g1

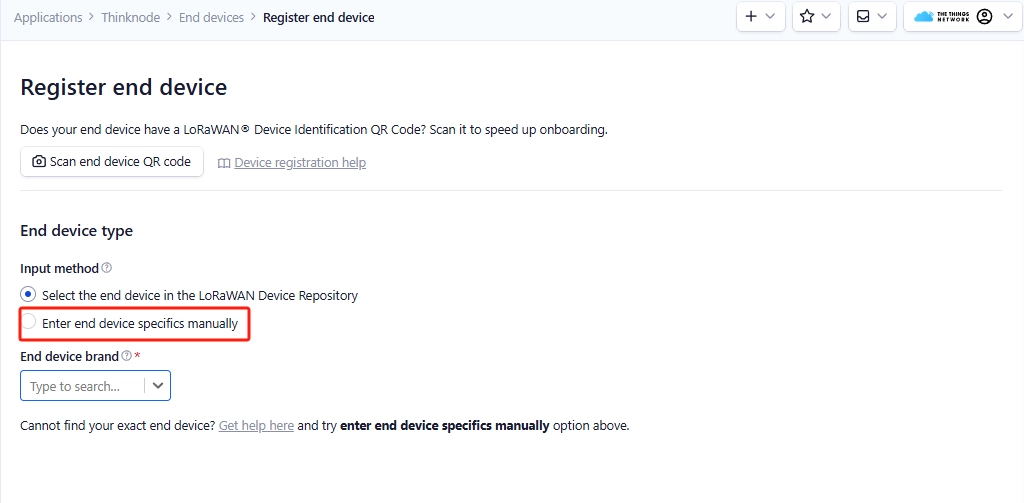

Step 4: In the “Register end device” page, click Enter end device specifics manually option.

thinknode_g1

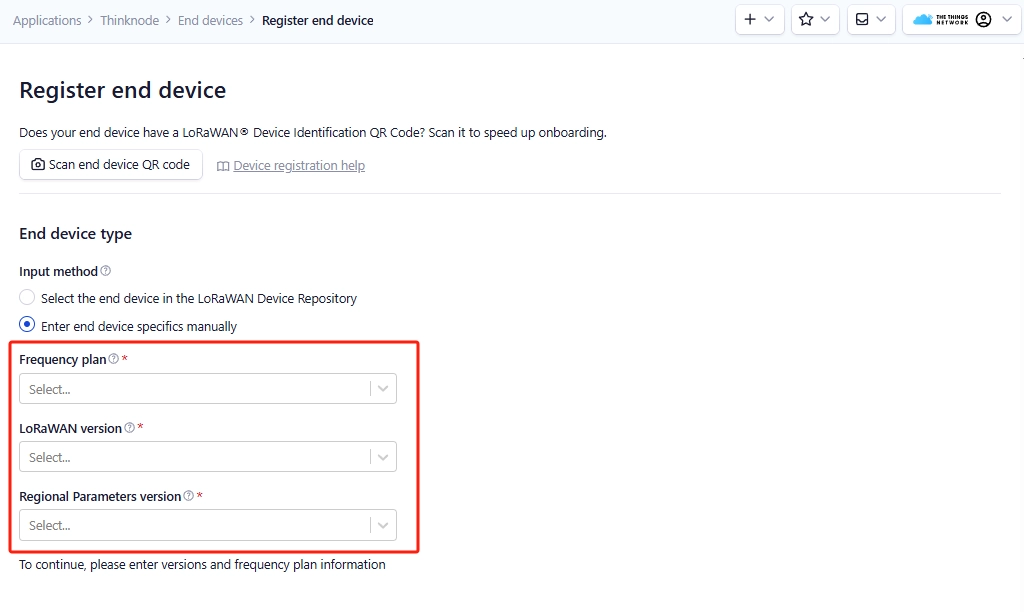

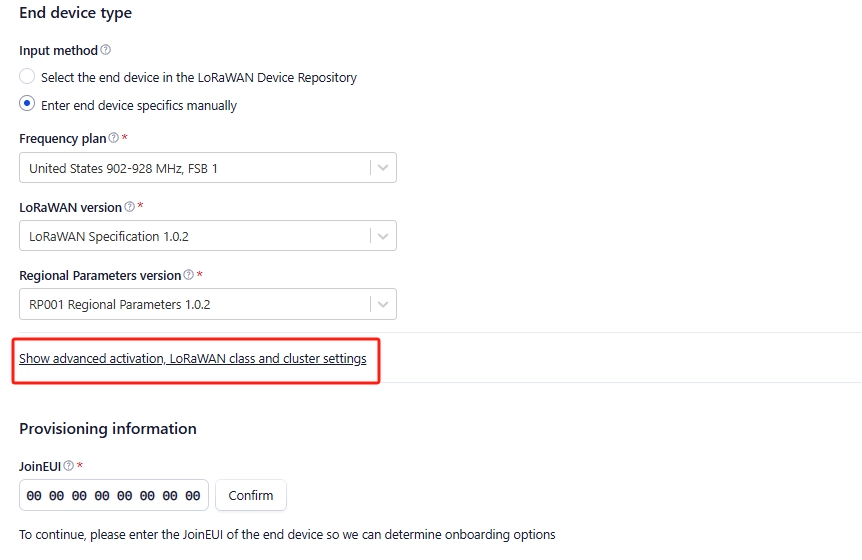

Step 5: Set the Frequency plan, LoRaWAN version and Regional Parameters version to JoinEUI (APPEUI).

Note: JoinEUI means AppEUI.

thinknode_g1

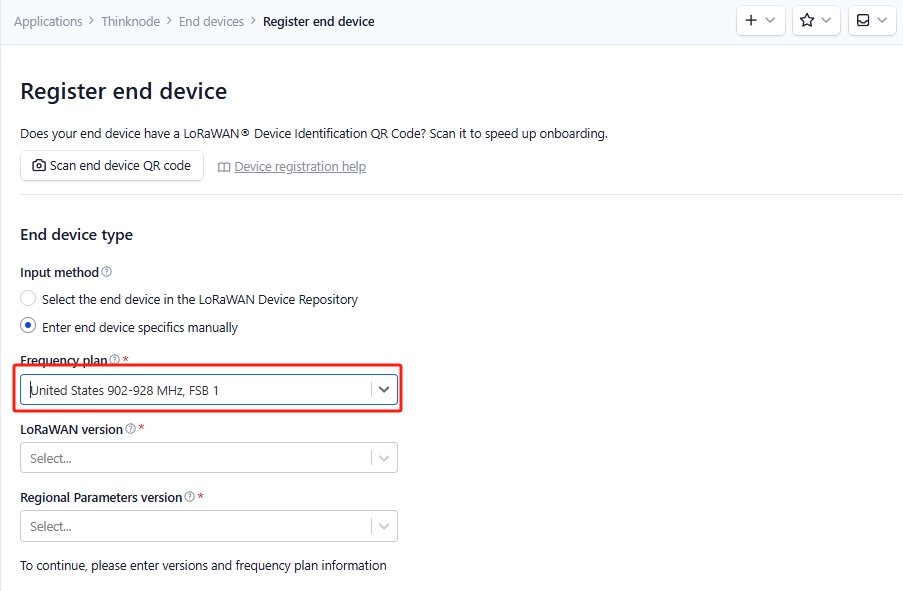

Set the Frequency plan，note that the band range should be consistent with the gateway used.

thinknode_g1

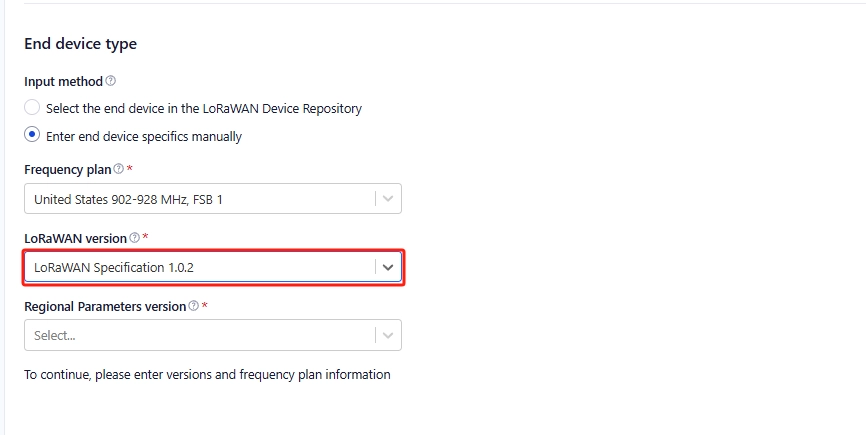

Set LoRaWAN version

thinknode_g1

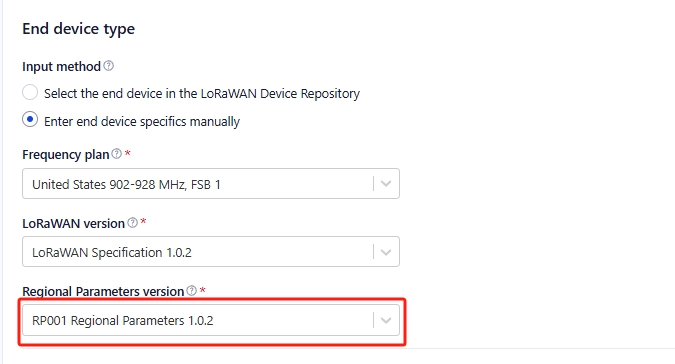

Set the Regional Parameters version

thinknode_g1

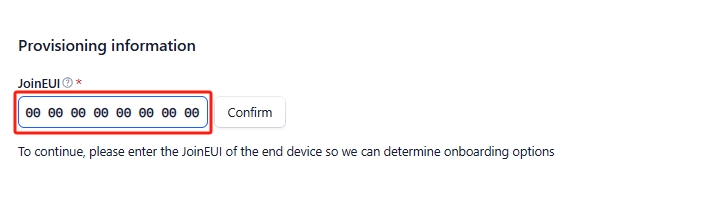

Set JoinEUI (APPEUI).

thinknode_g1

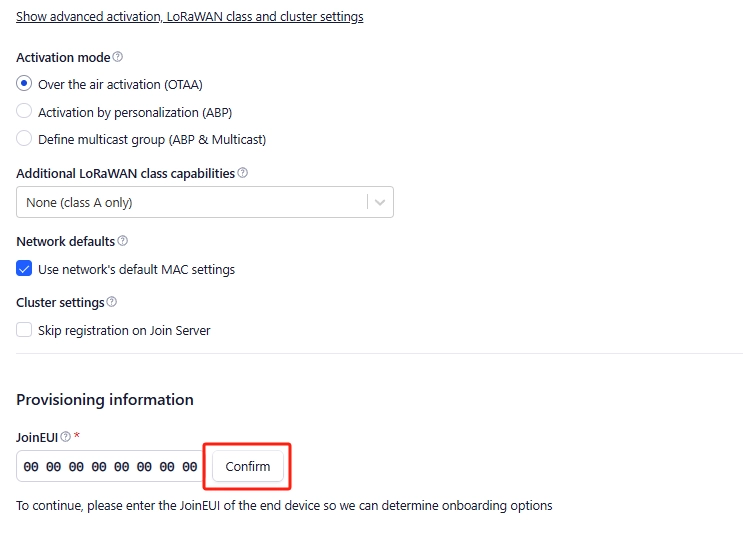

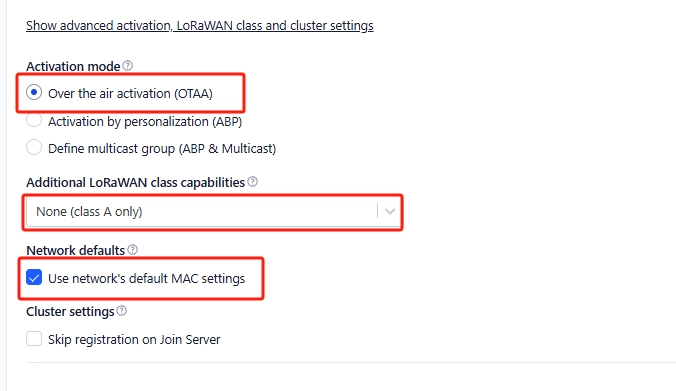

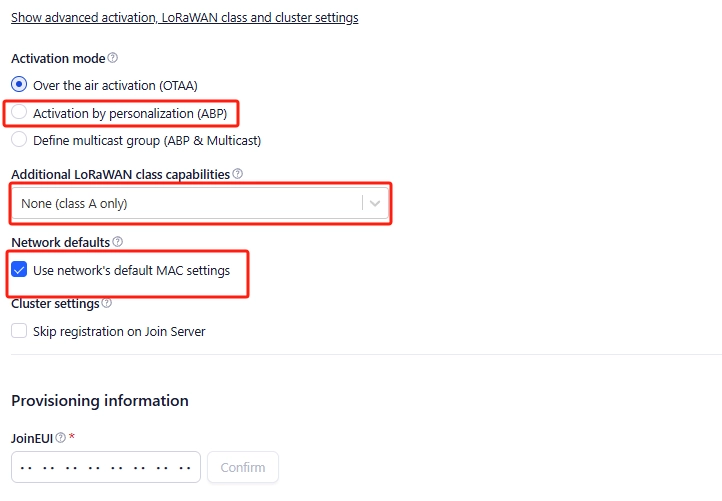

Step 6: Click Show advanced activation, LoRaWAN class and cluster settings. Configure parameters such as activation mode and device operating mode.

activation mode is OTAA when

thinknode_g1

Configure to OTTA mode (i.e., default mode)

thinknode_g1

Then click Confirm

thinknode_g1

when the activation mode is ABP

thinknode_g1

Step 7: Configure the corresponding device parameters according to the activation mode selected above, as shown in the following figure:

when the activation mode is OTAA

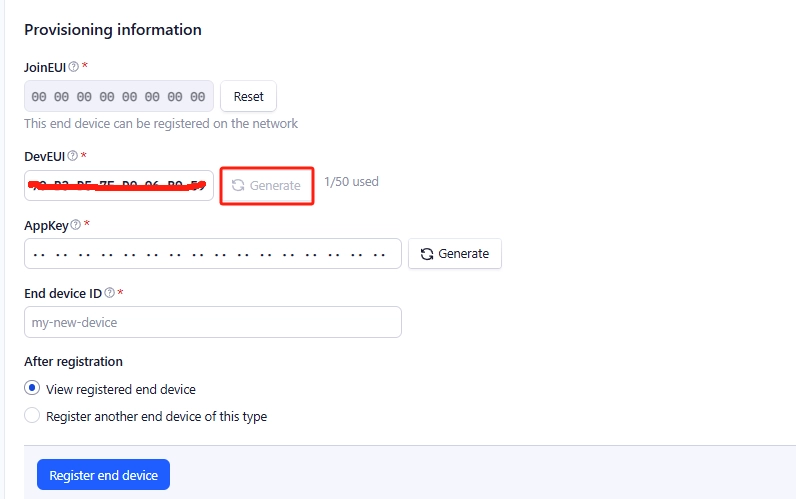

Click Generate,automatically generate DevEUI.

thinknode_g1

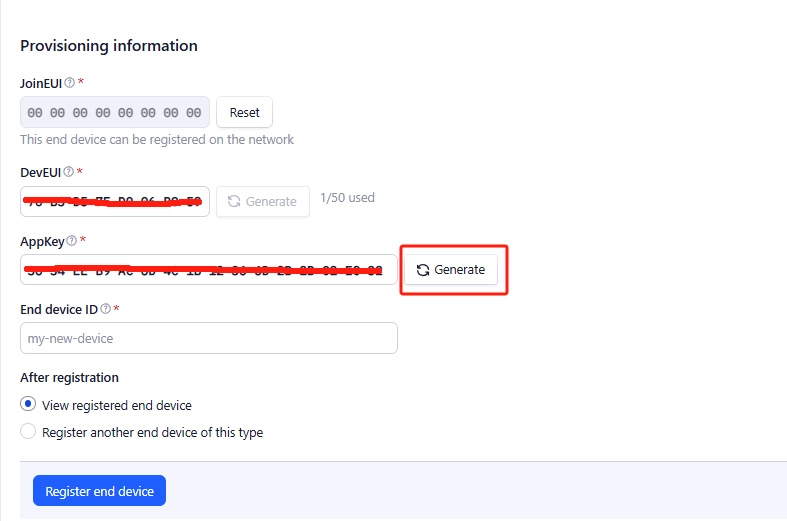

Click Generate to generate AppKey automatically.

thinknode_g1

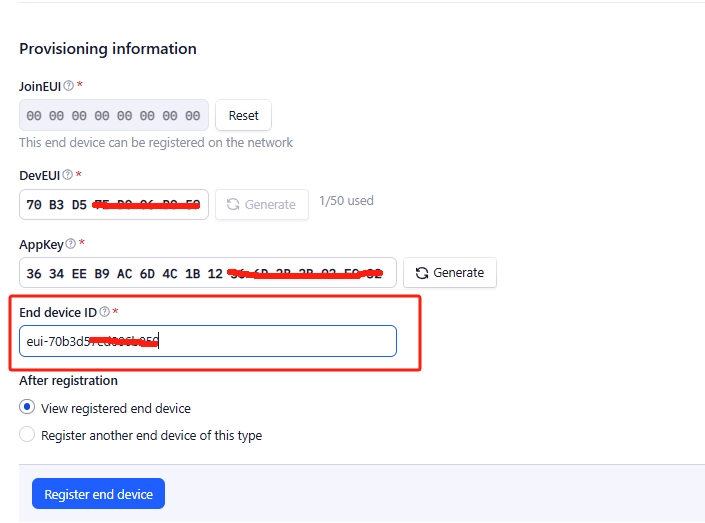

Enter the End device ID

thinknode_g1

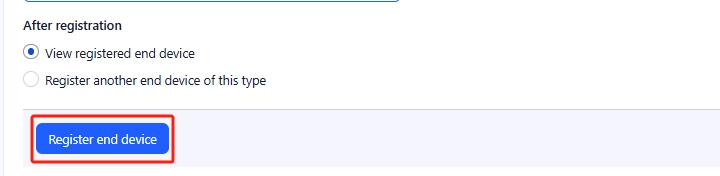

Click Register end device

thinknode_g1

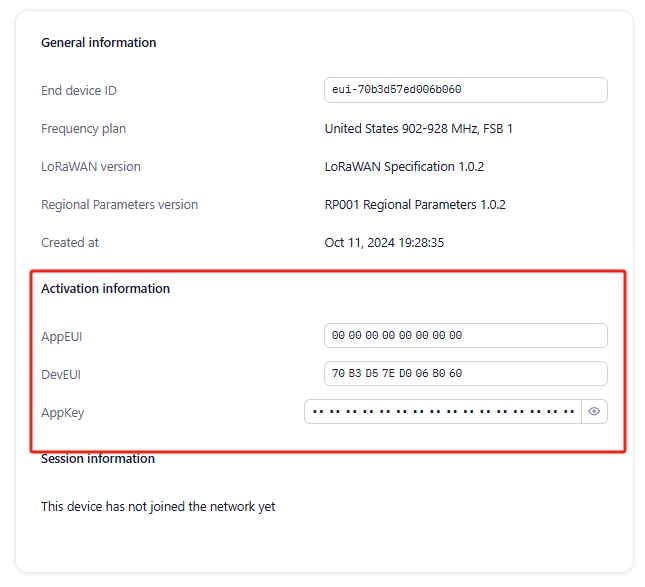

OTAA device is successfully registered.

thinknode_g1

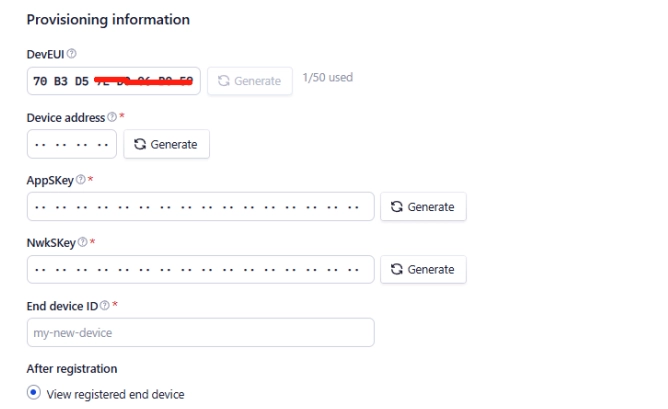

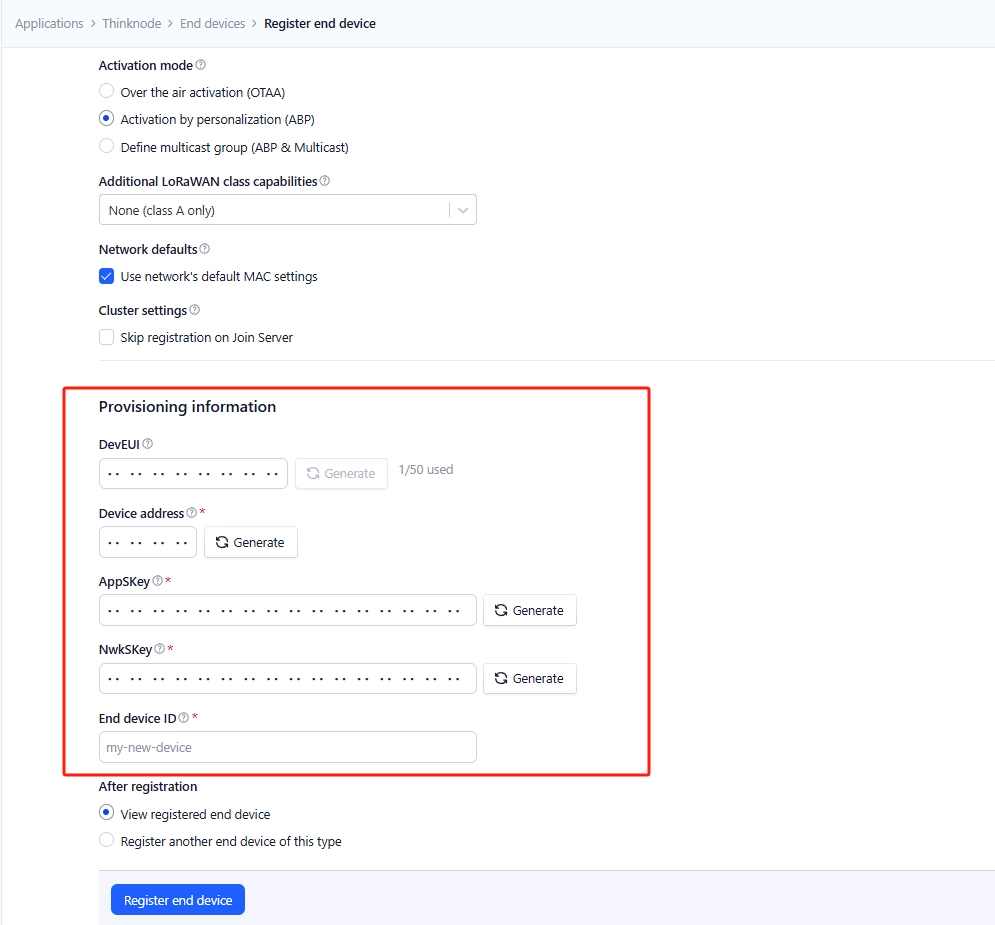

activation mode is ABP

thinknode_g1

Enter DevEUI

thinknode_g1

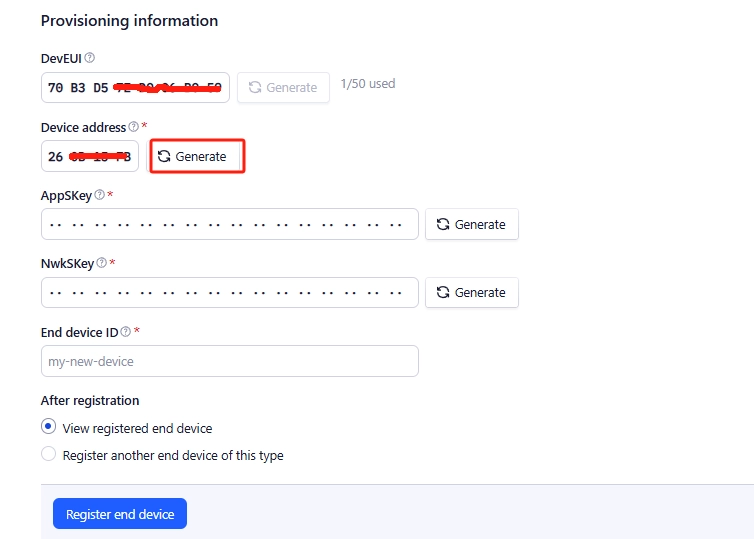

Click Generate to generate Device address automatically.

thinknode_g1

Click Generate to generate AppSkey automatically.

thinknode_g1

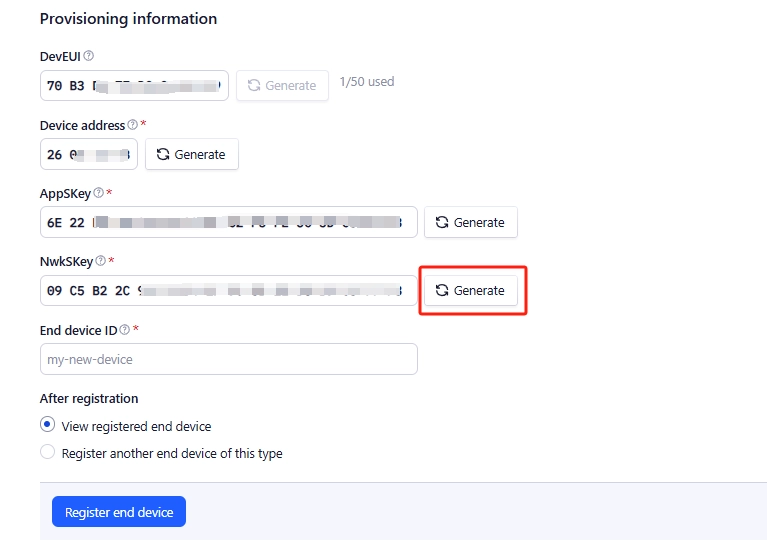

Click Generate to generate NwkSkey automatically.

thinknode_g1

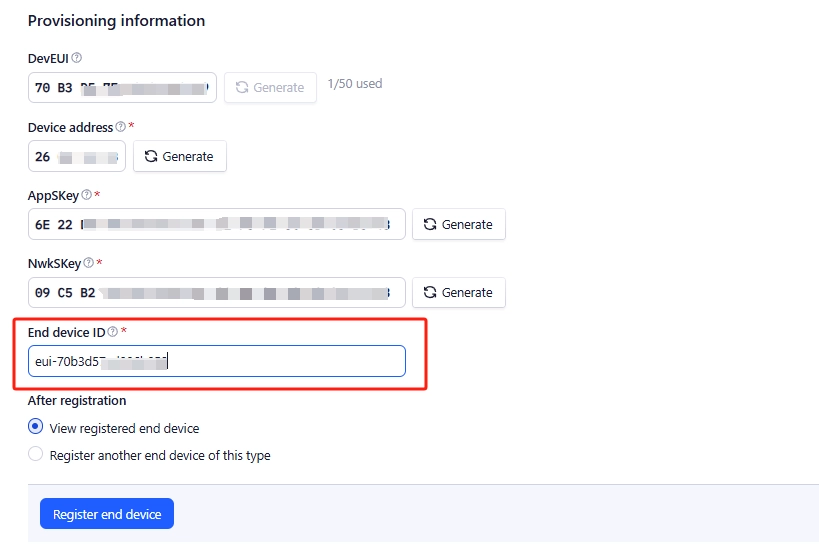

Enter the end device ID.

thinknode_g1

Click Register end device

thinknode_g1

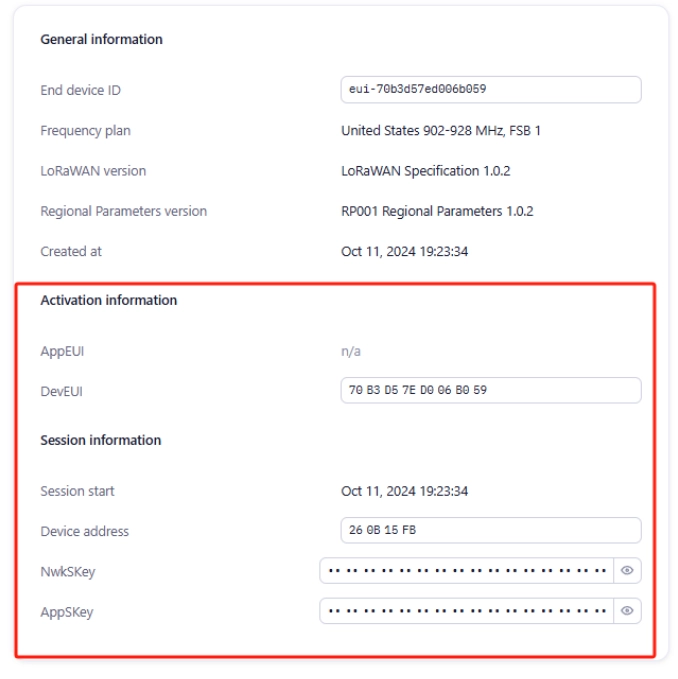

ABP device is successfully registered.

thinknode_g1

Communicate with the gateway through the created TTN application node and upload the node-gateway communication data to the TTN server

Prerequisites:

1. The gateway has been created in TTN, and the gateway has been connected and operated normally.

2. Node applications (OTAA/ABP) corresponding to the band range of the gateway have been created in TTN

hardware preparation

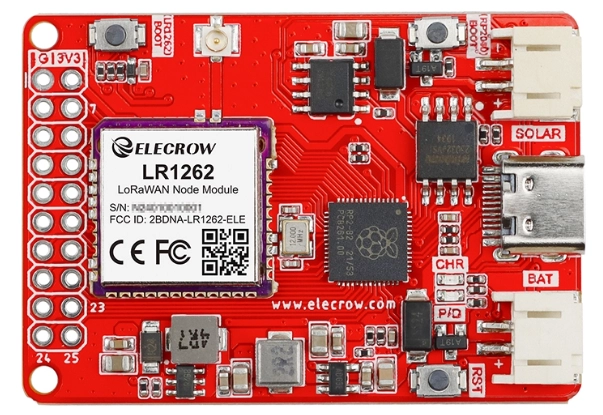

1.LR1262 Node Board

2.PC

3.TYPE-C data cable

4.Thinknode G3

thinknode_g1

software preparation

1.Configure LR1262 Node Board as USB-TTL communication software program “RP2040-USB-TTL.ino.rpipico.uf2”.

2.SSCOM serial port tool

Configure the LR1262 Node Board as USB-TTL communication mode (actually through the RP2040 comes with a USB interface, through the software program to realize the UART communication between the RP2040 and the LR1262).

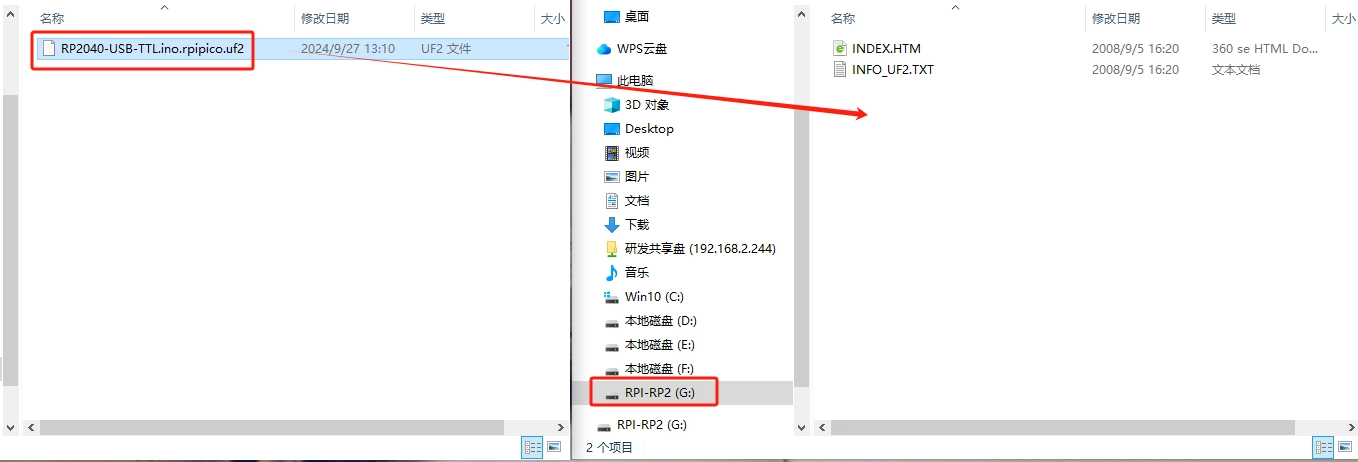

Connect the LR1262 Node Board to the PC through the TYPE-C cable, and then first press the Connect the LR1262 Node Board with PC via TYPE-C cable, first press the “RP2040_BOOT” button on the LR1262 Node Board, and then press the ‘RST’ button, then a “RPI-XX” virtual USB flash disk will be popped up on the PC automatically. “Copy ”RP2040-USB-TTL.ino.rpipico.uf2“ to the ”RPI-XX" virtual USB flash disk and wait for the copying to complete. The LR1262 Node Board can be configured for USB-TTL communication.

thinknode_g1

Note: After the program is burned, you need to power off the LR1262 Node Board, and then power on it again!

Through the SSCOM serial tool, send AT commands to configure the LR1262 Node Board as an OTAA/ABP node application established in the TTN, and through sending AT commands, join the LR1262 Node Board to the LoRaWAN network, complete the networking communication with the gateway, and upload the real-time node and gateway communication data between the node and the gateway is uploaded to the TTN server.

Use OTAA mode to join the LoRaWAN network (LR1262 Node Board uses the network entry mode by default)

Step 1: Open the SSCOM serial port tool in the Serial Port Assistant, select the USB COM port recognized by your computer, and then click “EXT”, as shown below.

thinknode_g1

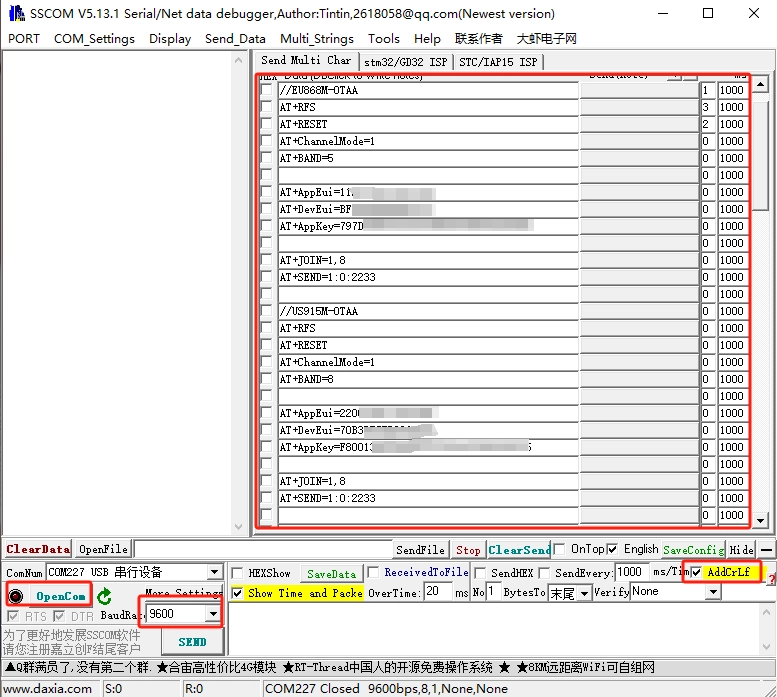

Step 2: Select and input the AT command information as follows on the extended interface of the serial port assistant:

(1) Serial port setting

1, baud rate: 9600
2, check the serial port carriage return line feed
(2) Node access to the single-channel gateway configuration steps (send AT commands)

1、AT + RFS: clear the flash memory, every time you set up the access frequency band or re-entry, you have to send this command to clear the flash memory of the internal chip of the LR1262, otherwise it will affect the module. This instruction must be sent to clear the flash memory of the internal chip of LR1262 every time before setting the access band or re-entering the network.

2、AT+RESET：LR1262 node module reset instruction, you need to reset LR1262 module before re-entering the network.

3、Select the node as single channel/multi-channel mode: AT+ChannelMode=0 (0 is single channel, 1 is multi-channel).
4、set the node into the network band: AT + BAND = 8, (5 for the 868 band, 8 for the 915 band, if it is a single-channel mode, the instruction is AT + BAND = 8,x (X for the selection of the band number 868 optional (0-2), 915 optional (0-7))).
5、Set node DevEui：AT+DevEui=70B3D57ED006**** (Red part corresponds to TTN server)
6、Set node AppEui：AT+AppEui=220033001100**** (Red part corresponds to TTN server)
7、Set node AppKey：AT+AppKey AppKey=F80013BC56A2B55375E467CBE5D9**** (the red part corresponds to the TTN server)

thinknode_g1

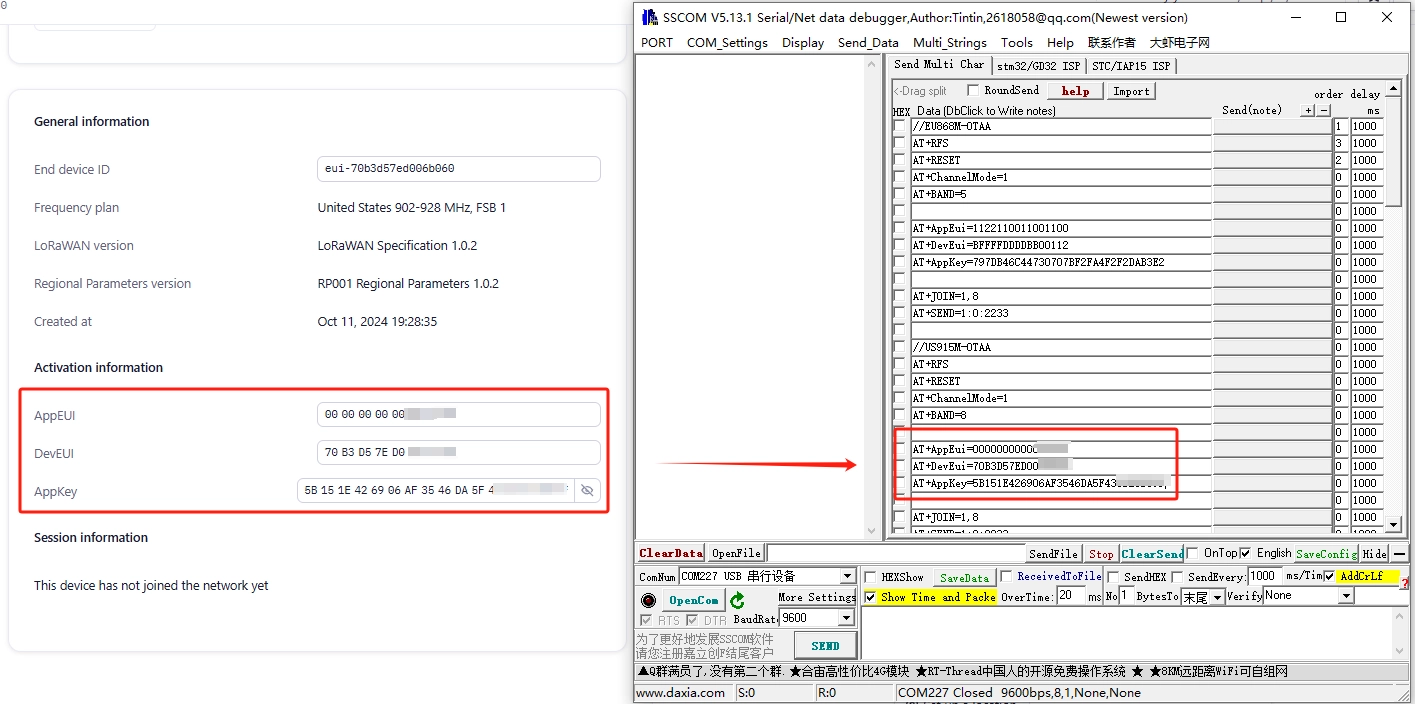

Here, it is important to note that DevEui, AppEui and AppKey should be replaced by DevEui, AppEui and AppKey in the application of the created OTAA node.

thinknode_g1

8、set the node to start netting: AT+JOIN=1,8 (parameter description: the first parameter is to select the netting mode, 0 is ABP mode, 1 is OTAA mode, the second parameter is the number of times to request netting cyclically in OTAA mode (1-8), ABP mode does not need to be cyclic). After sending this command, you need to wait for the node to enter the network, after the node enters the network successfully, then you can send the next command, as shown in the following figure: the information printed by the serial port tool after the successful entry:

thinknode_g1

Input the above AT commands in Serial Assistant Expansion Interface, when you input the command “AT+JOIN=1,8”, “joined successfully” will appear, which means the LR1262 node module has been joined successfully!

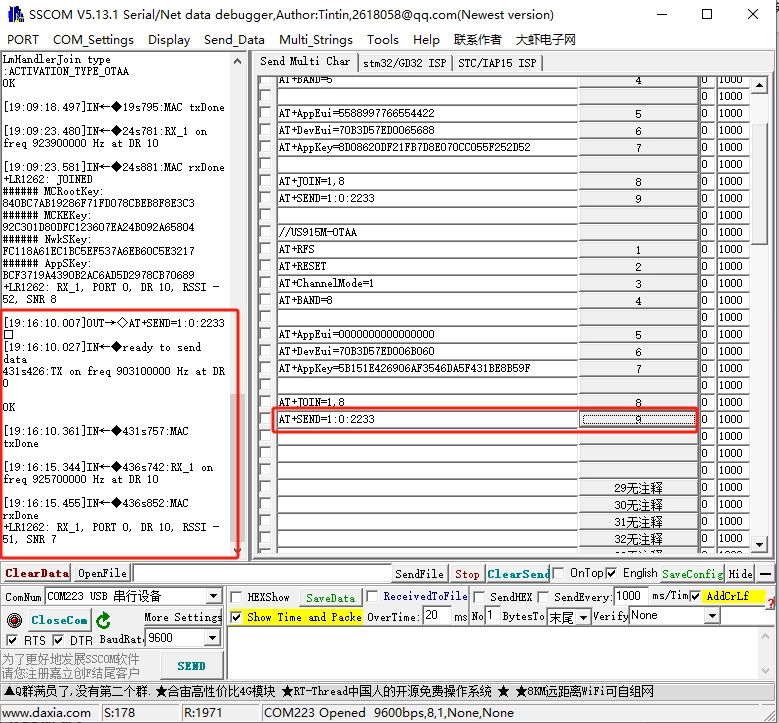

9、start to send data: AT + SEND = 1:0:2233 (parameters: the last parameter for the data to be sent, and can only send an even number of data) SSCOM Serial Assistant commands are shown below:

thinknode_g1

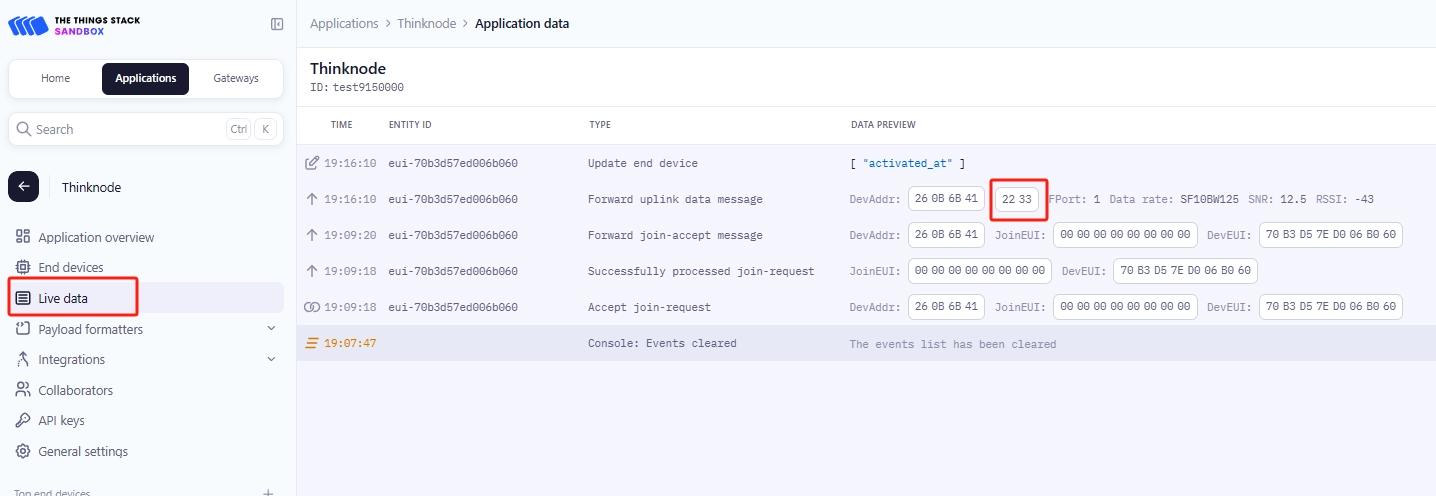

10、use “AT+SEND=1:0:2233” command to send data, in the background of the TTN server “Applications->Live data” you can see the node real-time sent data “2233”

thinknode_g1

Use ABP mode to join LoRaWAN network

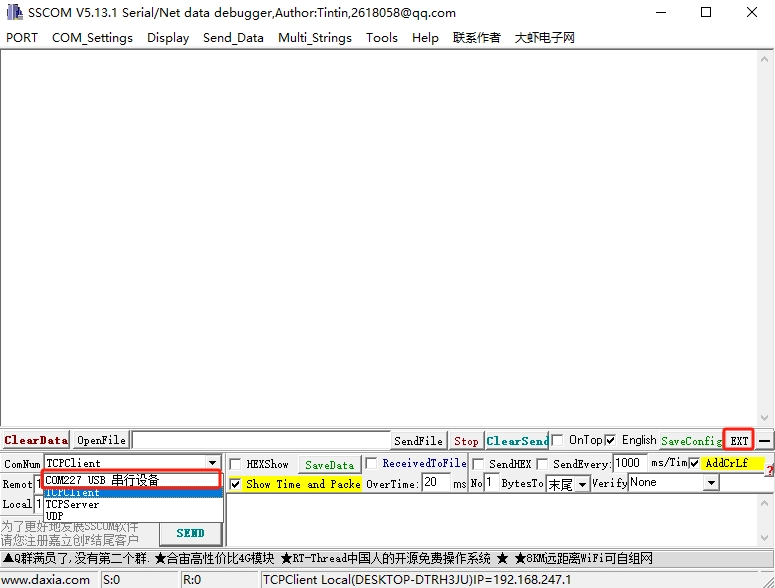

Step 1: Open the SSCOM serial port tool in the serial port assistant, select the USB COM port recognized by the computer, and click “EXT”, as shown in the following figure:

thinknode_g1

Step 2: Select and enter the AT command information as follows on the extended interface of the serial port assistant:

(1) Serial port setting
1, baud rate: 9600
2, check the serial port carriage return line feed
(2) Node access to the single-channel gateway configuration steps (send AT commands)
1、AT + RFS: clear the flash memory, every time you set up the access frequency band or re-entry, you have to send this command to clear the flash memory of the internal chip of the LR1262, otherwise it will affect the module's performance. This instruction must be sent to clear the flash memory of the internal chip of LR1262 every time before setting the access band or re-entering the network.
2、AT+RESET：LR1262 node module reset instruction, you need to reset LR1262 module before re-entering the network.
3、Select the node as single channel/multi-channel mode: AT+ChannelMode=0 (0 is single channel, 1 is multi-channel).
4, set the node into the network band: AT + BAND = 8, (5 for the 868 band, 8 for the 915 band, if it is a single-channel mode, the instruction is AT + BAND = 8,x (X for the selection of the band number 868 optional (0-2), 915 optional (0-7))).
5、Set node DevEui：AT+DevEui=1A2A2A2A2A2C2C**** (Red part corresponds to TTN server)
6、Set node DevAddr：AT+DevAddr=2A2A22A2 (Red part corresponds to TTN server)
7、Set node NwkSKey：AT+NwkSKey= 25A252C25D2C2B6E2D3D3F2C2B3D**** (the red part corresponds to the TTN server)
8、Set the node AppSKey: AT+AppSKey=C2D2B2F2E3A2F1A35D1256216553**** (the red part corresponds to the TTN server)

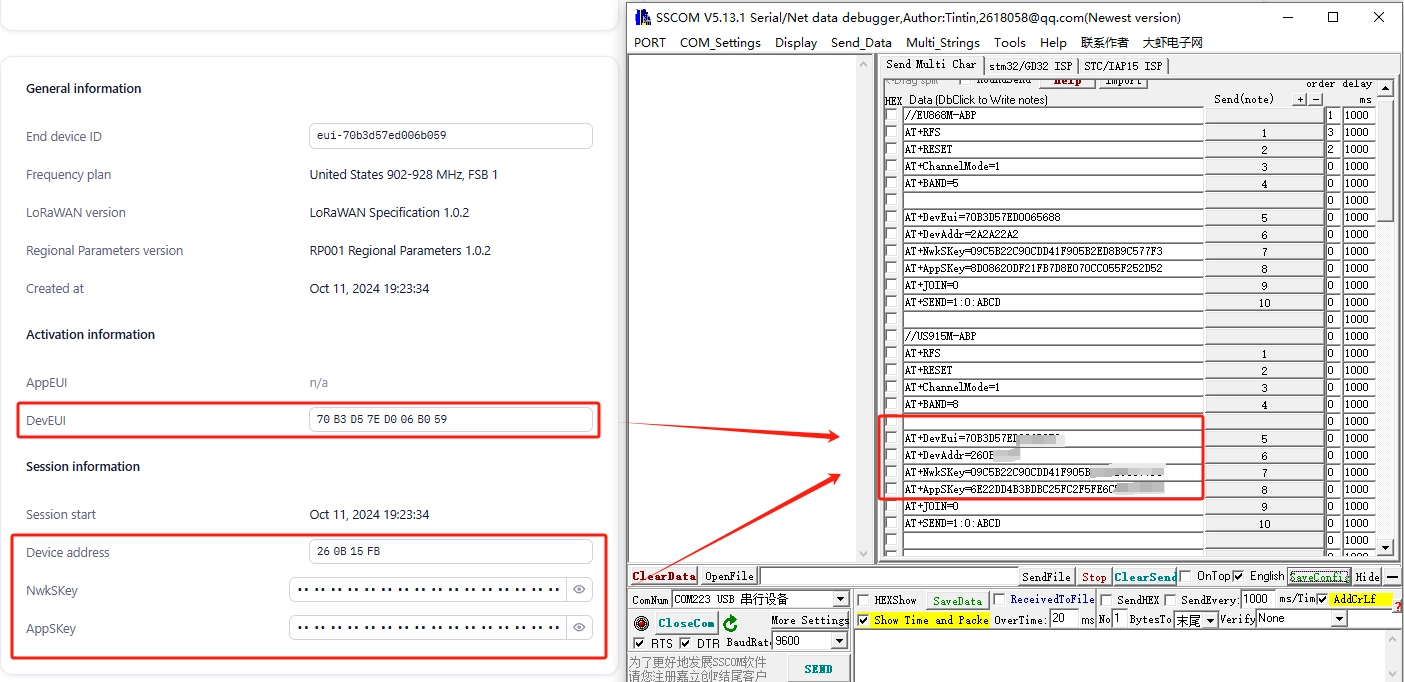

Here, we should note that the Here, note that DevEui, DevAddr, NwkSKey, and AppSKey are replaced with DevEui, DevAddr, NwkSKey, and AppSKey in the application of the created ABP node.

thinknode_g1

9、Set the node to start the network: AT + JOIN = 0 (parameter description: the first parameter is to select the network mode, 0 for ABP mode, 1 for OTAA mode, the second parameter is the number of times (1-8) of cyclic request to enter the network in the OTAA mode, no need to cycle in the ABP mode). After sending this command, you need to wait for the node to enter the network, after the node enters the network successfully, then you can send the next command, as shown in the following figure: the information printed by the serial port tool after the successful entry:

thinknode_g1

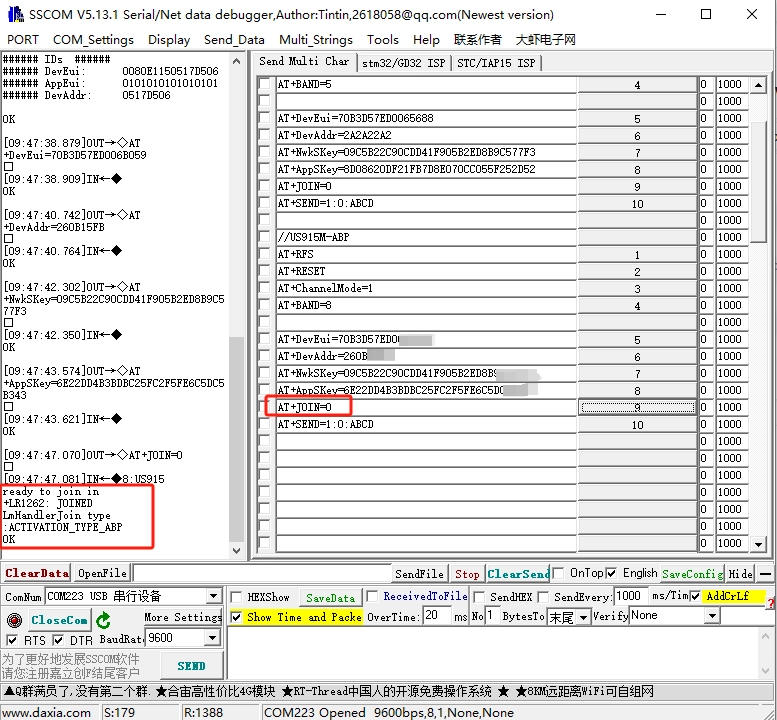

Input the above AT commands in Serial Assistant Expansion interface, when you input the command “AT+JOIN=0”, “joined successfully” will appear, which means the LR1262 node module has been joined successfully!

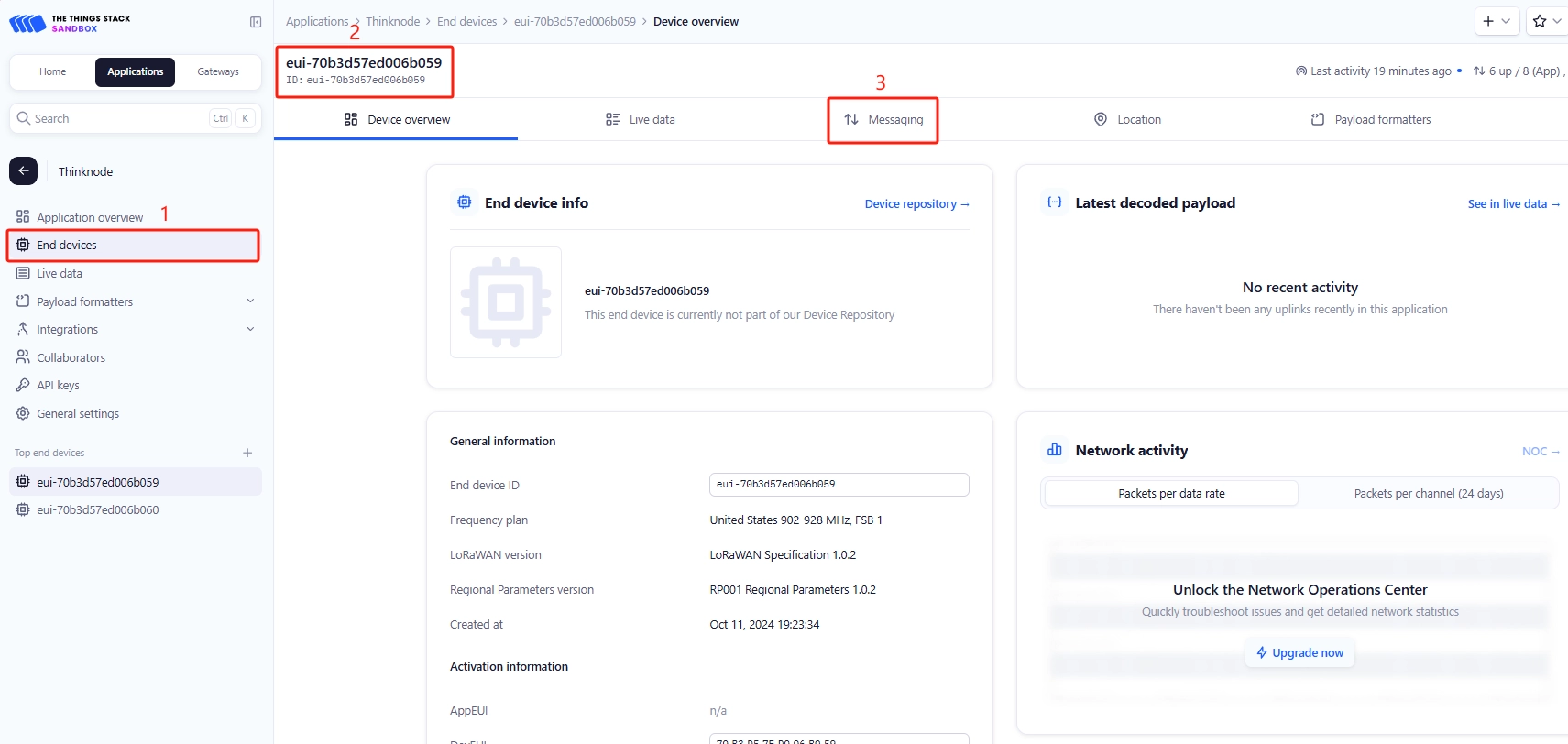

10、in ABP mode, before using AT+SEND instruction to send data, you need to set up the messaging of the ABP node that has just joined the network on the TTN server website.

thinknode_g1

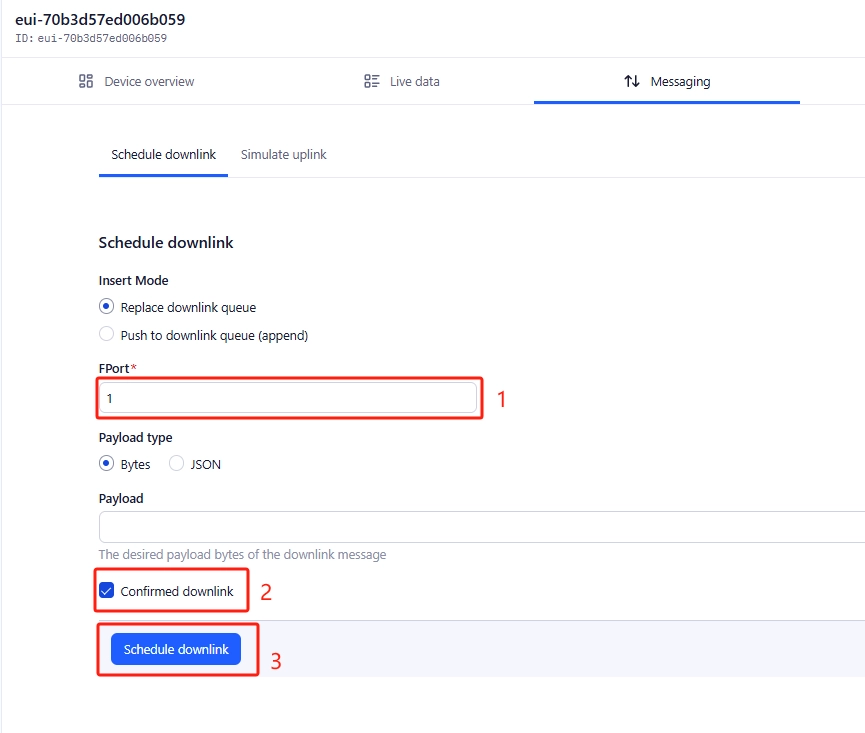

In the Messaging interface, enter FPort as 1, select Confirmed downlink, and then click Schedule downlink.

thinknode_g1

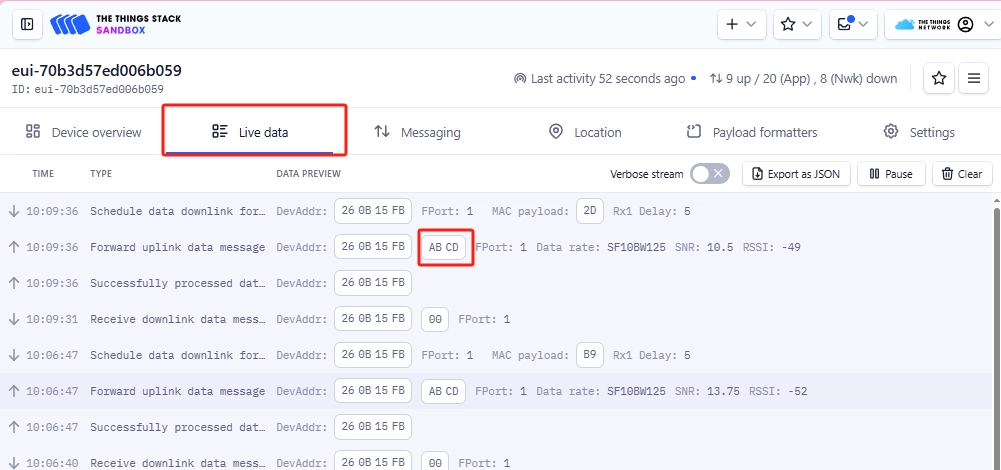

11、use “AT+SEND=1:0:ABCD” command to send data, in the background of TTN server “Applications->Live data” you can see the real-time data sent by the node. “ABCD”.

thinknode_g1
