Crowtail-Rotation Angle Sensor

Description

This rotation Angle sensor using the SV01 series of PSV01A, excellent resistance materials and high reliability wiper achieves 1M cycles，dust-proof construction protects the interior from dust, which maintains stable characteristics.

Model: CRT03345R

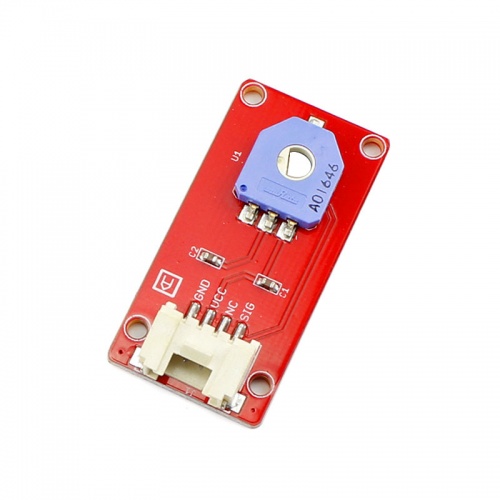

Crowtail- Crowtail-Rotation Angle Sensor.jpg

Features

  • Dust-proof construction protects the interior from dust, which maintains stable characteristics.
  • Easy-to-use Crowtail compatible interface
  • Supports analog interface
  • D formation thru-hole rotor enables selection of any kind of gear shape.

Specification

Category: Sensors, Transducers

Family: Position Sensors - Angle, Linear Position Measuring

Series: SV01

For Measuring: Rotary Position

Technology: Resistive

Resistance (Ohms): 10k

Rotation Angle - Electrical, Mechanical: 0°~333.3°

Actuator Type: Hole for Shaft

Linearity: ±2%

Resistance Tolerance: ±30%

Mounting Type: Surface Mount

Termination Style: SMD (SMT) Tab

Operating Temperature: -40°C ~ 85°C

Dimensions(mm):40.0(L)x20.0(W)x6.8(H)

Usage

1. Plug it onto the Analog port 0 of Crowtail - Base Shield using a Crowtail cable.

2.Plug the Crowtail - Base Shield onto Arduino.

3. Connect Arduino to PC by using a USB cable.


4.Copy and paste code below to a new Arduino sketch, and upload it to your Arduino.

const int analogInPin = A0;  // Analog input pin that the potentiometer is attached to

int sensorValue = 0;
void setup() {
  // initialize serial communications at 9600 bps:
  Serial.begin(9600);
}

void loop() {
  // read the analog in value:
  sensorValue = analogRead(analogInPin);
    Serial.println(sensorValue);

  delay(1500);
}

5.When you upload the code complete,you can see the result via the serial port debug window.
