2.4G Wireless nRF24L01
Description¶
This module uses the newest 2.4GHz transceiver from Nordic Semiconductor, the nRF24L01.This transceiver IC operates in the 2.4GHz band and has many new features! Take all the coolness of the nRF2401A and add some extra pipelines, buffers, and an auto-retransmit feature.
Model:WRF24010R
Features¶
- Worldwide license-free 2.4GHz ISM band operation
- 250kbps, 1Mbps and 2Mbps on-air data-rate options
- Enhanced ShockBurst?hardware protocol accelerator
- Ultra low power consumption?months to years of battery lifetime
Specification¶
- Power supply : 1.9~3.6V
- IO port working voltage : 0~3.3v / 5v
- Transmitting rate : +7dB
- Receiving sensitivity : -90dB
- Transmission range : 250m in open area
- Dimension : 15x29mm
Usage¶
With Arduino¶
The nRF24L01 module can be controlled in many ways, one of which is Arduino or Crowduino. We tried and tested it, then made a demo. Let’s see how it works with Arduino.

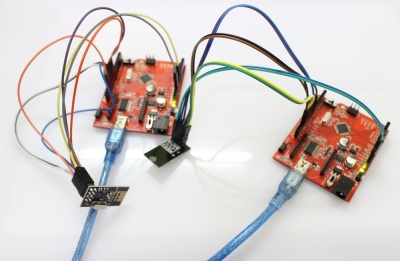

1.Hardware Connection.
First of all, of course, you need two Arduino boards and at least two RF modules, one to transmit and the other to receive.
2.Download the code below into the TX Arduino (transmit) — This code will drive the nRF24L01 module to send out data form 0×00 to 0xFF .
/** ******************************************************************
** SPI-compatible **
** CS - to digital pin 8 **
** CSN - to digital pin 9 (SS pin) **
** IRQ - to digital pin 10 (IRQ pin) **
** MOSI - to digital pin 11 (MOSI pin) **
** MISO - to digital pin 12 (MISO pin) **
** CLK - to digital pin 13 (SCK pin) **
*********************************************************************/
#include <SPI.h>
#include "API.h"
#include "nRF24L01.h"
//***************************************************
#define TX_ADR_WIDTH 5 // 5 unsigned chars TX(RX) address width
#define TX_PLOAD_WIDTH 32 // 32 unsigned chars TX payload
unsigned char TX_ADDRESS[TX_ADR_WIDTH] =
{
0x34,0x43,0x10,0x10,0x01
}; // Define a static TX address
unsigned char rx_buf[TX_PLOAD_WIDTH] = {0}; // initialize value
unsigned char tx_buf[TX_PLOAD_WIDTH] = {0};
//***************************************************
void setup()
{
Serial.begin(9600);
pinMode(CE, OUTPUT);
pinMode(CSN, OUTPUT);
pinMode(IRQ, INPUT);
SPI.begin();
delay(50);
init_io(); // Initialize IO port
unsigned char sstatus=SPI_Read(STATUS);
Serial.println("*******************TX_Mode Start****************************");
Serial.print("status = ");
Serial.println(sstatus,HEX); // There is read the mode’s status register, the default value should be ‘E’
TX_Mode(); // set TX mode
}
void loop()
{
int k = 0;
for(;;)
{
for(int i=0; i<32; i++)
tx_buf[i] = k++;
unsigned char sstatus = SPI_Read(STATUS); // read register STATUS's value
if(sstatus&TX_DS) // if receive data ready (TX_DS) interrupt
{
SPI_RW_Reg(FLUSH_TX,0);
SPI_Write_Buf(WR_TX_PLOAD,tx_buf,TX_PLOAD_WIDTH); // write playload to TX_FIFO
}
if(sstatus&MAX_RT) // if receive data ready (MAX_RT) interrupt, this is retransmit than SETUP_RETR
{
SPI_RW_Reg(FLUSH_TX,0);
SPI_Write_Buf(WR_TX_PLOAD,tx_buf,TX_PLOAD_WIDTH); // disable standy-mode
}
SPI_RW_Reg(WRITE_REG+STATUS,sstatus); // clear RX_DR or TX_DS or MAX_RT interrupt flag
delay(1000);
}
}
//**************************************************
// Function: init_io();
// Description:
// flash led one time,chip enable(ready to TX or RX Mode),
// Spi disable,Spi clock line init high
//**************************************************
void init_io(void)
{
digitalWrite(IRQ, 0);
digitalWrite(CE, 0); // chip enable
digitalWrite(CSN, 1); // Spi disable
}
/************************************************************************
** * Function: SPI_RW();
*
* Description:
* Writes one unsigned char to nRF24L01, and return the unsigned char read
* from nRF24L01 during write, according to SPI protocol
************************************************************************/
unsigned char SPI_RW(unsigned char Byte)
{
return SPI.transfer(Byte);
}
/**************************************************/
/**************************************************
* Function: SPI_RW_Reg();
*
* Description:
* Writes value 'value' to register 'reg'
/**************************************************/
unsigned char SPI_RW_Reg(unsigned char reg, unsigned char value)
{
unsigned char status;
digitalWrite(CSN, 0); // CSN low, init SPI transaction
SPI_RW(reg); // select register
SPI_RW(value); // ..and write value to it..
digitalWrite(CSN, 1); // CSN high again
return(status); // return nRF24L01 status unsigned char
}
/**************************************************/
/**************************************************
* Function: SPI_Read();
*
* Description:
* Read one unsigned char from nRF24L01 register, 'reg'
/**************************************************/
unsigned char SPI_Read(unsigned char reg)
{
unsigned char reg_val;
digitalWrite(CSN, 0); // CSN low, initialize SPI communication...
SPI_RW(reg); // Select register to read from..
reg_val = SPI_RW(0); // ..then read register value
digitalWrite(CSN, 1); // CSN high, terminate SPI communication
return(reg_val); // return register value
}
/**************************************************/
/**************************************************
* Function: SPI_Read_Buf();
*
* Description:
* Reads 'unsigned chars' #of unsigned chars from register 'reg'
* Typically used to read RX payload, Rx/Tx address
/**************************************************/
unsigned char SPI_Read_Buf(unsigned char reg, unsigned char *pBuf, unsigned char bytes)
{
unsigned char sstatus,i;
digitalWrite(CSN, 0); // Set CSN low, init SPI tranaction
sstatus = SPI_RW(reg); // Select register to write to and read status unsigned char
for(i=0;i<bytes;i++)
{
pBuf[i] = SPI_RW(0); // Perform SPI_RW to read unsigned char from nRF24L01
}
digitalWrite(CSN, 1); // Set CSN high again
return(sstatus); // return nRF24L01 status unsigned char
}
/**************************************************/
/**************************************************
* Function: SPI_Write_Buf();
*
* Description:
* Writes contents of buffer '*pBuf' to nRF24L01
* Typically used to write TX payload, Rx/Tx address
/**************************************************/
unsigned char SPI_Write_Buf(unsigned char reg, unsigned char *pBuf, unsigned char bytes)
{
unsigned char sstatus,i;
digitalWrite(CSN, 0); // Set CSN low, init SPI tranaction
sstatus = SPI_RW(reg); // Select register to write to and read status unsigned char
for(i=0;i<bytes; i++) // then write all unsigned char in buffer(*pBuf)
{
SPI_RW(*pBuf++);
}
digitalWrite(CSN, 1); // Set CSN high again
return(sstatus); // return nRF24L01 status unsigned char
}
/**************************************************/
/**************************************************
* Function: TX_Mode();
*
* Description:
* This function initializes one nRF24L01 device to
* TX mode, set TX address, set RX address for auto.ack,
* fill TX payload, select RF channel, datarate & TX pwr.
* PWR_UP is set, CRC(2 unsigned chars) is enabled, & PRIM:TX.
*
* ToDo: One high pulse(>10us) on CE will now send this
* packet and expext an acknowledgment from the RX device.
**************************************************/
void TX_Mode(void)
{
digitalWrite(CE, 0);
SPI_Write_Buf(WRITE_REG + TX_ADDR, TX_ADDRESS, TX_ADR_WIDTH); // Writes TX_Address to nRF24L01
SPI_Write_Buf(WRITE_REG + RX_ADDR_P0, TX_ADDRESS, TX_ADR_WIDTH); // RX_Addr0 same as TX_Adr for Auto.Ack
SPI_RW_Reg(WRITE_REG + EN_AA, 0x01); // Enable Auto.Ack:Pipe0
SPI_RW_Reg(WRITE_REG + EN_RXADDR, 0x01); // Enable Pipe0
SPI_RW_Reg(WRITE_REG + SETUP_RETR, 0x1a); // 500us + 86us, 10 retrans...
SPI_RW_Reg(WRITE_REG + RF_CH, 40); // Select RF channel 40
SPI_RW_Reg(WRITE_REG + RF_SETUP, 0x07); // TX_PWR:0dBm, Datarate:2Mbps, LNA:HCURR
SPI_RW_Reg(WRITE_REG + CONFIG, 0x0e); // Set PWR_UP bit, enable CRC(2 unsigned chars) & Prim:TX. MAX_RT & TX_DS enabled..
SPI_Write_Buf(WR_TX_PLOAD,tx_buf,TX_PLOAD_WIDTH);
digitalWrite(CE, 1);
}
3.Download the code below into the RX Arduino (receive) – This code will drive the nFR24L01 module to receive the data that transmit form the TX module and print it to serial port.
/** ******************************************************************
** SPI-compatible **
** CS - to digital pin 8 **
** CSN - to digital pin 9 (SS pin) **
** IRQ - to digital pin 10 (IRQ pin) **
** MOSI - to digital pin 11 (MOSI pin) **
** MISO - to digital pin 12 (MISO pin) **
** CLK - to digital pin 13 (SCK pin) **
*********************************************************************/
#include <SPI.h>
#include "API.h"
#include "nRF24L01.h"
//***************************************************
#define TX_ADR_WIDTH 5 // 5 unsigned chars TX(RX) address width
#define TX_PLOAD_WIDTH 32 // 32 unsigned chars TX payload
unsigned char TX_ADDRESS[TX_ADR_WIDTH] =
{
0x34,0x43,0x10,0x10,0x01
}; // Define a static TX address
unsigned char rx_buf[TX_PLOAD_WIDTH] = {0}; // initialize value
unsigned char tx_buf[TX_PLOAD_WIDTH] = {0};
//***************************************************
void setup()
{
Serial.begin(9600);
pinMode(CE, OUTPUT);
pinMode(CSN, OUTPUT);
pinMode(IRQ, INPUT);
SPI.begin();
delay(50);
init_io(); // Initialize IO port
unsigned char sstatus=SPI_Read(STATUS);
Serial.println("*******************RX_Mode Start****************************");
Serial.print("status = ");
Serial.println(sstatus,HEX); // There is read the mode’s status register, the default value should be ‘E’
RX_Mode(); // set RX mode
}
void loop()
{
for(;;)
{
unsigned char status = SPI_Read(STATUS); // read register STATUS's value
if(status&RX_DR) // if receive data ready (TX_DS) interrupt
{
SPI_Read_Buf(RD_RX_PLOAD, rx_buf, TX_PLOAD_WIDTH); // read playload to rx_buf
SPI_RW_Reg(FLUSH_RX,0); // clear RX_FIFO
for(int i=0; i<32; i++)
{
Serial.print(" ");
Serial.print(rx_buf[i],HEX); // print rx_buf
}
Serial.println(" ");
}
SPI_RW_Reg(WRITE_REG+STATUS,status); // clear RX_DR or TX_DS or MAX_RT interrupt flag
delay(1000);
}
}
//**************************************************
// Function: init_io();
// Description:
// flash led one time,chip enable(ready to TX or RX Mode),
// Spi disable,Spi clock line init high
//**************************************************
void init_io(void)
{
digitalWrite(IRQ, 0);
digitalWrite(CE, 0); // chip enable
digitalWrite(CSN, 1); // Spi disable
}
/************************************************************************
** * Function: SPI_RW();
*
* Description:
* Writes one unsigned char to nRF24L01, and return the unsigned char read
* from nRF24L01 during write, according to SPI protocol
************************************************************************/
unsigned char SPI_RW(unsigned char Byte)
{
return SPI.transfer(Byte);
}
/**************************************************/
/**************************************************
* Function: SPI_RW_Reg();
*
* Description:
* Writes value 'value' to register 'reg'
/**************************************************/
unsigned char SPI_RW_Reg(unsigned char reg, unsigned char value)
{
unsigned char status;
digitalWrite(CSN, 0); // CSN low, init SPI transaction
SPI_RW(reg); // select register
SPI_RW(value); // ..and write value to it..
digitalWrite(CSN, 1); // CSN high again
return(status); // return nRF24L01 status unsigned char
}
/**************************************************/
/**************************************************
* Function: SPI_Read();
*
* Description:
* Read one unsigned char from nRF24L01 register, 'reg'
/**************************************************/
unsigned char SPI_Read(unsigned char reg)
{
unsigned char reg_val;
digitalWrite(CSN, 0); // CSN low, initialize SPI communication...
SPI_RW(reg); // Select register to read from..
reg_val = SPI_RW(0); // ..then read register value
digitalWrite(CSN, 1); // CSN high, terminate SPI communication
return(reg_val); // return register value
}
/**************************************************/
/**************************************************
* Function: SPI_Read_Buf();
*
* Description:
* Reads 'unsigned chars' #of unsigned chars from register 'reg'
* Typically used to read RX payload, Rx/Tx address
/**************************************************/
unsigned char SPI_Read_Buf(unsigned char reg, unsigned char *pBuf, unsigned char bytes)
{
unsigned char sstatus,i;
digitalWrite(CSN, 0); // Set CSN low, init SPI tranaction
sstatus = SPI_RW(reg); // Select register to write to and read status unsigned char
for(i=0;i<bytes;i++)
{
pBuf[i] = SPI_RW(0); // Perform SPI_RW to read unsigned char from nRF24L01
}
digitalWrite(CSN, 1); // Set CSN high again
return(sstatus); // return nRF24L01 status unsigned char
}
/**************************************************/
/**************************************************
* Function: SPI_Write_Buf();
*
* Description:
* Writes contents of buffer '*pBuf' to nRF24L01
* Typically used to write TX payload, Rx/Tx address
/**************************************************/
unsigned char SPI_Write_Buf(unsigned char reg, unsigned char *pBuf, unsigned char bytes)
{
unsigned char sstatus,i;
digitalWrite(CSN, 0); // Set CSN low, init SPI tranaction
sstatus = SPI_RW(reg); // Select register to write to and read status unsigned char
for(i=0;i<bytes; i++) // then write all unsigned char in buffer(*pBuf)
{
SPI_RW(*pBuf++);
}
digitalWrite(CSN, 1); // Set CSN high again
return(sstatus); // return nRF24L01 status unsigned char
}
/**************************************************/
void RX_Mode(void)
{
digitalWrite(CE, 0);
SPI_Write_Buf(WRITE_REG + RX_ADDR_P0, TX_ADDRESS, TX_ADR_WIDTH); // Use the same address on the RX device as the TX device
SPI_RW_Reg(WRITE_REG + EN_AA, 0x01); // Enable Auto.Ack:Pipe0
SPI_RW_Reg(WRITE_REG + EN_RXADDR, 0x01); // Enable Pipe0
SPI_RW_Reg(WRITE_REG + RF_CH, 40); // Select RF channel 40
SPI_RW_Reg(WRITE_REG + RX_PW_P0, TX_PLOAD_WIDTH); // Select same RX payload width as TX Payload width
SPI_RW_Reg(WRITE_REG + RF_SETUP, 0x07); // TX_PWR:0dBm, Datarate:2Mbps, LNA:HCURR
SPI_RW_Reg(WRITE_REG + CONFIG, 0x0f); // Set PWR_UP bit, enable CRC(2 unsigned chars) & Prim:RX. RX_DR enabled..
digitalWrite(CE, 1); // Set CE pin high to enable RX device
// This device is now ready to receive one packet of 16 unsigned chars payload from a TX device sending to address
// '3443101001', with auto acknowledgment, retransmit count of 10, RF channel 40 and datarate = 2Mbps.
}
4.Now power on both Arduino , and connect the RX one to PC via USB. Open the IDE serial port monitor , change the baud rate to 9600 bps , and you can see the data that received.
