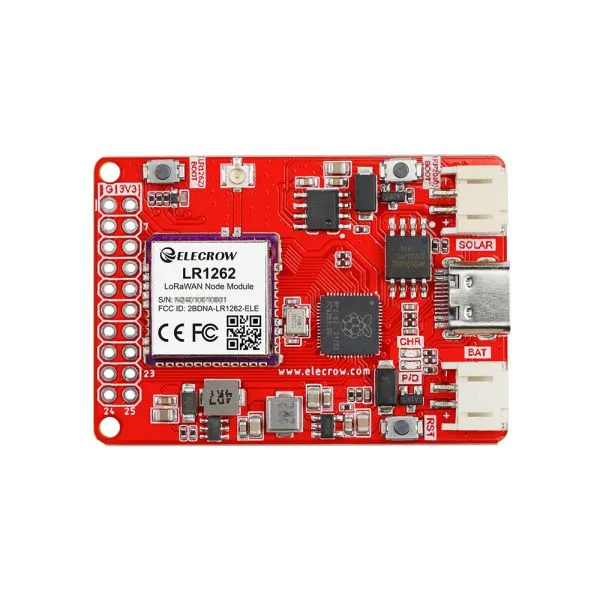

LR1262 Node Board LoRaWan Node Module for Long Range Communication¶
Description¶
This module uses RP2040 as the main controller and LR1262 module provides LoRa transmission and reception functions. It supports LoRa point-to-point transparent transmission and LoRaWAN network. When combined with four types of Crowtail sensor modules (Ax2/Dx2/IICx1/UARTx1), it can quickly build a Lora node. Additionally, we provide two firmware versions for 868/915MHZ to meet different usage needs.
To facilitate outdoor use, this module has a built-in lithium battery charging and discharging circuit, and an interface that supports solar panel charging, making it easy to set up and use the node outdoors.
The module has six interfaces that can be used with commonly used sensors such as temperature and humidity, air quality, light, PM2.5, etc., providing convenience for quickly building a Lora weather station, as well as for projects related to smart homes, smart factories, and smart logistics. In addition, we have introduced a 20-pin header and added a double-row pin header in the accessories, which allows you to choose whether to solder it or not, supporting more development options.
For customized requirements (based on MOQ), please contact us at service@elecrow.com.
Model CRT01269N
Connect with Crowtail Sensors¶
It can be connected with 150+ types of Crowtail modules to complete more interesting projects.
Hardware Overview¶
Features¶
- Uses RP2040 as the main controller, with two 32-bit ARM Cortex M0+ processor cores (dual-core) ,and provides more powerful performance
- Integrates the LR1262 module, supports frequency band: 803MHZ-930MHZ
- Abundant external interface resources, compatible with 150+ kinds of Crowtail series modules
- Supports both Lora point-to-point transparent transmission and the use of LoraWAN network
- Compatible with Arduino/MicroPython, easy to carry out different projects
Specification¶
| Main Chip | Raspberry Pi chip RP2040, built-in 264KB SRAM, onboard 4MB Flash |
|---|---|
| Processor | Dual Core Arm Cortex-M0+ @ 133MHz |
| LR1262 Supports frequency band | 803MHZ-930MHZ |
| LR1262 Support Interface | IPEX first generation interface |
| Development environment | Arduino/Micropython |
| Interface | 1x USB-C interface,6x 5V Crowtail interfaces (2x analog interfaces, 2xdigital interfaces, 1xUART interfaces, 1xIIC interfaces)2x10 universal GPIO interfaces1xBattery Interface1xSolar Interface(5V 1A) |
| Working input voltage | USB 5V-1A |
| Dimensions | 35mm(L)x50mm(W) |
Note: Solar cells can only power the connected lithium battery and cannot directly drive the module.
Case Applications¶
Case 1: Single-channel Application Routines For Single-channel Gateways And Nodes¶
Case 2: Multi-Channel Application Routine For Single-Channel Gateways And Nodes¶
Case 3: Single-channel Application Routines for Raspberry Pi Gateways and Nodes¶
Case 4: Multi-Channel Application Routine for Raspberry Pi Gateways and Nodes¶
Case 5: LR1262 Point-to-Point Communication Application Example¶
AT Command Description¶
LR1262 LoRaWAN AT Command Description¶
Resources¶
Github link：(coming soon)
