CrowPanel ESP32 7.0-inch with ESP-IDF¶

Overview¶

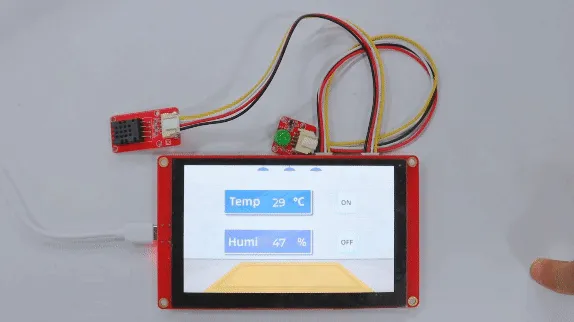

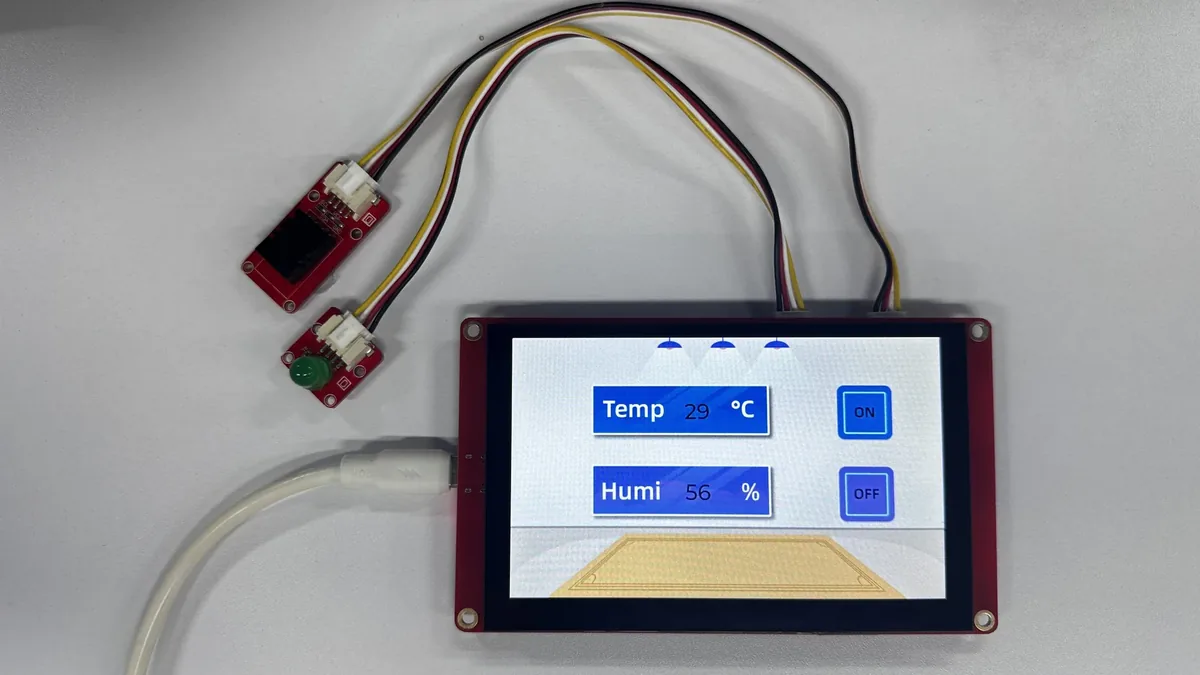

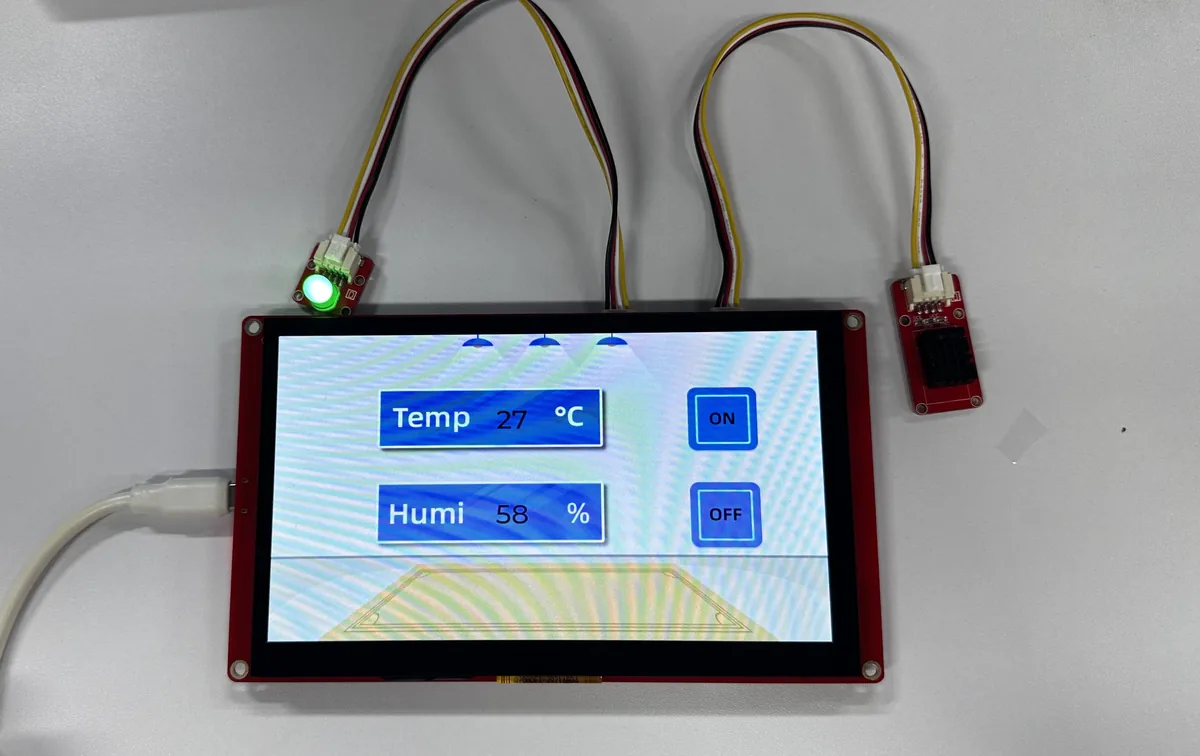

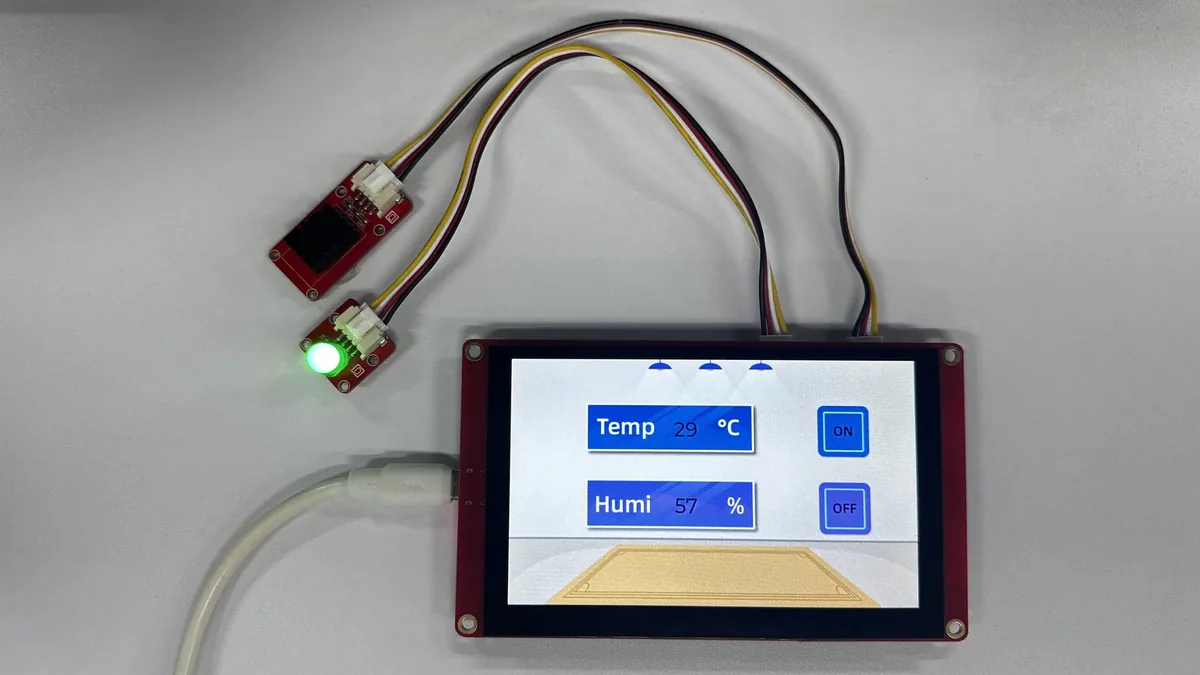

The example tutorial is an environmental monitoring project, demonstrate how to create a UI and use a DHT20 sensor to obtain the environment temperature and humidity and display it on the screen; and how to control the LED on and off by the buttons on the screen.

In this tutorial, we will show you how to design the UI with SquareLine Studio, and show you how to upload the code with ESP-IDF.

gif2

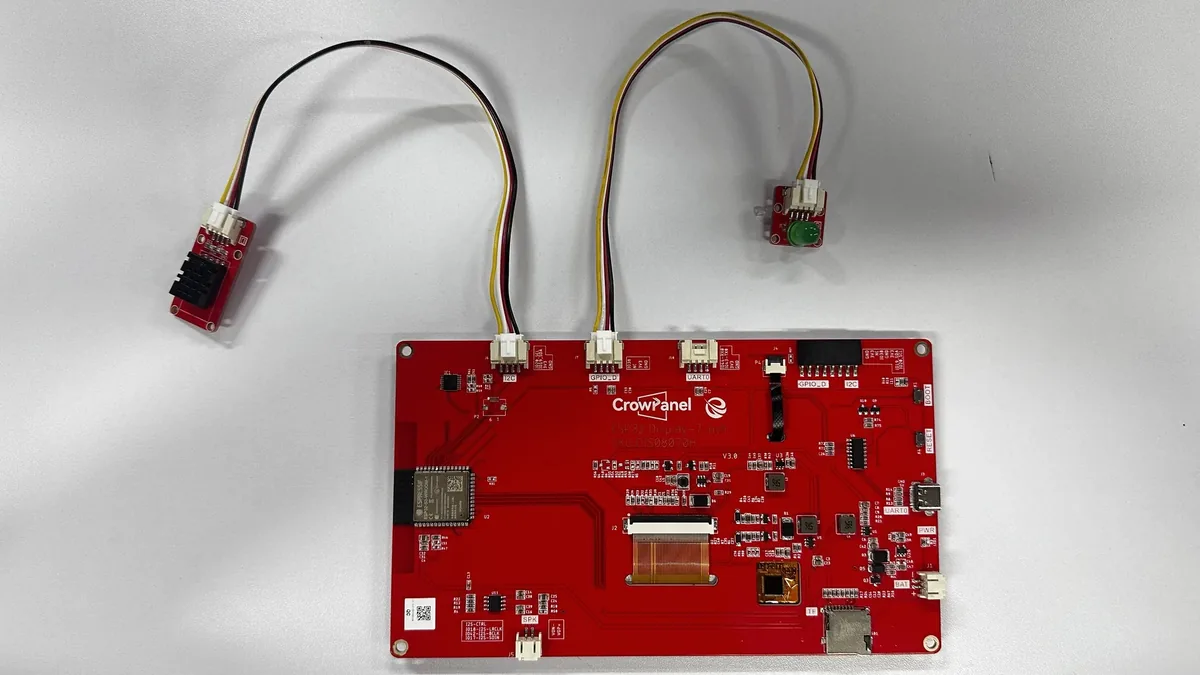

Hardware Preparation¶

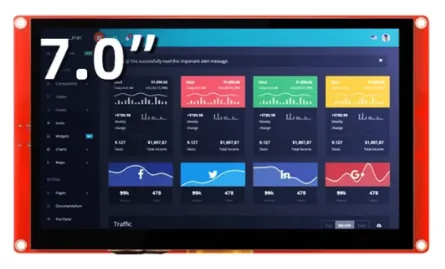

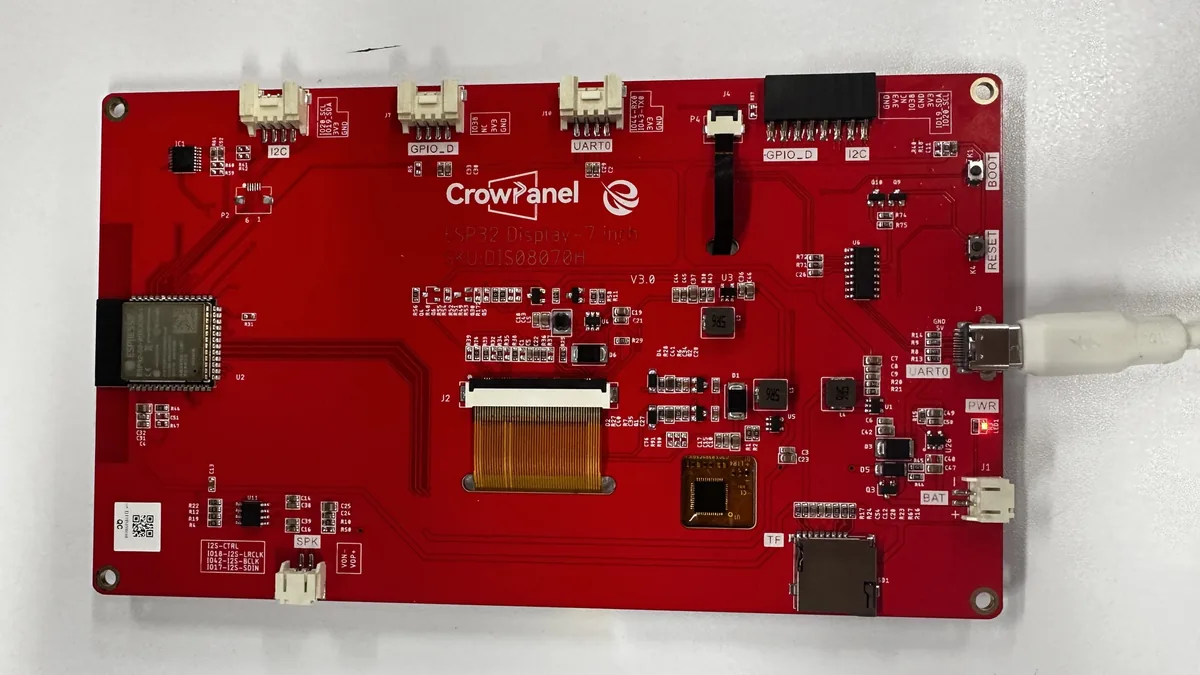

CrowPanel ESP32 7.0'' HMI	Crowtail-DHT20	Crowtail-LED	Dupont-wire

Design UI file with SquareLine Studio¶

Get Started with SquareLine Studio¶

Please click the card below to learn how to download the SquareLine Studio, and how to export the demo UI file.

Design UI file with SquareLine Studio¶

Let's start learning how to create our own UI after getting an initial understanding of SquareLine Studio.

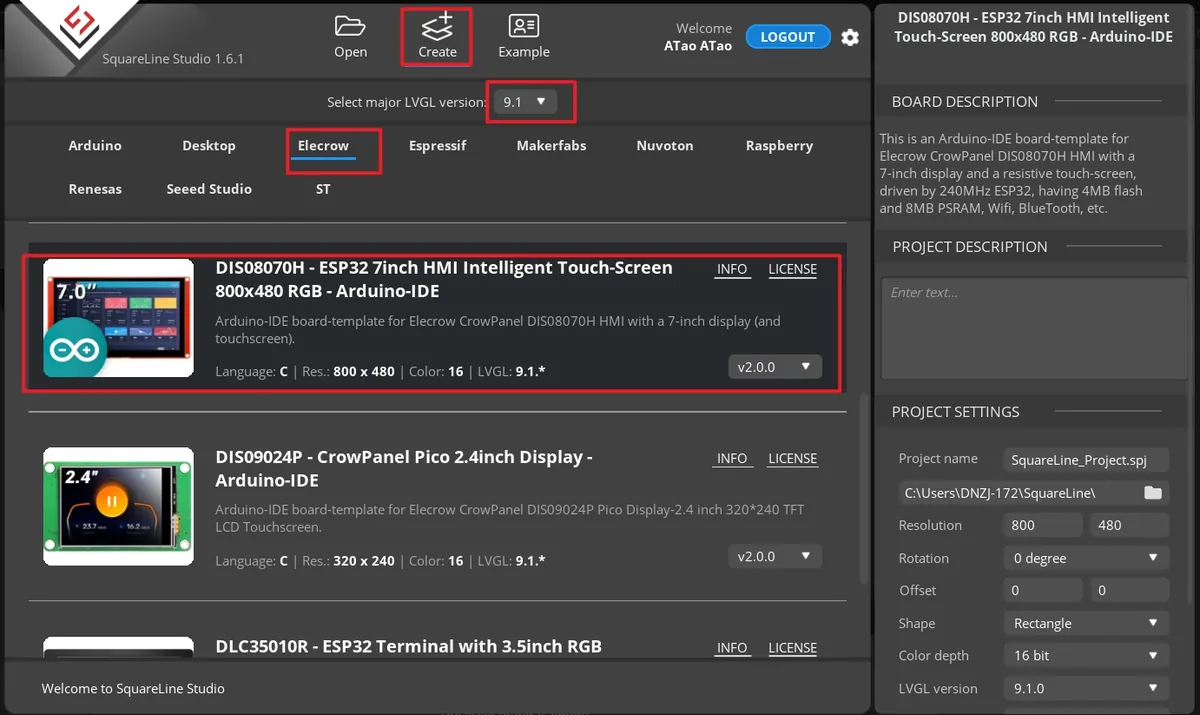

Open the SquareLine Studio and create a project.

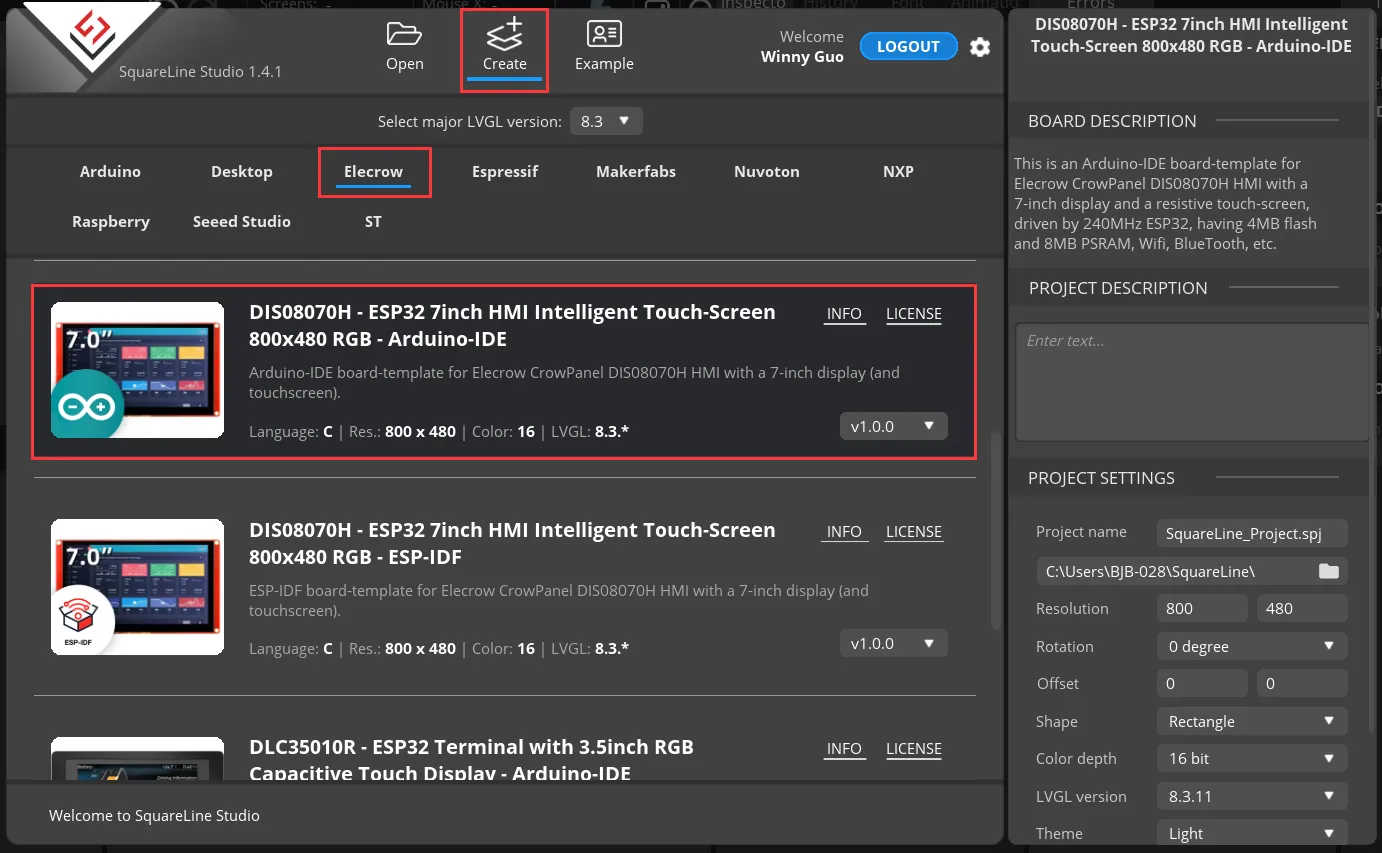

A. In the latest version of SLS, select "Elecrow"->"DIS08070H...Arduino-IDE"

B. In the earlier version of SLS, select "Arduino"->"Arduino with TFT_eSPI".

Note：

After using SLS to generate UI code, we then use different graphics libraries according to different hardware and modify the corresponding code to display the content you design.

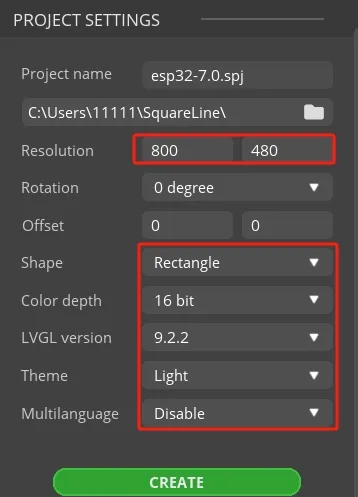

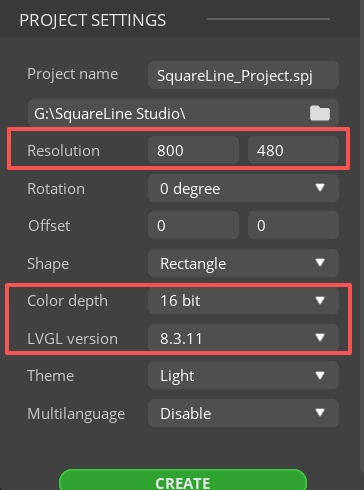

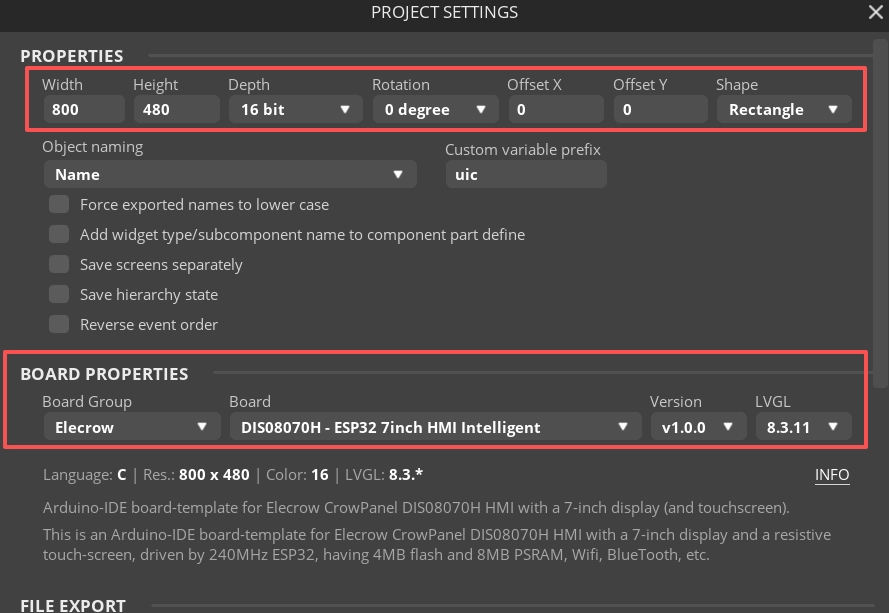

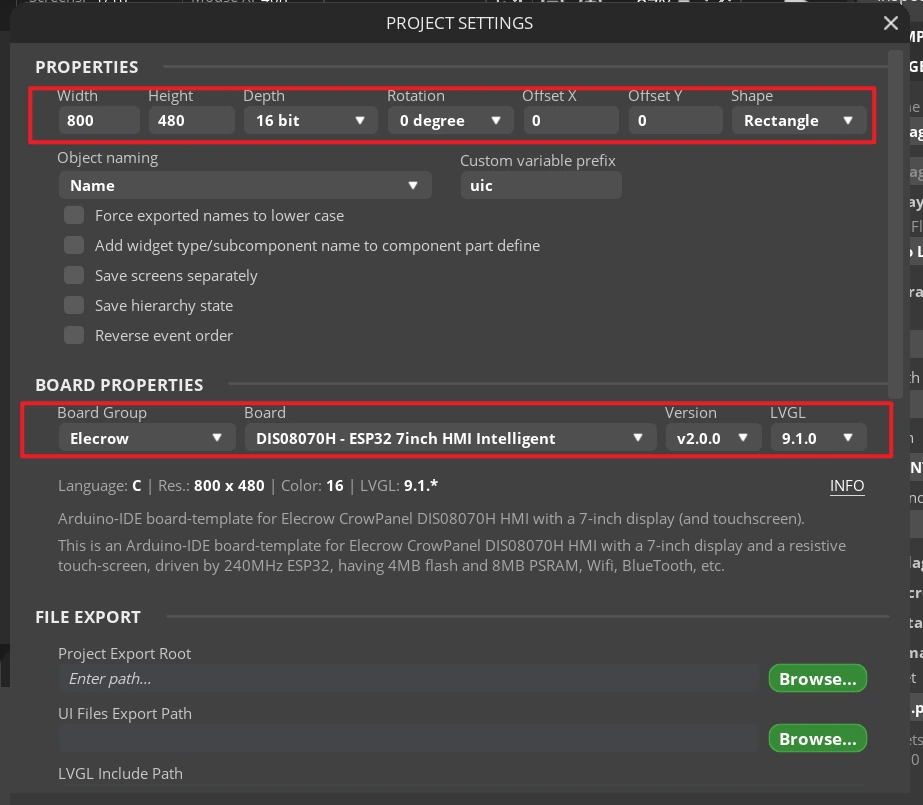

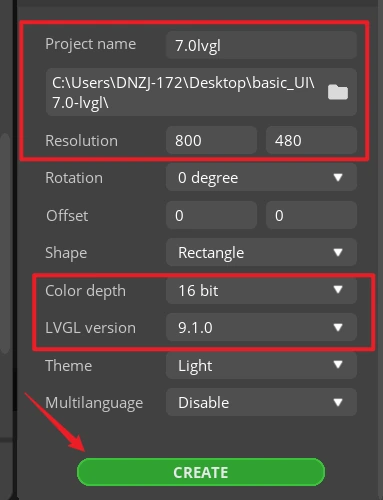

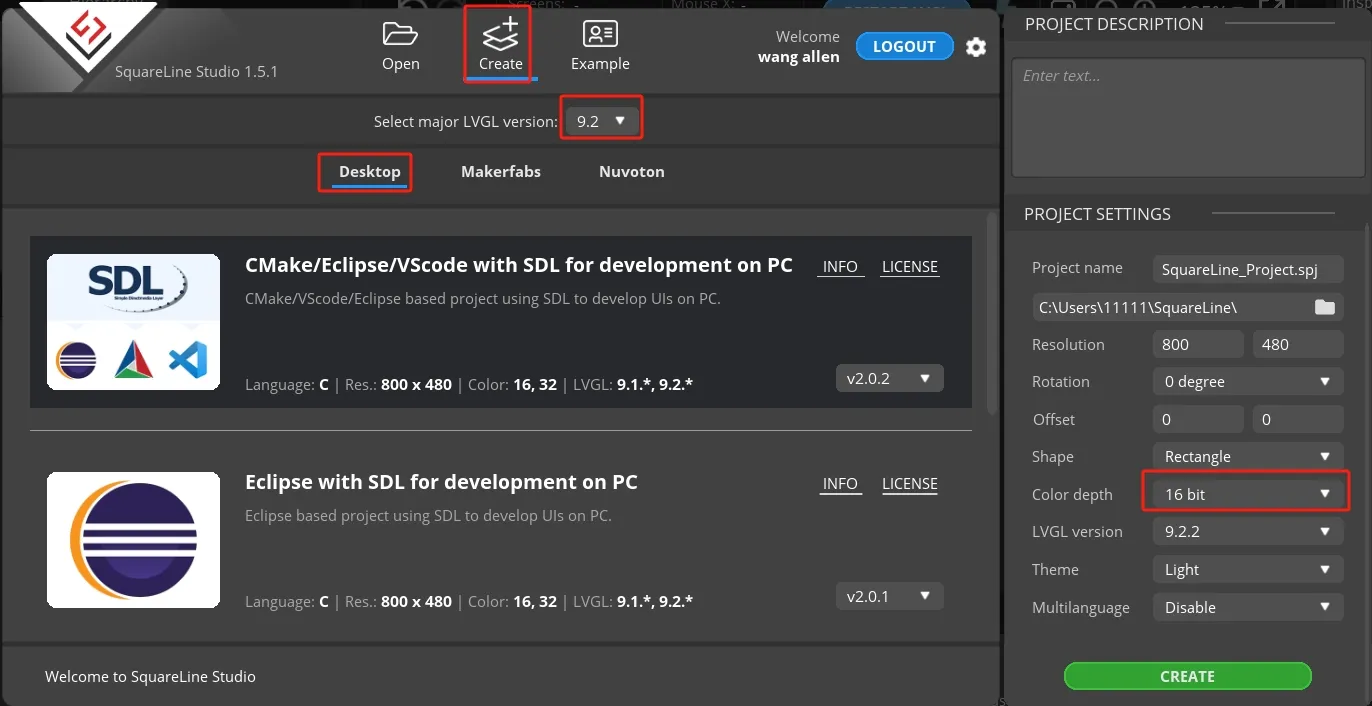

Set the name of the project, set the screen resolution to 800*480, set the color depth to 16bit, and keep other default settings. After setting, click CREATE to create the project.
- 16-bit color depth: can represent 65,536 colors through RGB 5:6:5 sub-pixel representation, that is, each RGB channel occupies 5 bits and 1 bit (a total of 16 bits) to represent colors.

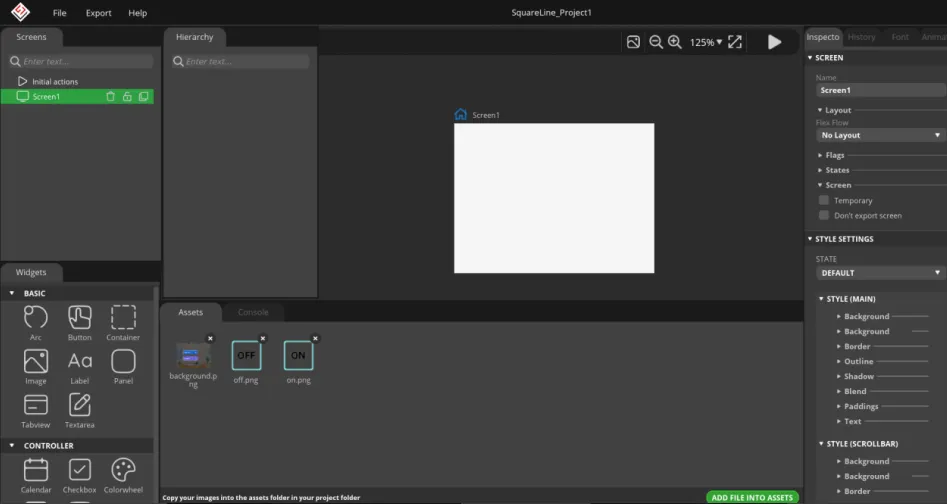

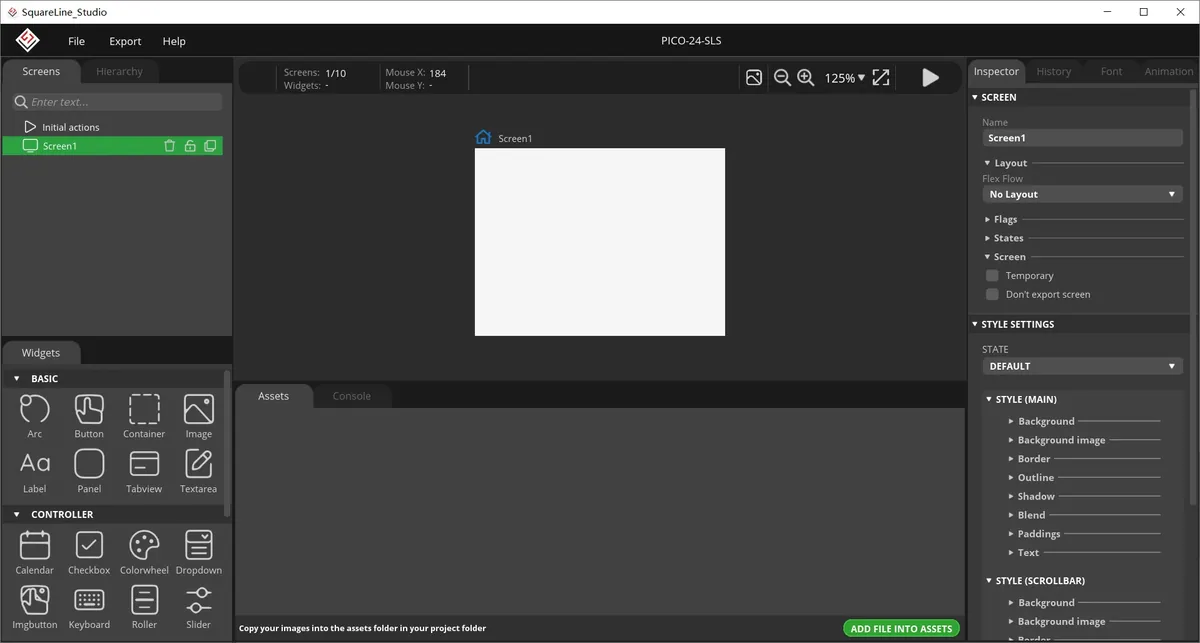

After creation, enter the following interface with a blank background.

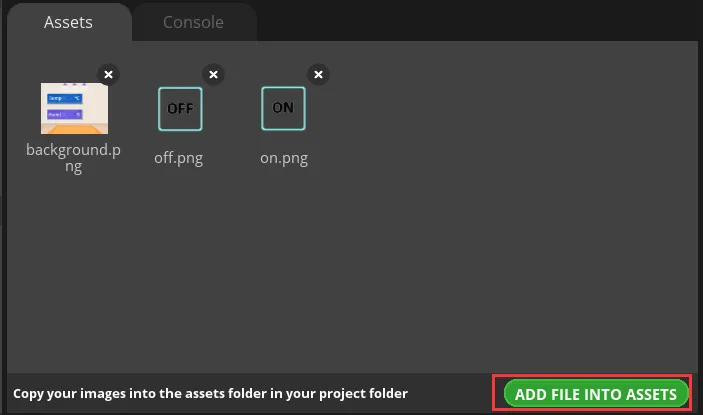

In the "Assets" area, click "ADD FILE TO ASSETS" to add custom images or icons.

Please click to download the custom images used in this tutorial.

Note：

Images only support PNG format. The pixels of the image need to be smaller than the pixel size of the screen used in your project. The size of each image should not exceed 100k, preferably within 30k, to provide a smooth display effect.

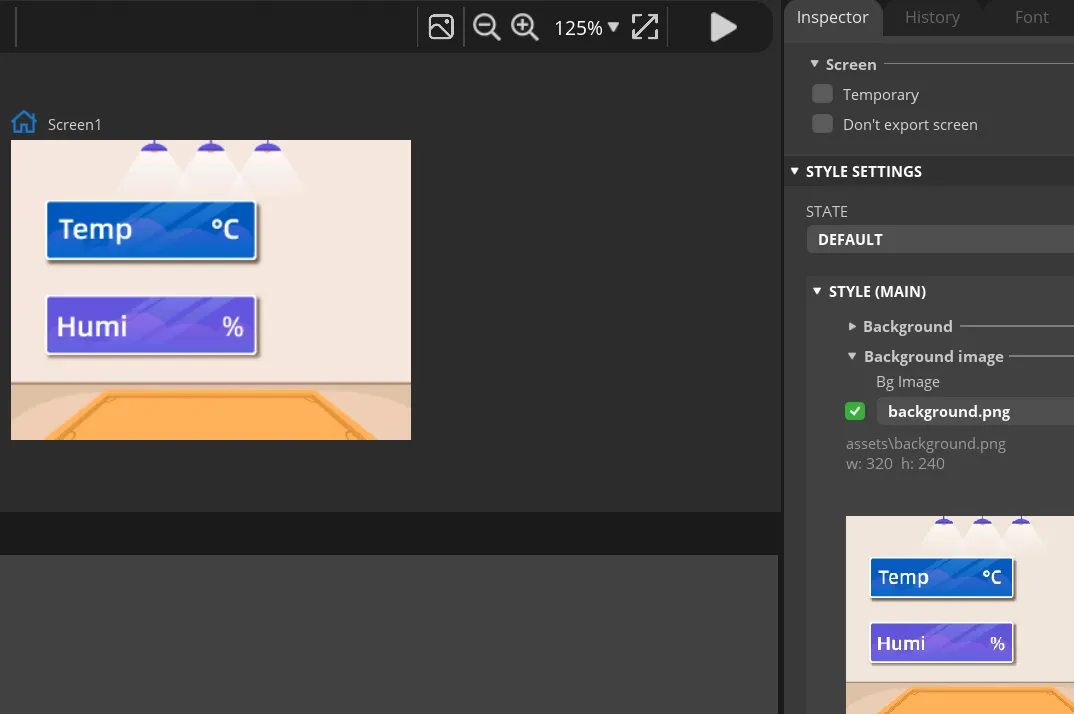

Add background.

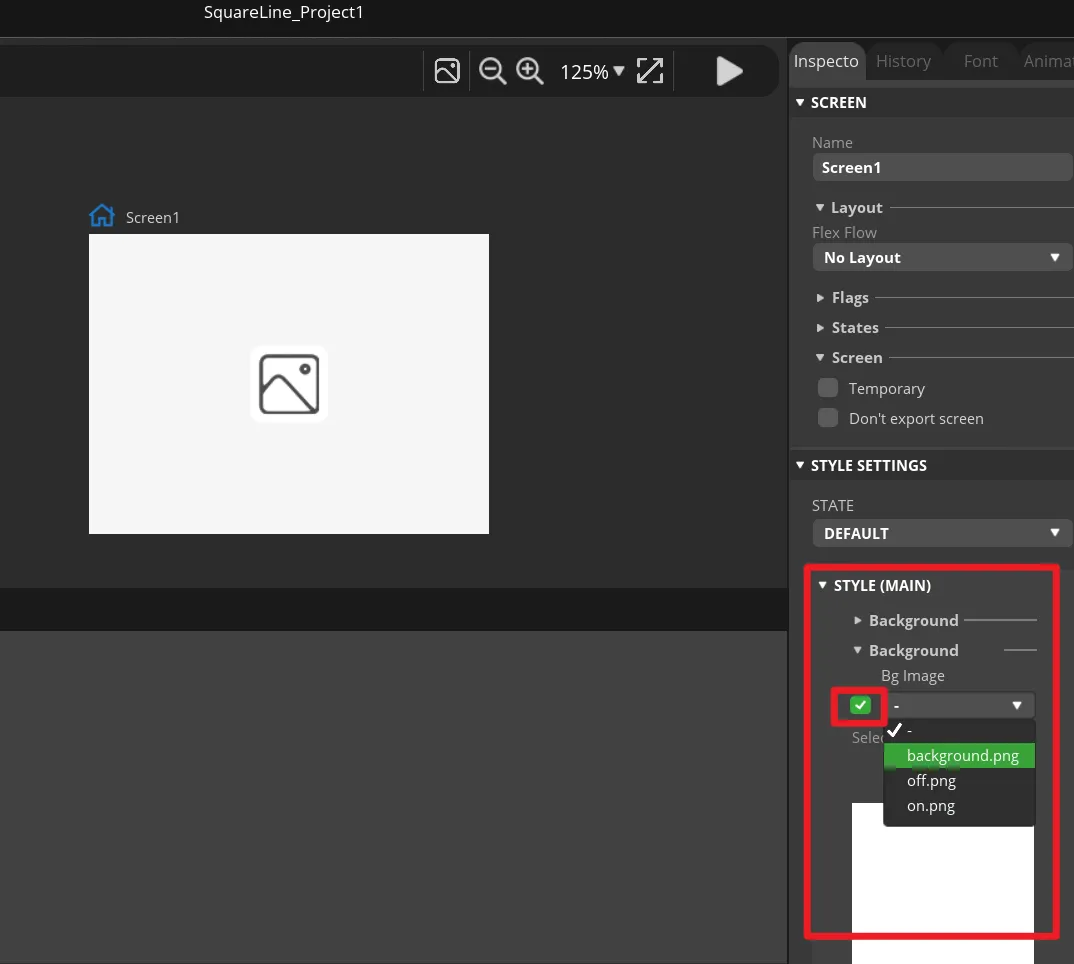

Find "Inspector"->"STYLE SETTING", click to expand "STYLE(MAIN)", then click the 2^nd "Background". Check the "Bg Image" and select the background image.
Add Label widget to display temperature and humidity.

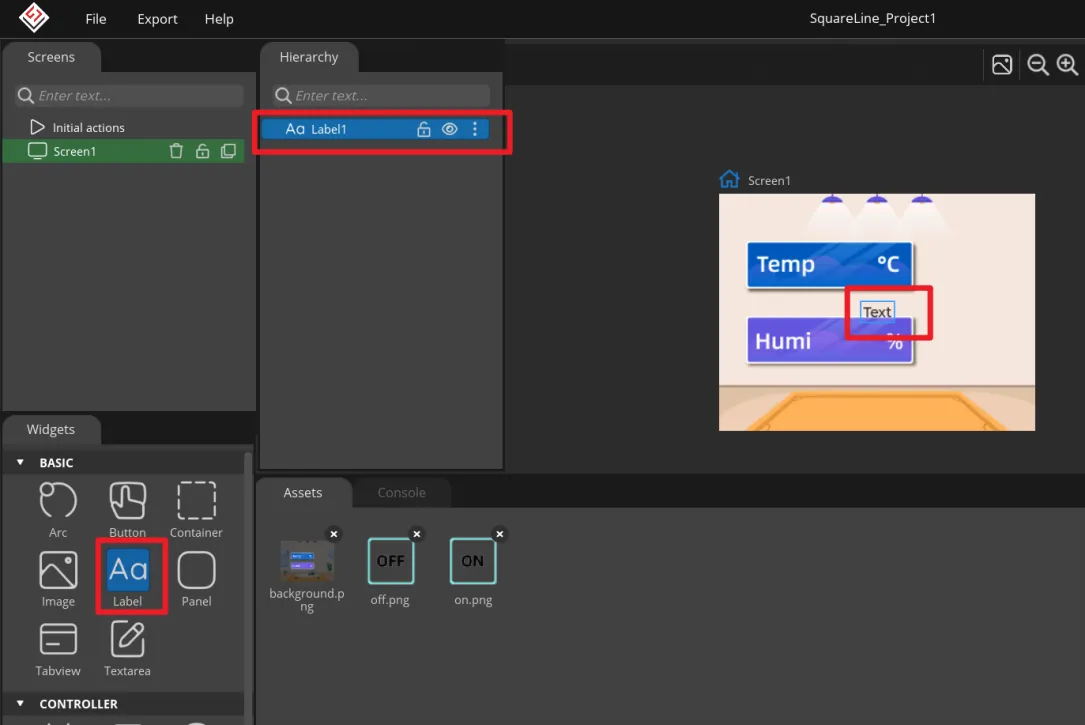

Click "Label" in the "Widgets" area, and "Label1" will be added to the current Screen.

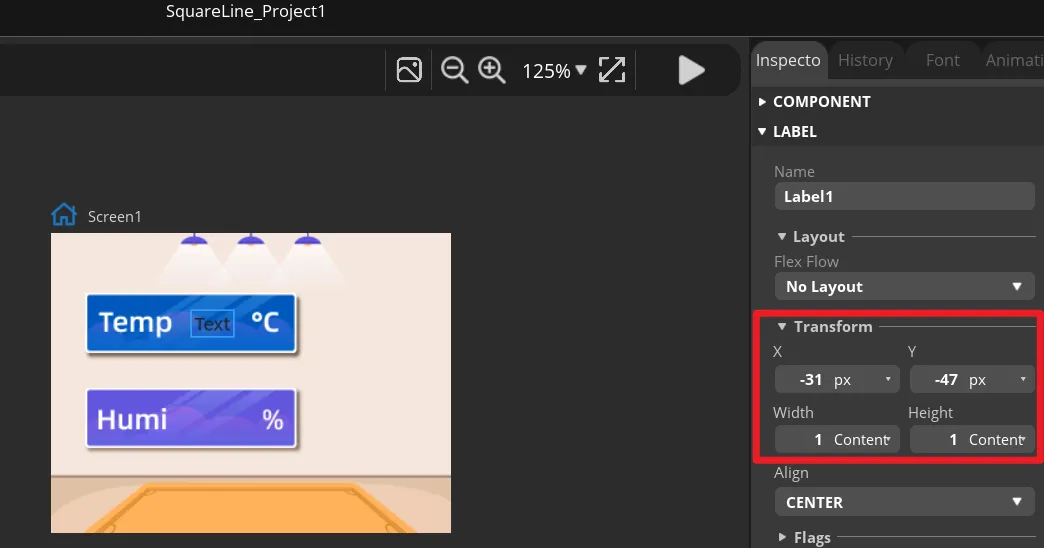

The position and size of the label can be adjusted by dragging the mouse. You can also directly enter numbers in the Inspector→LABEL→Transform to adjust.

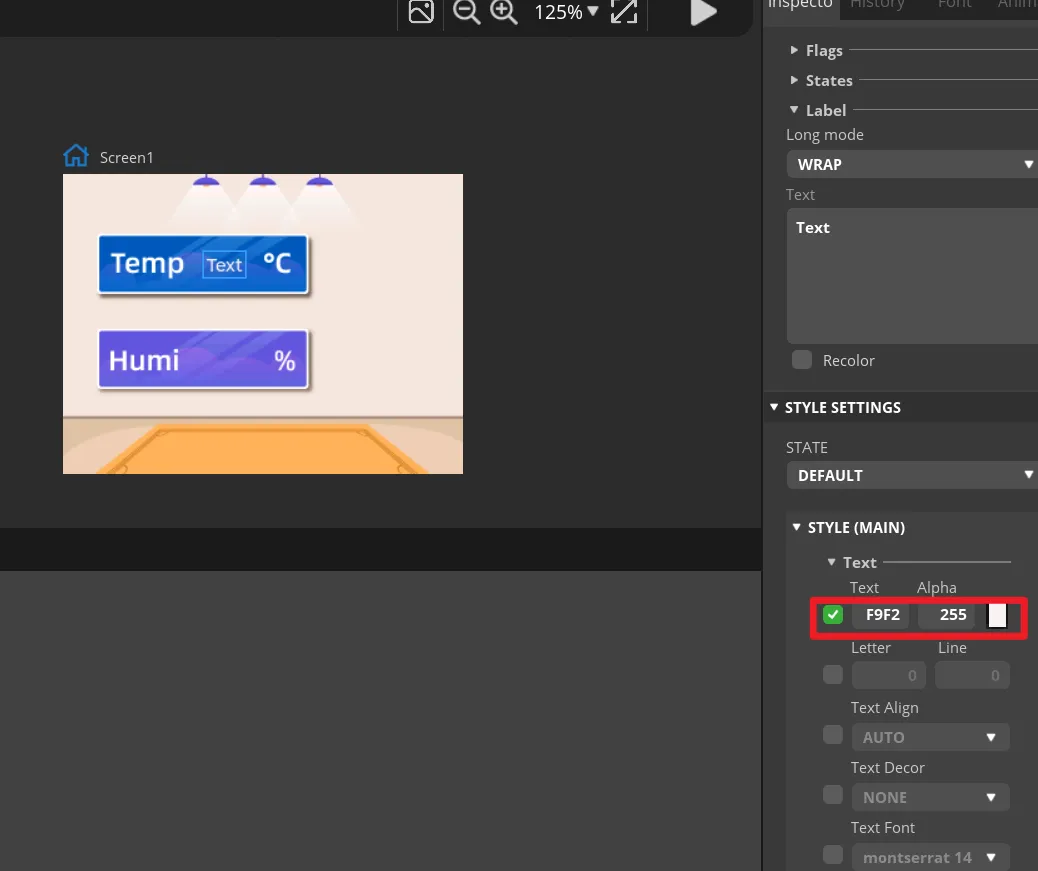

You can set the font colour and other attributes in STYLE SETTING→STYLE(MAIN).

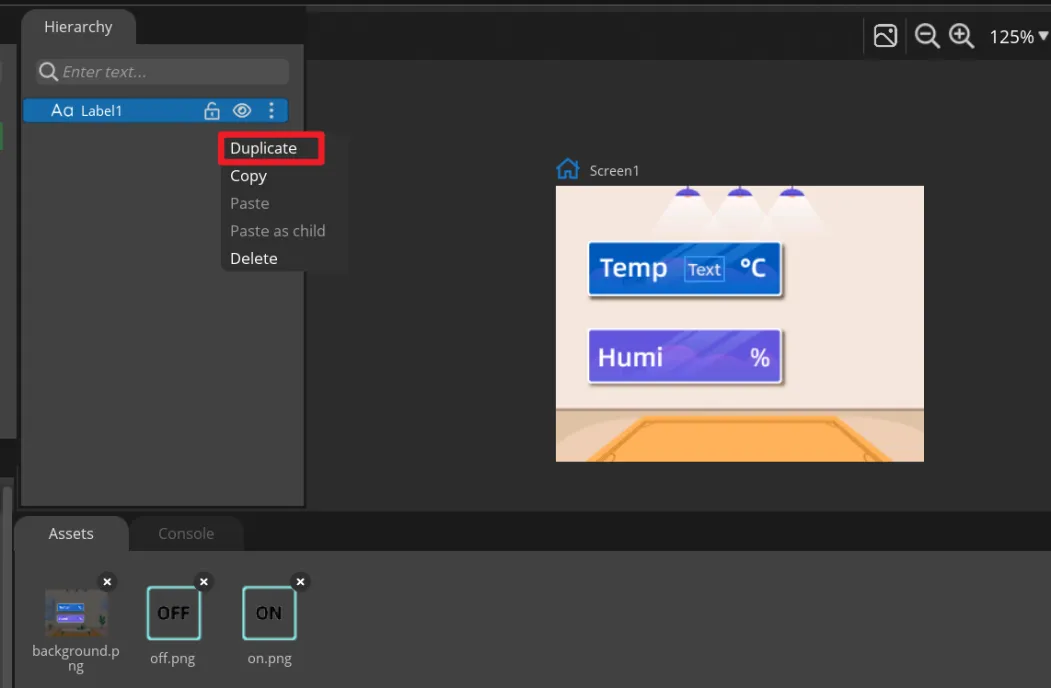

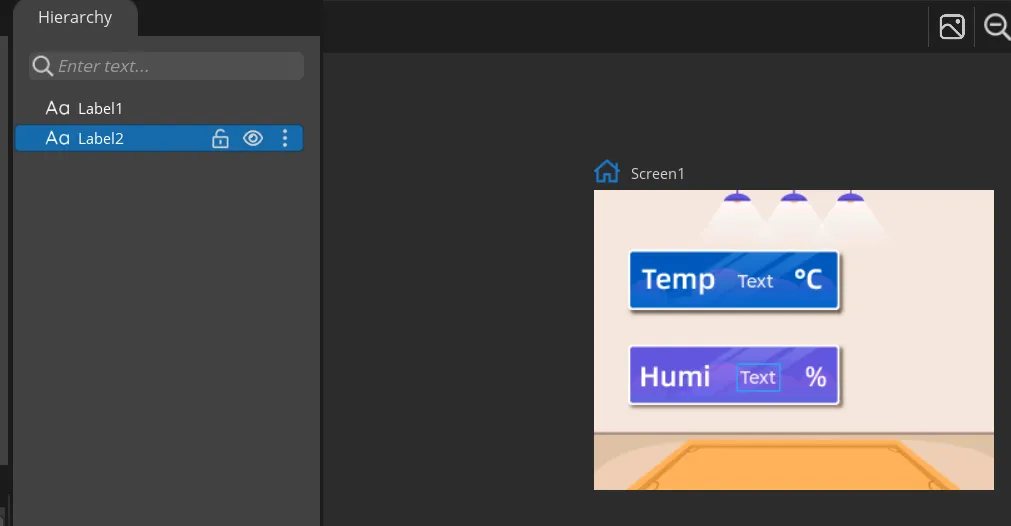

Add a Label2 to display the humidity value in the same way. You can also directly right-click the Label1 to duplicate it.

Then set different positions for the Label2.

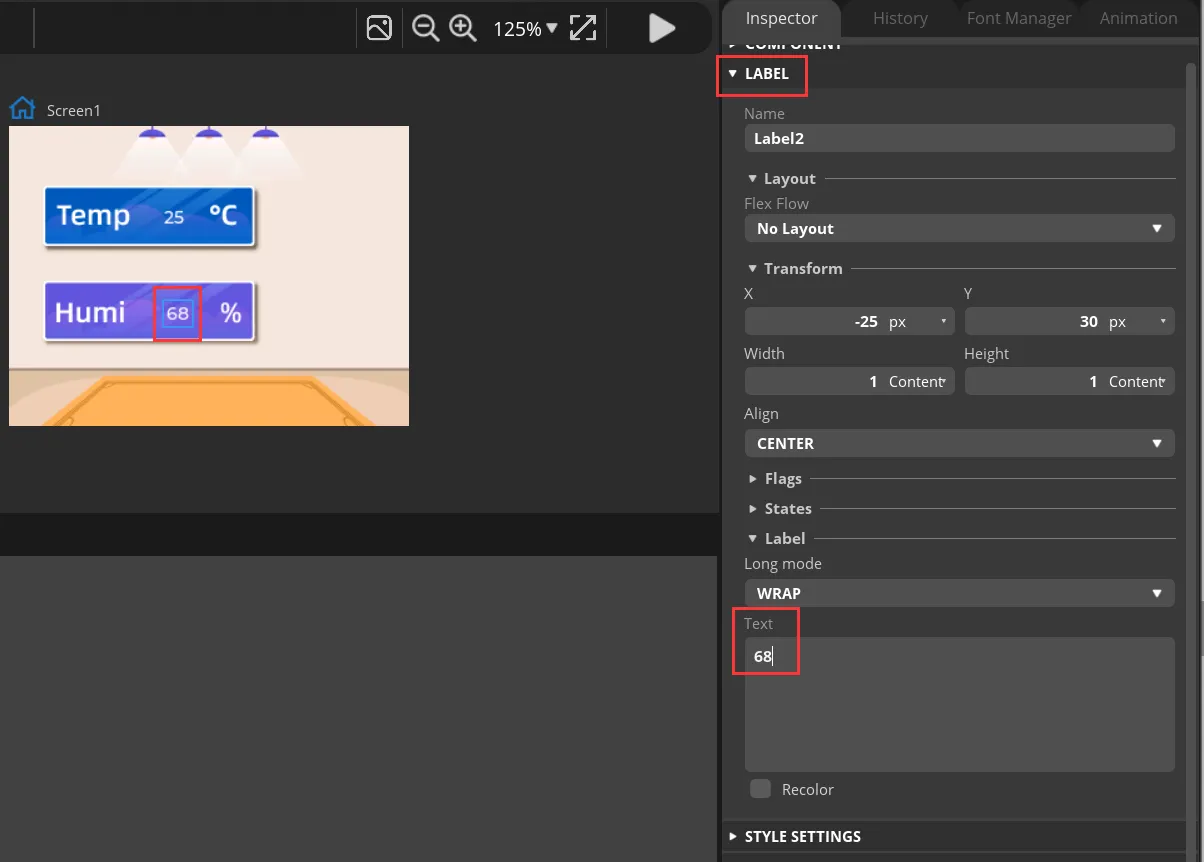

Modify the text content to display a default value.
Add Button widget to control the LED.

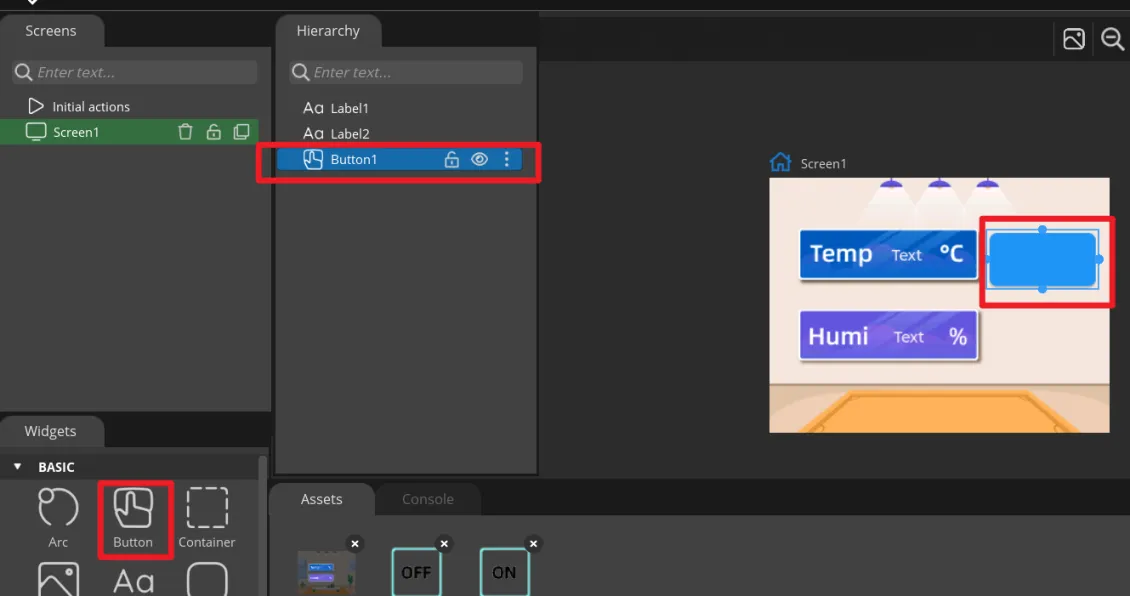

Click "Button" in the "Widgets" area, and "Button1" will be added to the current Screen.

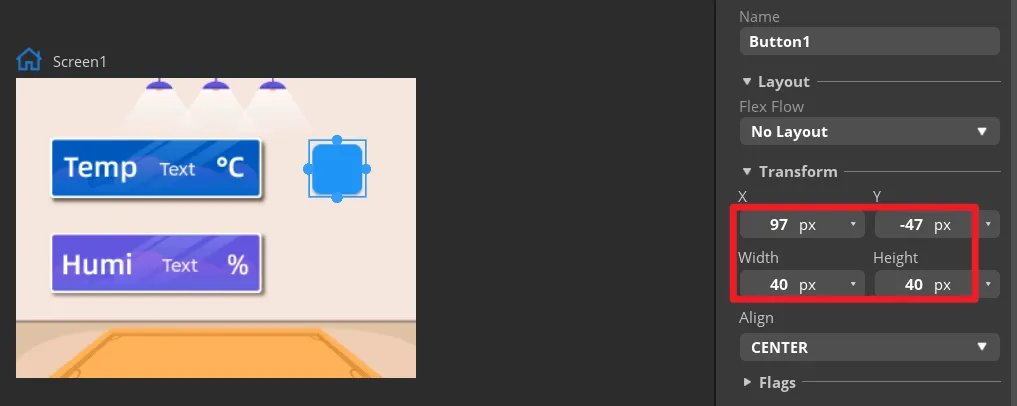

The position and size of the label can be adjusted by dragging the mouse. You can also directly enter numbers in the Inspector→BUTTON→Transform to adjust.

Add an identification symbol to the button. The button in this tutorial controls the LED switch, so you only need to mark the button "on" and "off". You can add LABEL widgets or add a background images to the button. This tutorial will demonstrate how to add a background image to a button.

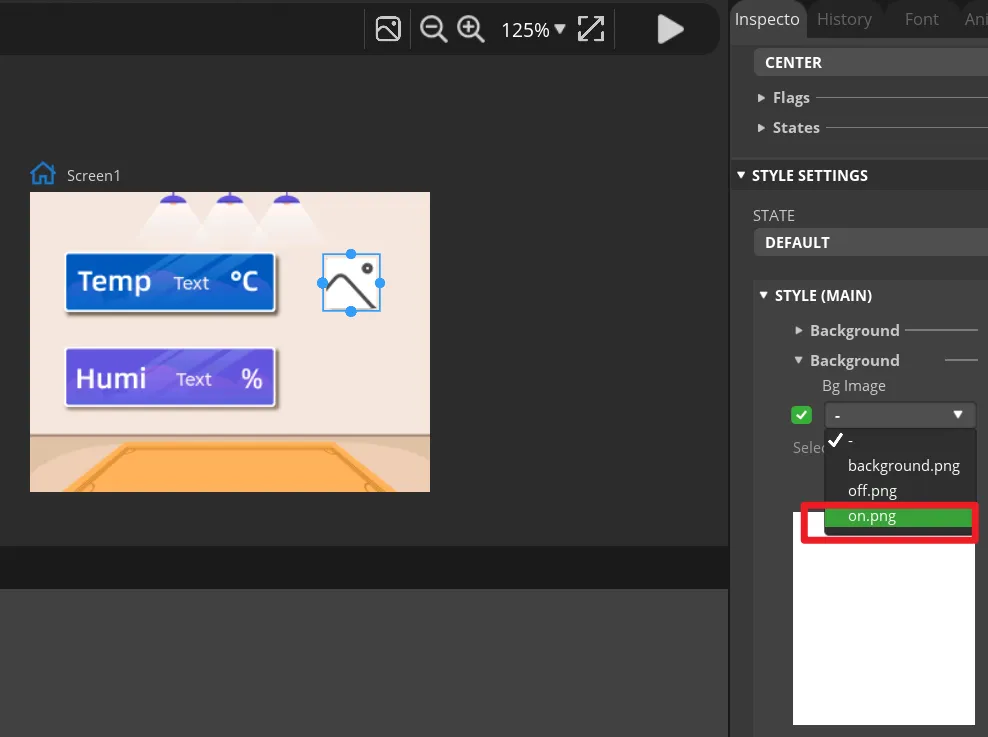

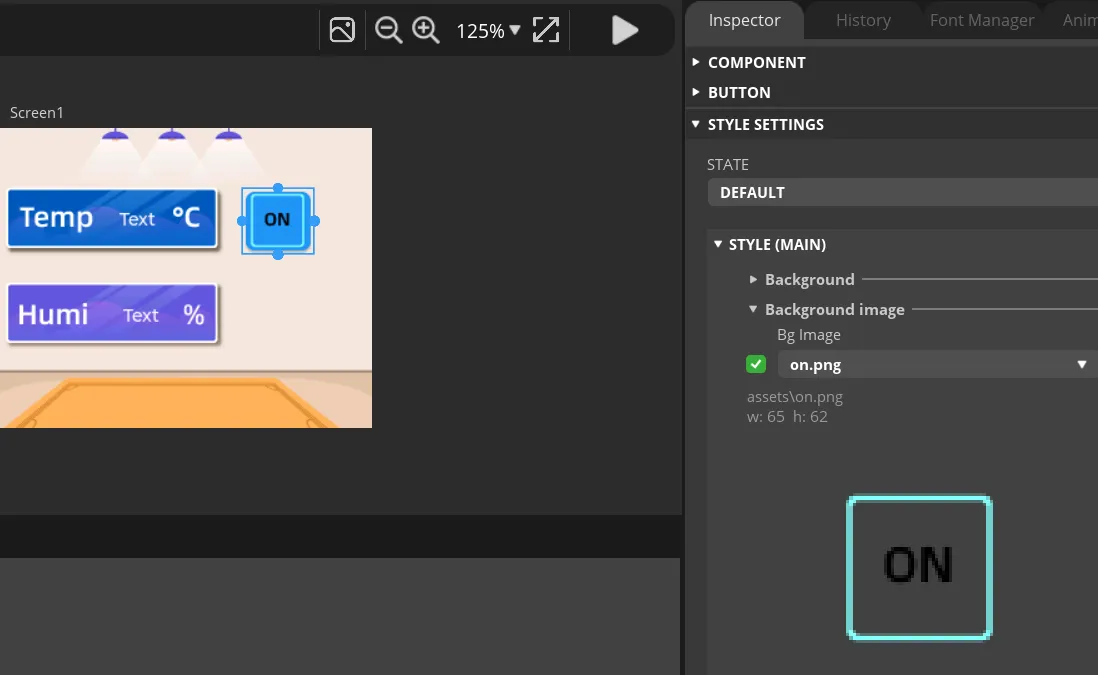

Click the Button1, then find Inspector->STYLE SETTINGS ->STYLE(MAIN) ->Background, and select the image.

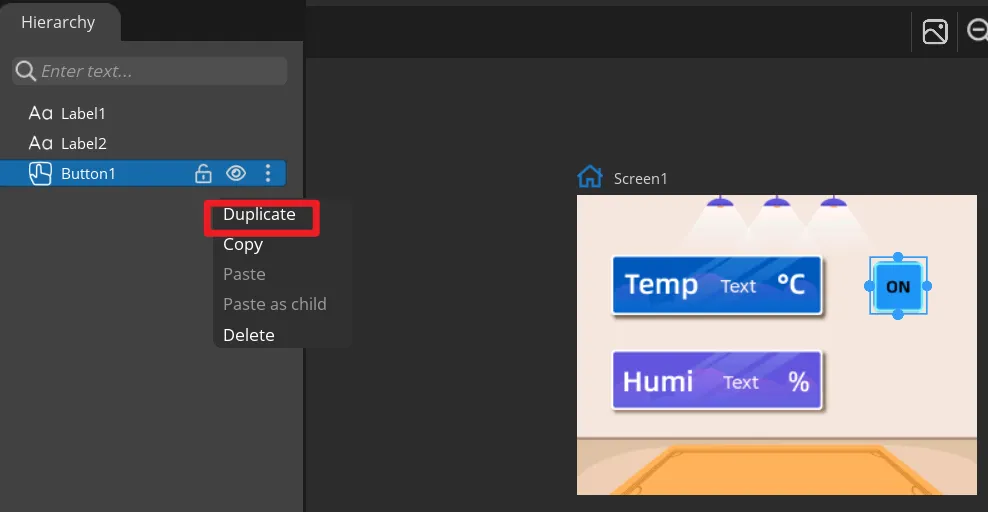

In the same way, duplicate a Button widget. And drag it to the corresponding position to modify different background image.

Set the status of the button to identify different states.

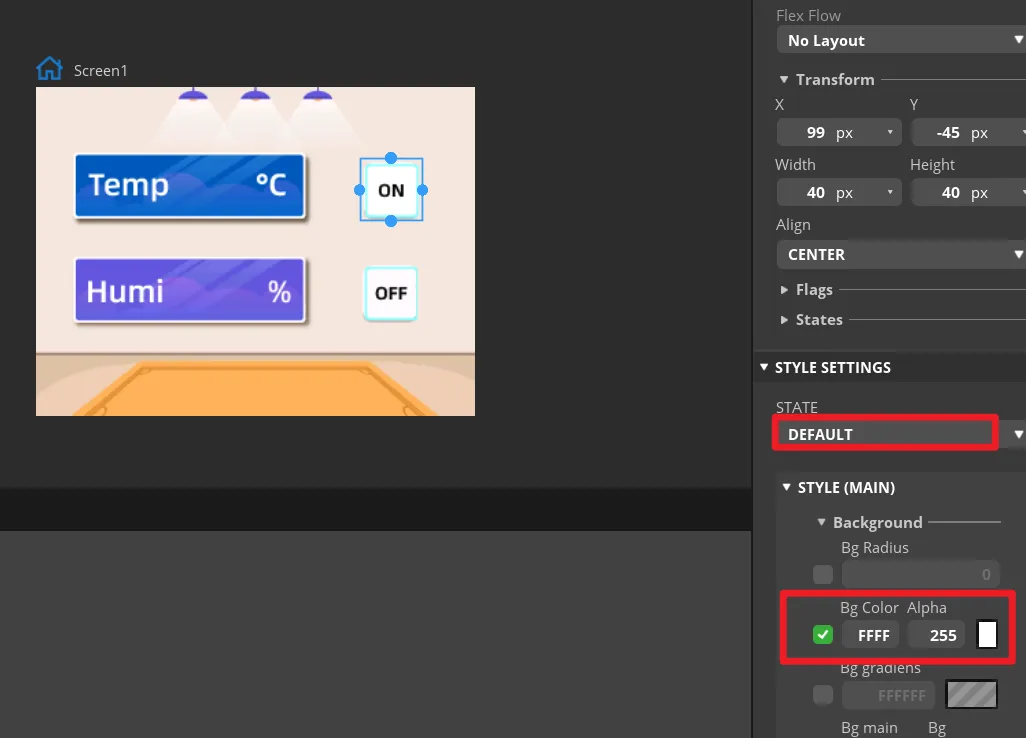

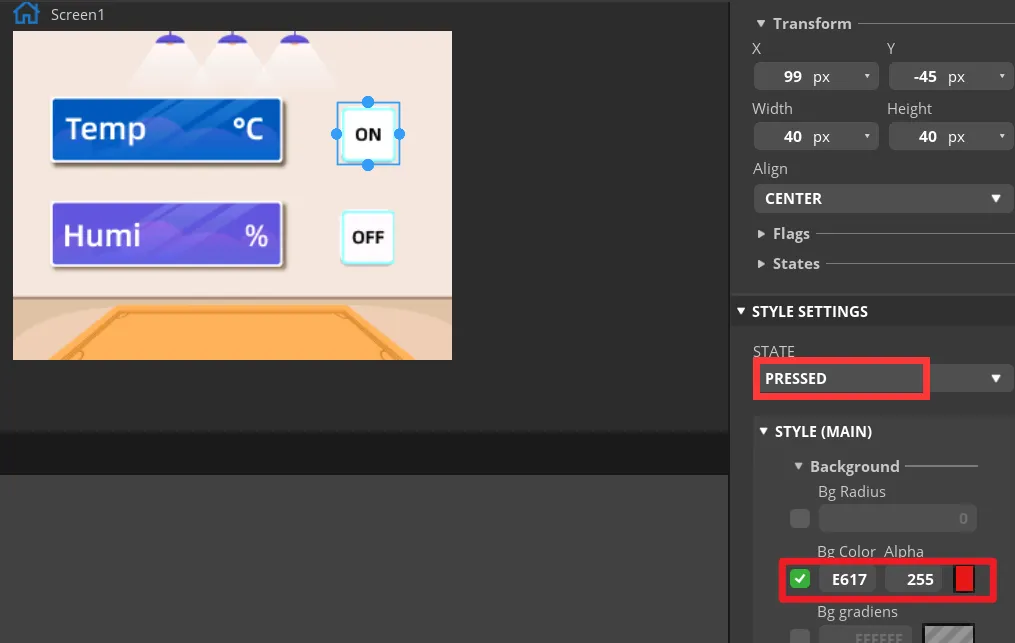

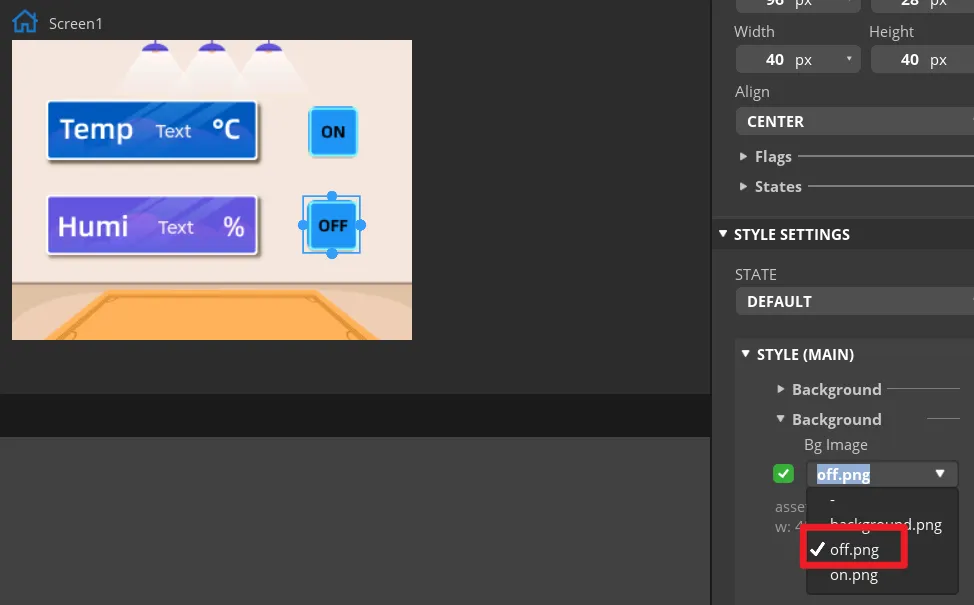

In "Inspector"->"STYLE SETTINGS"->"STATE", set display white background color by DEFAULT and red when on the PRESSED state.

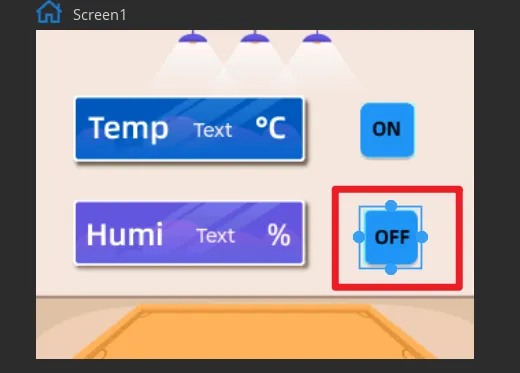

Make the same settings for the "OFF" button.
Add events to buttons.

Note: Because the button controls the on and off of the LED, we can add any event here to generate the code framework for the button event when exporting the UI file. We will modify the code of the button event to control the LED latter.

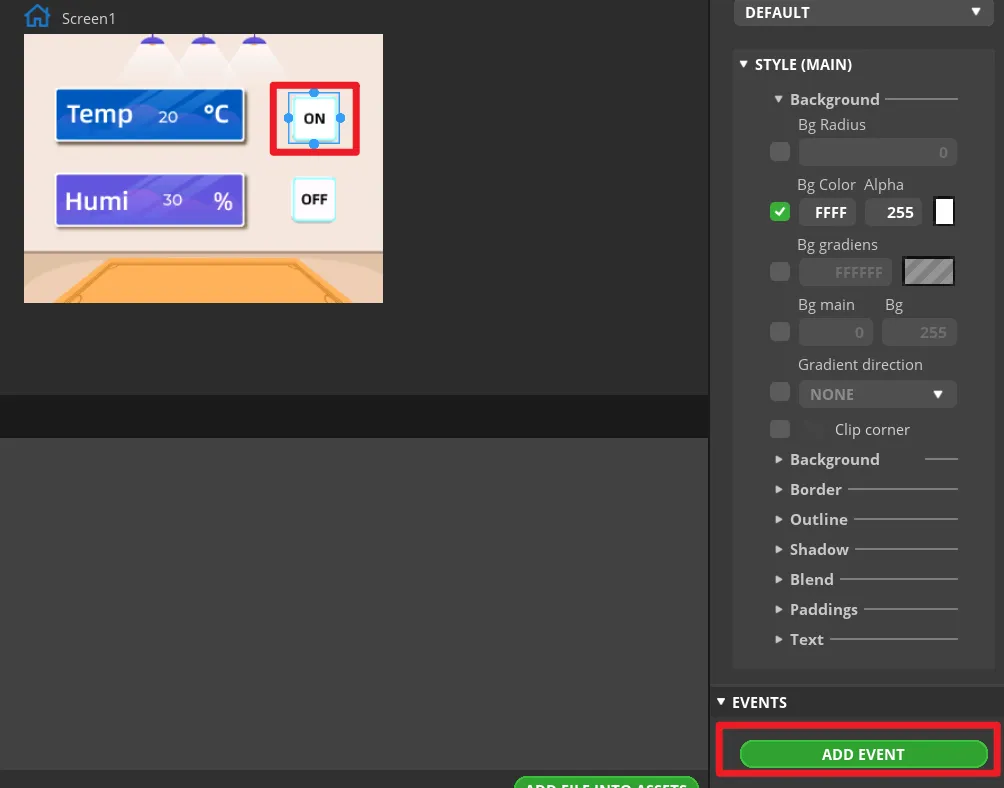

Select the button and click "ADD EVENT".

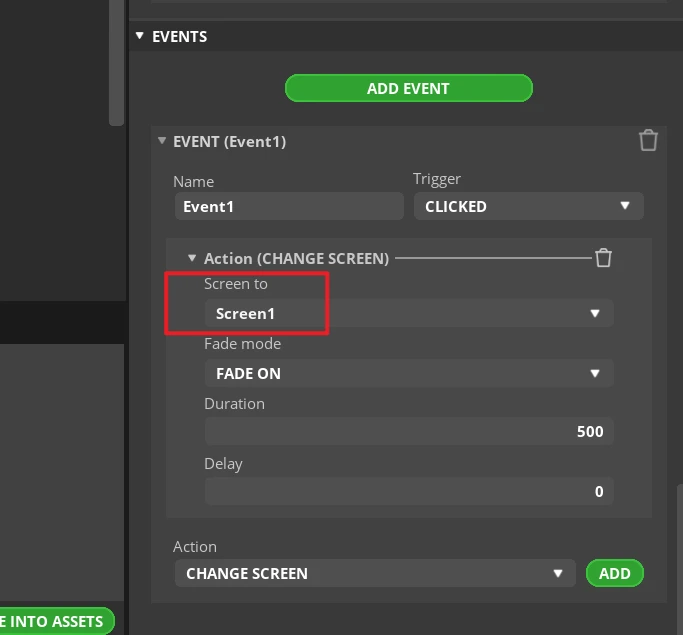

Select "clicked" as the trigger condition, select a trigger event in "Action". It will be modified in the generated program to achieve the LED control function.

Complete the event. Here I choose to change the screen, and the screen to be switched is Screen1.

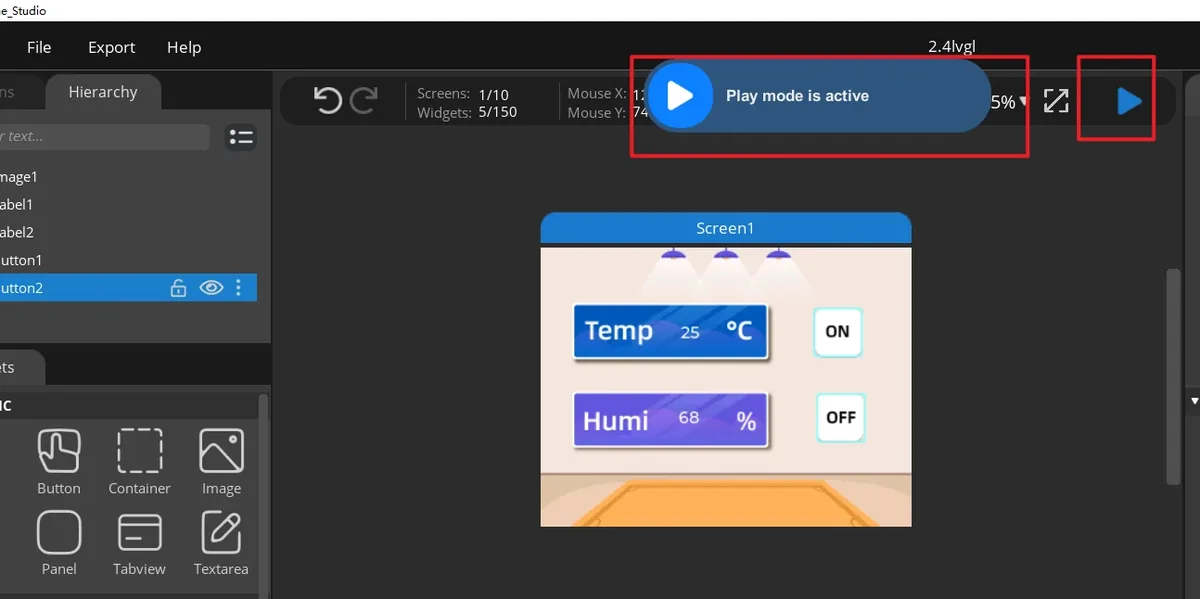

Add event to Button2 (OFF) in the same way.
Export UI files.

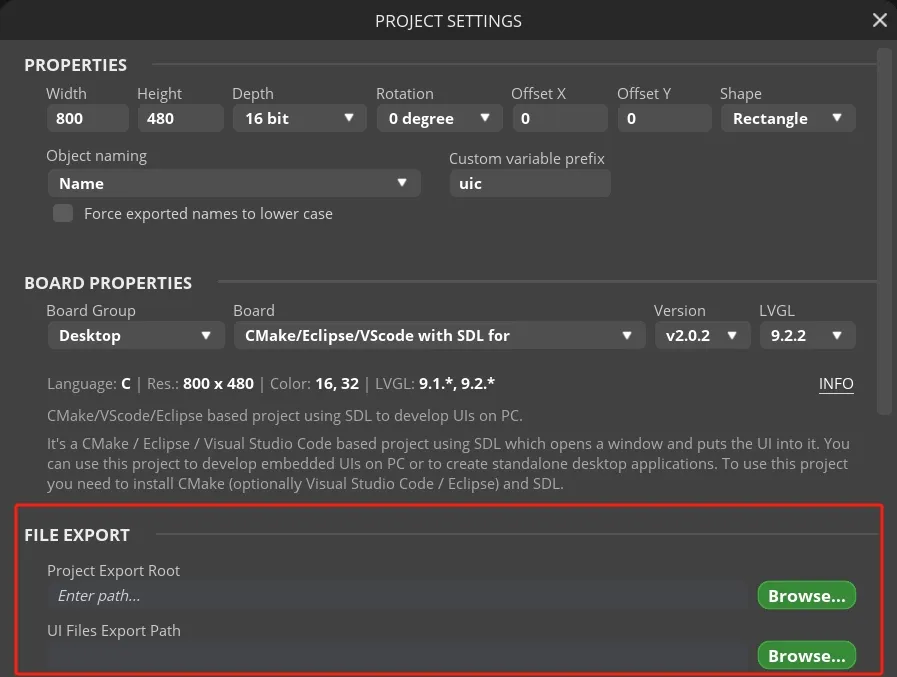

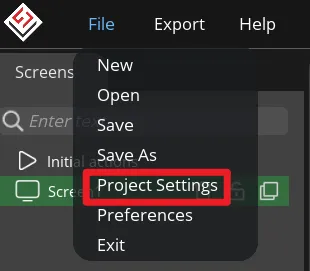

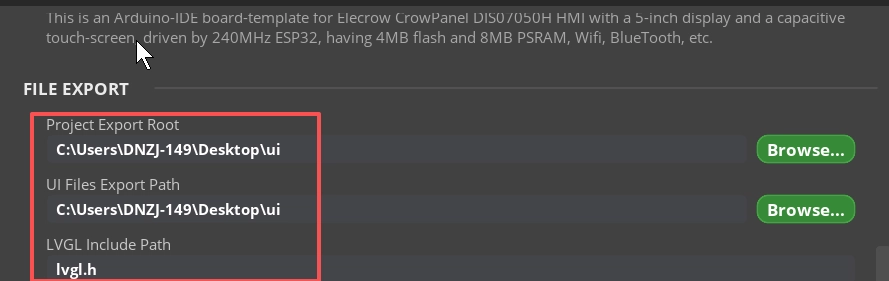

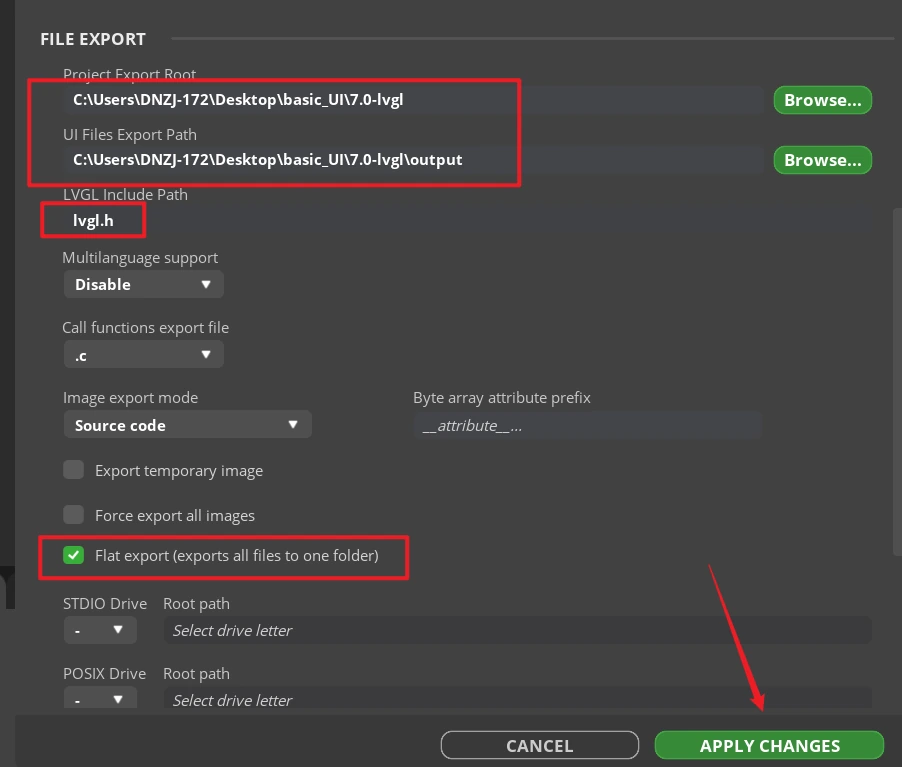

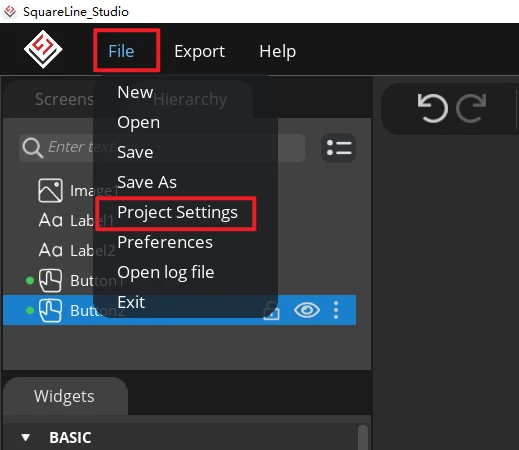

Click "File" -> "Project Settings" and make settings for the exported file.

Set the export path of the file (set the path according to your own file).

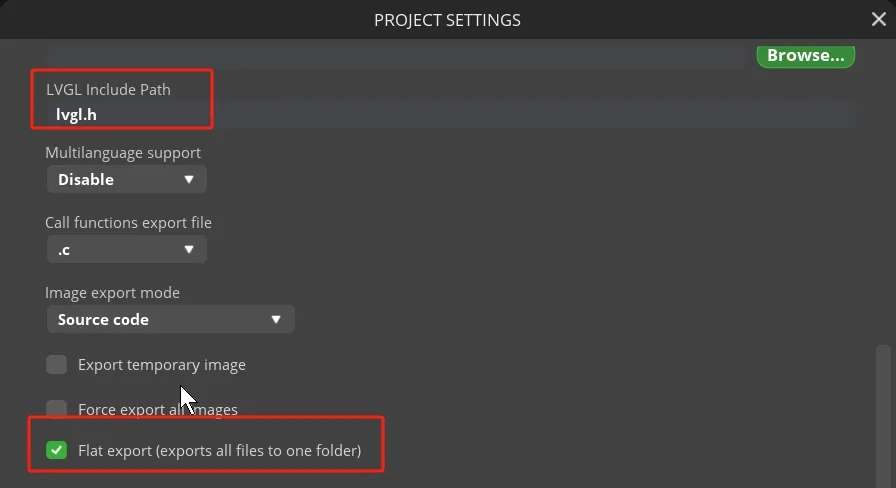

Fill in lvgl.h in LVGL Include Path. Check "Flat export(exports all files to one folder )".

Then click "APPLY CHANGES".

Tips: After selecting the flat export, the output files will be in the same folder, so that the output code does not need to modify the path in the program. If not, the output files will be classified and placed in different folders. The compiler may not be able to recognize different paths, which will cause some trouble. In this case, the user needs to modify it manually, so it is recommended to select all files to be output to the same folder.

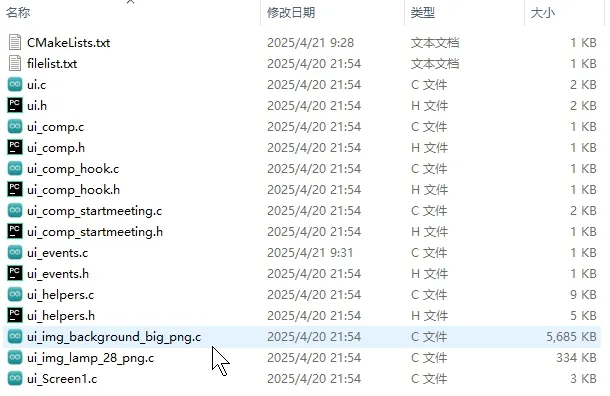

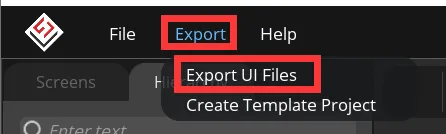

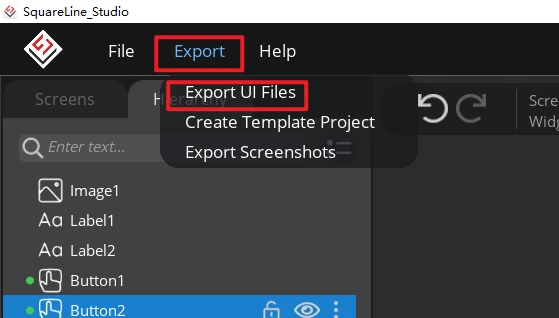

Export UI files. The exported files will be in the path we set earlier.

You can click to download the export UI files we provided.

Build the Project with ESP-IDF¶

Get Started with ESP-IDF¶

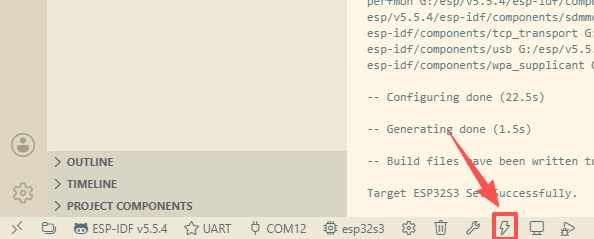

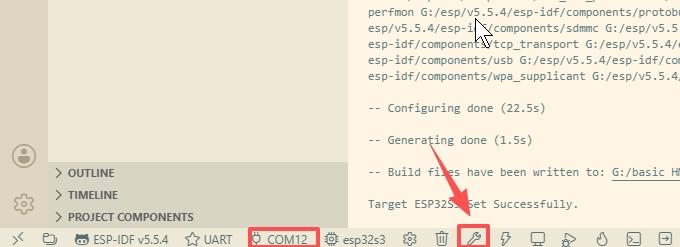

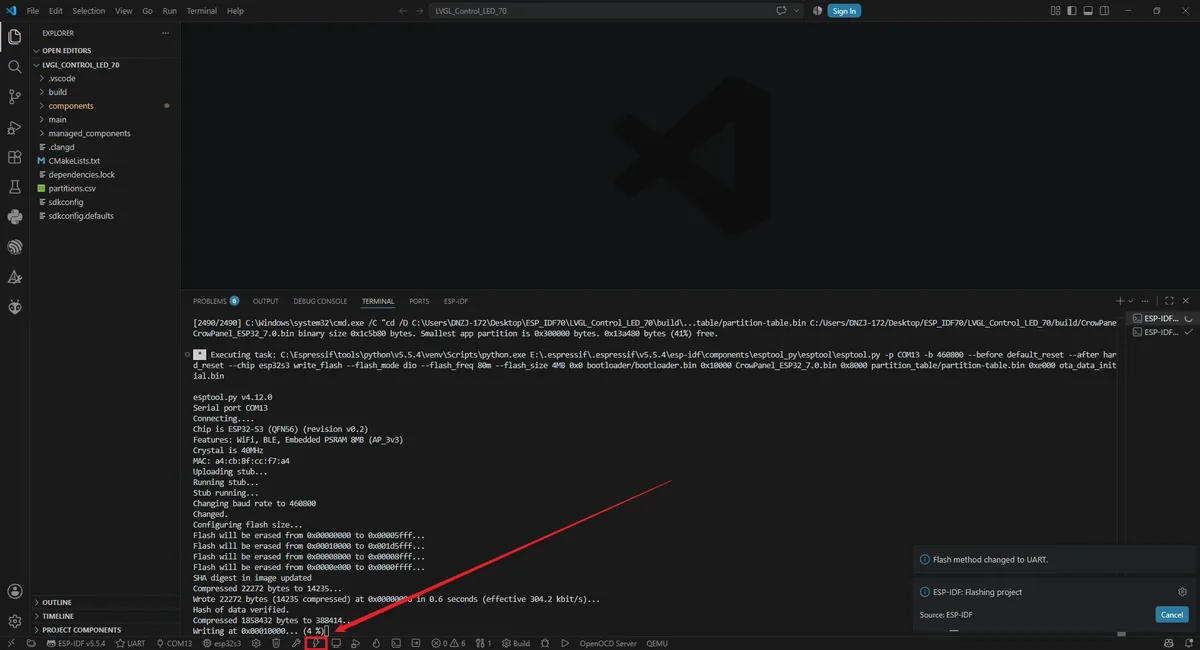

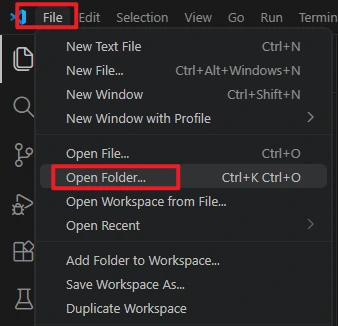

Please click the card below to learn how to install ESP-IDF. Create a blank project according to the "Get Started with ESP-IDF".

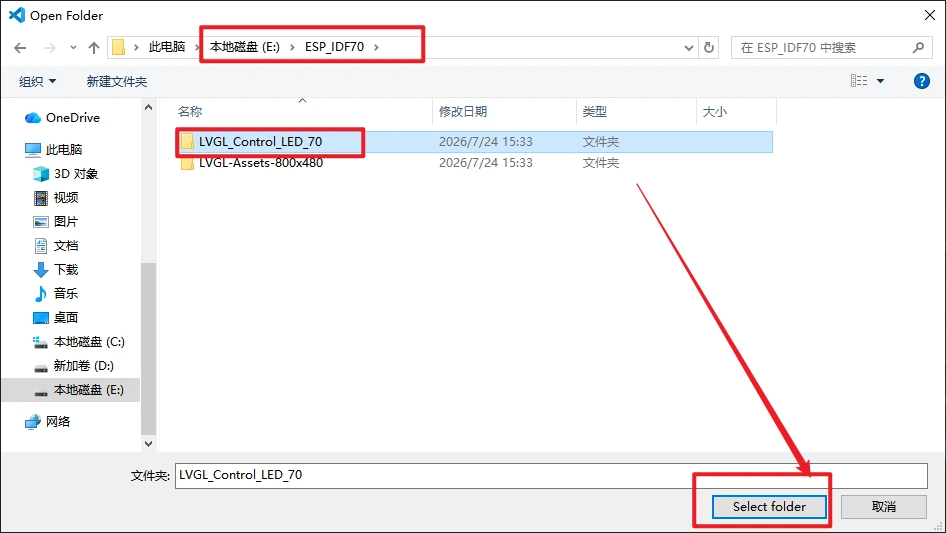

You can click to download the complete project we provided. This project can be used directly. You can also create the project by following the tutorial.

Add Libraries¶

Create a new folder and name the folder 'components'. Add the libraries we provided to this folder.

SLS-UI-36

Please click to download the libraries we provided.

Setup UI file¶

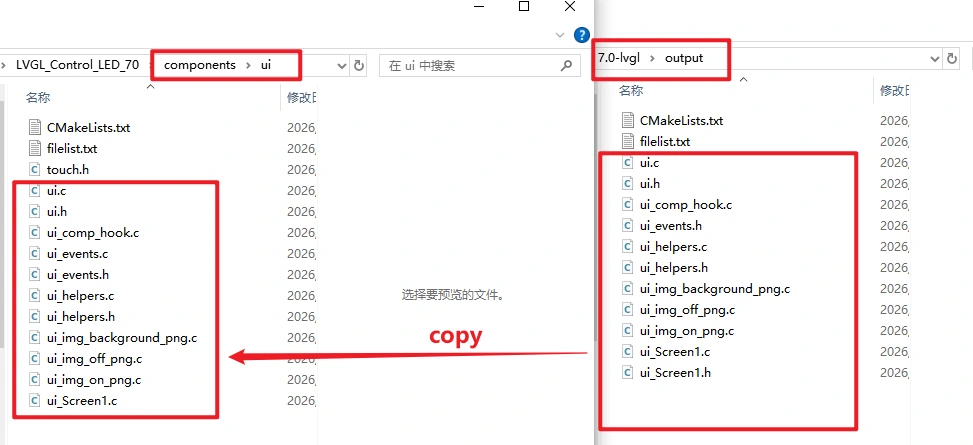

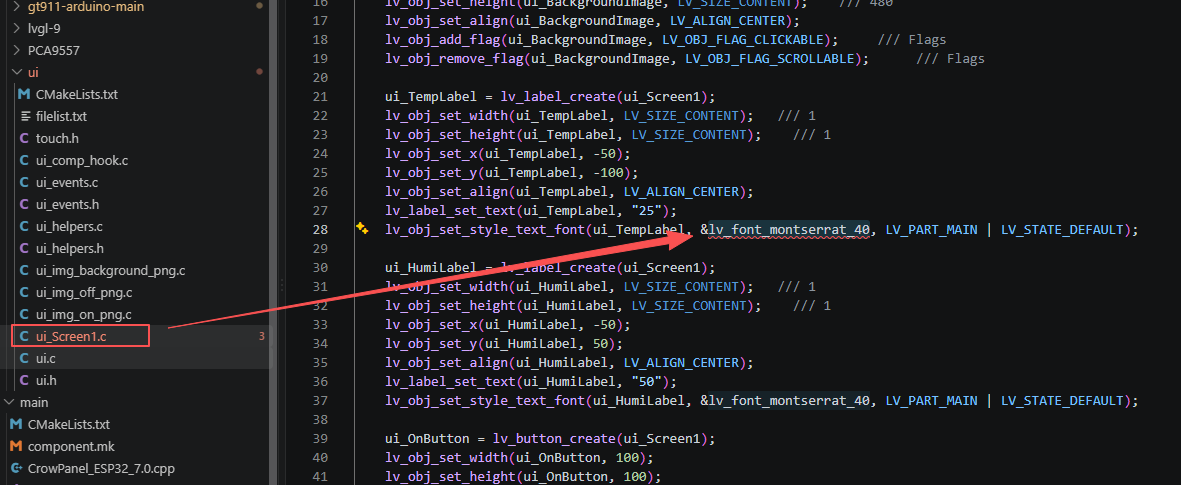

Add the UI file we exported earlier in Squareline.

SLS-UI-42

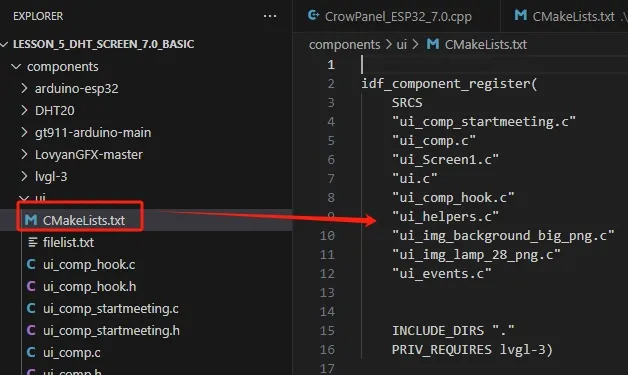

The CMakeList.txt file in the UI file needs to be modified as follows:

Before modification

SET(SOURCES ui_comp_button2.c
   ui_comp.c
   ui_Screen1.c
   ui.c
   ui_comp_hook.c
   ui_helpers.c
   ui_events.c
   ui_img_background_png.c
   ui_img_on_png.c
   ui_img_off_png.c)

add_library(ui${SOURCES})

After modification

SLS-UI-37

Define a variable in the ui.h file. In the main program by judging the value of this variable, control the LED light on and off.

SLS-UI-38

Locate the FUNCTION location in the ui.c file. This is the code we generated when we added events to squareline. We modify the event implementation function to what we need.

SLS-UI-39

Delete the code in the red circle in the image above. Add new code to assign values to led variables.

When the key 1 (ON key) is pressed, set the LED value to 1.

SLS-UI-34

When key 2 (OFF key) is pressed, set the LED value to 0.

SLS-UI-35

Setup main file¶

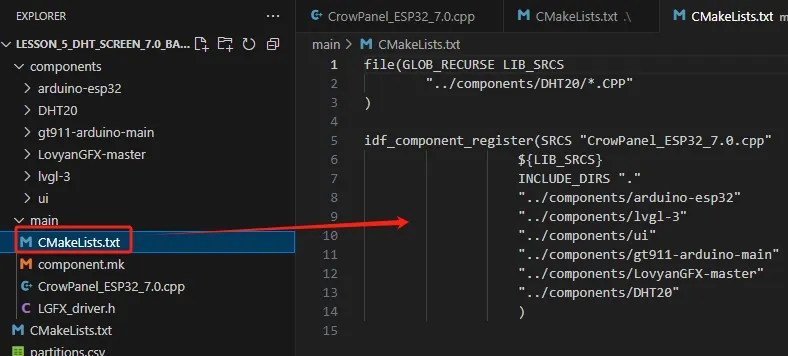

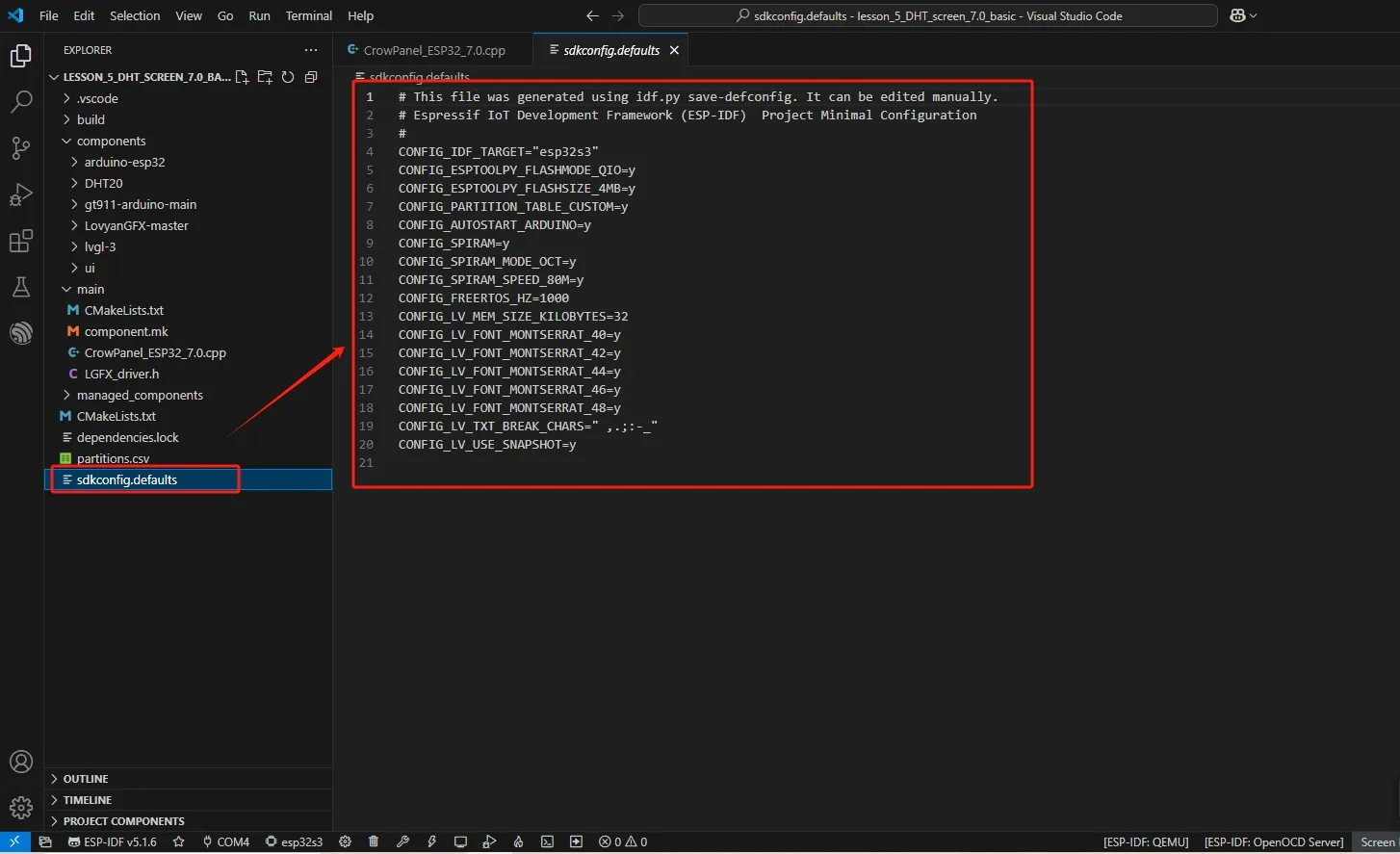

The CMakeList.txt file contains the Settings for the library. All required libraries should be included by directory address. The CPP file of DHT20 has an additional column.

SLS-UI-40

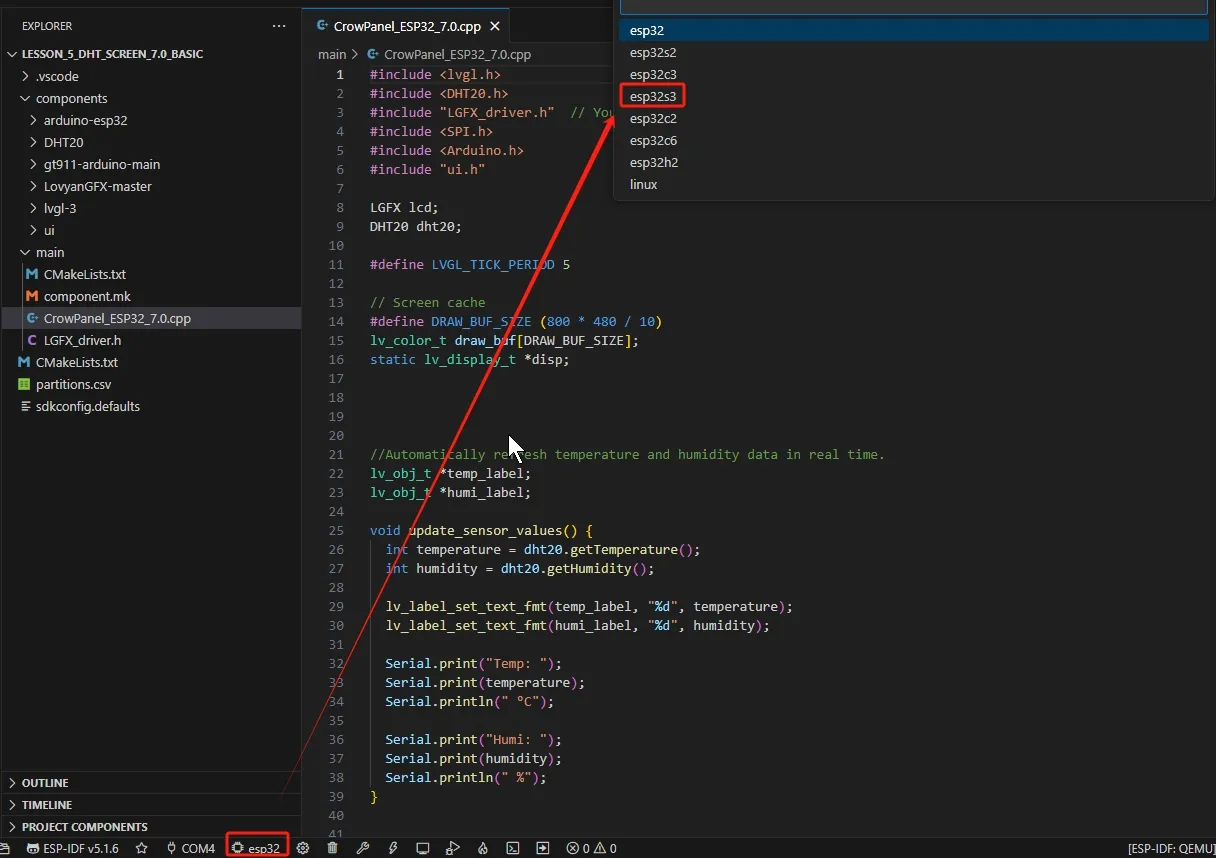

The main program is written in CrowPanel_ESP32_7.0.cpp file.

Library introduction¶

In this project, we will use the following libraries:

#include <lvgl.h>
#include <DHT20.h>
#include <SPI.h>
#include <Adafruit_GFX.h>
#include <LovyanGFX.hpp>
#include <lgfx/v1/platforms/esp32s3/Panel_RGB.hpp>
#include <lgfx/v1/platforms/esp32s3/Bus_RGB.hpp>
#include "ui.h"

#include <lvgl.h>: Library for UI interaction
#include <DHT20.h>: The library of temperature and humidity sensors
#include <SPI.h>: Screen driven library.
#include <Adafruit_GFX.h>: The Adafruit_GFX library is a graphics library provided by Adafruit for drawing graphics on various display devices.
#include <LovyanGFX.hpp>: The LovyanGFX library is a library for drawing graphics on embedded systems, providing rich graphics features and apis
lgfx/v1/platforms/esp32s3/Panel_RGB.hppand lgfx/v1/platforms/esp32s3/Bus_RGB.hpp: These two libraries are part of the LovyanGFX library, specifically for driving RGB color panels on ESP32-S3 microcontrollers. Panel_RGB.hpp provides functions for communicating with RGB panels, while Bus_RGB.hpp provides functions for communicating with RGB buses, which are often used to control devices such as LCD screens.
#include "ui.h": is a custom header file that contain UI-related functions or definitions.****

Code Explanation¶

Basic Definition

LGFX class, which is a subclass of lgfx::LGFX_Device. The main function is to configure and initialize an RGB color panel, and then connect it to the RGB bus on the ESP32-S3 microcontroller to display graphics on the panel.

class LGFX : public lgfx::LGFX_Device
{
public:

  lgfx::Bus_RGB     _bus_instance;
  lgfx::Panel_RGB   _panel_instance;

  LGFX(void)
  {

    {
      auto cfg = _bus_instance.config();
      cfg.panel = &_panel_instance;

      cfg.pin_d0  = GPIO_NUM_15; // B0
      cfg.pin_d1  = GPIO_NUM_7;  // B1
      cfg.pin_d2  = GPIO_NUM_6;  // B2
      cfg.pin_d3  = GPIO_NUM_5;  // B3
      cfg.pin_d4  = GPIO_NUM_4;  // B4

      cfg.pin_d5  = GPIO_NUM_9;  // G0
      cfg.pin_d6  = GPIO_NUM_46; // G1
      cfg.pin_d7  = GPIO_NUM_3;  // G2
      cfg.pin_d8  = GPIO_NUM_8;  // G3
      cfg.pin_d9  = GPIO_NUM_16; // G4
      cfg.pin_d10 = GPIO_NUM_1;  // G5

      cfg.pin_d11 = GPIO_NUM_14; // R0
      cfg.pin_d12 = GPIO_NUM_21; // R1
      cfg.pin_d13 = GPIO_NUM_47; // R2
      cfg.pin_d14 = GPIO_NUM_48; // R3
      cfg.pin_d15 = GPIO_NUM_45; // R4

      cfg.pin_henable = GPIO_NUM_41;
      cfg.pin_vsync   = GPIO_NUM_40;
      cfg.pin_hsync   = GPIO_NUM_39;
      cfg.pin_pclk    = GPIO_NUM_0;
      cfg.freq_write  = 15000000;

      cfg.hsync_polarity    = 0;
      cfg.hsync_front_porch = 40;
      cfg.hsync_pulse_width = 48;
      cfg.hsync_back_porch  = 40;

      cfg.vsync_polarity    = 0;
      cfg.vsync_front_porch = 1;
      cfg.vsync_pulse_width = 31;
      cfg.vsync_back_porch  = 13;

      cfg.pclk_active_neg   = 1;
      cfg.de_idle_high      = 0;
      cfg.pclk_idle_high    = 0;

      _bus_instance.config(cfg);
    }
            {
      auto cfg = _panel_instance.config();
      cfg.memory_width  = 800;
      cfg.memory_height = 480;
      cfg.panel_width  = 800;
      cfg.panel_height = 480;
      cfg.offset_x = 0;
      cfg.offset_y = 0;
      _panel_instance.config(cfg);
    }
    _panel_instance.setBus(&_bus_instance);
    setPanel(&_panel_instance);

  }
};
LGFX lcd;//

/*
(1) The LGFX class inherits from lgfx::LGFX_Device, which means it will inherit the member variables and methods defined in LGFX_Device.

(2) In the constructor of the LGFX class, we first create an instance of _bus_instance for lgfx::Bus_RGB and an instance of _panel_instance for lgfx::Panel_RGB.

(3) Next, initialize the RGB bus and RGB panel by configuring the parameters of these two instances. In this code, data pins for each color are set, as well as some parameters related to synchronization signals and clocks, to ensure the correct transmission and display of data.

(4) The configuration of _bus_instance and _panel_instance is based on their respective configuration objects, which are lgfx::Bus_RGB::config_t and lgfx::Panel_RGB::config_t.

(5) Finally, set the bus used by the panel by calling _panel_instance.setBus(&_bus_instance), and then call setPanel(&_panel_instance) to set the panel as the panel of the current device.

(6) Finally, a global LGFX object lcd was created for graphical drawing operations using this configured panel elsewhere.
*/

Define backlight pins, led variables, and screen resolution parameters. And include touch driver.

#define TFT_BL 2
int led;
#include "touch.h"
/*Changing the screen resolution*/
static const uint16_t screenWidth;
static const uint16_t screenHeight;

Define a buffer variable to initialize the display driver of LVGL and prepare a buffer to store pixel data that will be rendered to the screen. The size of this buffer should be around 1/10 of the product of screen pixel values, which can balance the main control performance and the smoothness of screen display. Taking 10 as an example, the display will be smoother.
```
static lv_disp_draw_buf_t draw_buf;
static lv_color_t buf1[ 800 * 480/ 10 ];
static lv_disp_drv_t disp_drv;  // Declare a static variable of type lv_disp_drv_t, disp_drv, to store configuration information for the display drive.
```

Initialize temperature and humidity sensors and an instance of SPI library

// Initialize DHT20 sensor
DHT20 dht20;
SPIClass& spi = SPI;
uint16_t calData[5] = {190, 3679, 382, 3335, 0};

Function

Screen refresh function, this code is for the refresh function driven by the display in the LittlevGL (LVGL) graphics library. LVGL is an open-source graphics library for embedded systems, used to create graphical user interfaces (GUIs). This function my_disp_flush is a user-defined callback function used to refresh the content of the graphical interface onto the display device.

/* Display Refresh */
void my_disp_flush( lv_disp_drv_t *disp, const lv_area_t *area, lv_color_t *color_p )
{
  uint32_t w = ( area->x2 - area->x1 + 1 );
  uint32_t h = ( area->y2 - area->y1 + 1 );

   //lcd.fillScreen(TFT_WHITE);
#if (LV_COLOR_16_SWAP != 0)
 lcd.pushImageDMA(area->x1, area->y1, w, h,(lgfx::rgb565_t*)&color_p->full);
#else
  lcd.pushImageDMA(area->x1, area->y1, w, h,(lgfx::rgb565_t*)&color_p->full);//
#endif
  lv_disp_flush_ready( disp );
}

A simple touch input device reading function, which is used to convert touch events into the input device data format required by the LVGL library, and output the coordinate information of touch points through serial communication.

void my_touchpad_read(lv_indev_drv_t *indev_driver, lv_indev_data_t *data)
{
  if (touch_has_signal())
  {
    if (touch_touched())
    {
      data->state = LV_INDEV_STATE_PR;

      /*Set the coordinates*/
      data->point.x = touch_last_x;
      data->point.y = touch_last_y;
      Serial.print( "Data x :" );
      Serial.println( touch_last_x );

      Serial.print( "Data y :" );
      Serial.println( touch_last_y );
    }
    else if (touch_released())
    {
      data->state = LV_INDEV_STATE_REL;
    }
  }
  else
  {
    data->state = LV_INDEV_STATE_REL;
  }
  delay(15);
}

Set Up Part

extern "C" void app_main()
  {
    Serial.begin( 9600 ); /*Initializing the Serial Port*/

    //IO Port Pins
    pinMode(38, OUTPUT);
    digitalWrite(38, LOW);

    //initialization of DHT20 pins(I2C)
    Wire.begin(22, 21);
    dht20.begin();

    lv_init(); // LVGL initialization

    lcd.begin();
    lcd.fillScreen(TFT_BLACK);
    delay(300);

    lv_init()
    delay(100);
    touch_init(); //LVGL and Touch initialization


    /*Obtain the width and height of the screen, and initialize the drawing buffer.*/
    screenWidth = lcd.width();
    screenHeight = lcd.height();

    lv_disp_draw_buf_init(&draw_buf, disp_draw_buf, NULL, screenWidth * screenHeight / 10);
    //  lv_disp_draw_buf_init(&draw_buf, disp_draw_buf, NULL, 480 * 272 / 10);
    /* Initialize the display */
    lv_disp_drv_init(&disp_drv);
    /* Change the following line to your display resolution */
    disp_drv.hor_res = screenWidth;
    disp_drv.ver_res = screenHeight;
    disp_drv.flush_cb = my_disp_flush;
    disp_drv.draw_buf = &draw_buf;
    lv_disp_drv_register(&disp_drv);

    /* Initialize the (dummy) input device driver */
    static lv_indev_drv_t indev_drv;
    lv_indev_drv_init(&indev_drv);
    indev_drv.type = LV_INDEV_TYPE_POINTER;
    indev_drv.read_cb = my_touchpad_read;
    lv_indev_drv_register(&indev_drv);

    /*Initialize the (virtual) input device driver*/
    static lv_indev_drv_t indev_drv;//Define the input device driver structure

    lv_indev_drv_init( &indev_drv );//Initialize the input device driver

    indev_drv.type = LV_INDEV_TYPE_POINTER;//Setting the input device type

    indev_drv.read_cb = my_touchpad_read;//Define the read callback function

    lv_indev_drv_register( &indev_drv );//Registering Input Device Drivers

  //Backlight settings
  #ifdef TFT_BL
    pinMode(TFT_BL, OUTPUT);
    digitalWrite(TFT_BL, HIGH);
  #endif


  // UI initialization
    ui_init();
  lv_timer_handler();

  }

Main Program Part

  while (1)
  {

  /*① obtain temperature and humidity data and store it in a char array. First, use two integer variables a and b to store the obtained temperature and humidity separately*/
    char DHT_buffer[6];
    int a = (int)dht20.getTemperature();
    int b = (int)dht20.getHumidity();

  /*Then store the values in the array and display them on the label label through conversion*/
    snprintf(DHT_buffer, sizeof(DHT_buffer), "%d", a);
    lv_label_set_text(ui_Label1, DHT_buffer);
    snprintf(DHT_buffer, sizeof(DHT_buffer), "%d", b);
    lv_label_set_text(ui_Label2, DHT_buffer);

  /*To determine the value of the LED, in the ui. c program, press the "ON" button to set the LED to 1, and control the LED light to turn on.*/
    if(led == 1)
    digitalWrite(38, HIGH);

  /*In the ui. c program, press the "OFF" button to set the LED to 0, and at this time, control the LED to turn off.*/
    if(led == 0)
    digitalWrite(38, LOW);

    lv_timer_handler(); /* let the GUI do its work, only by executing this function can the entire animation run. */
    delay( 10 );
  }

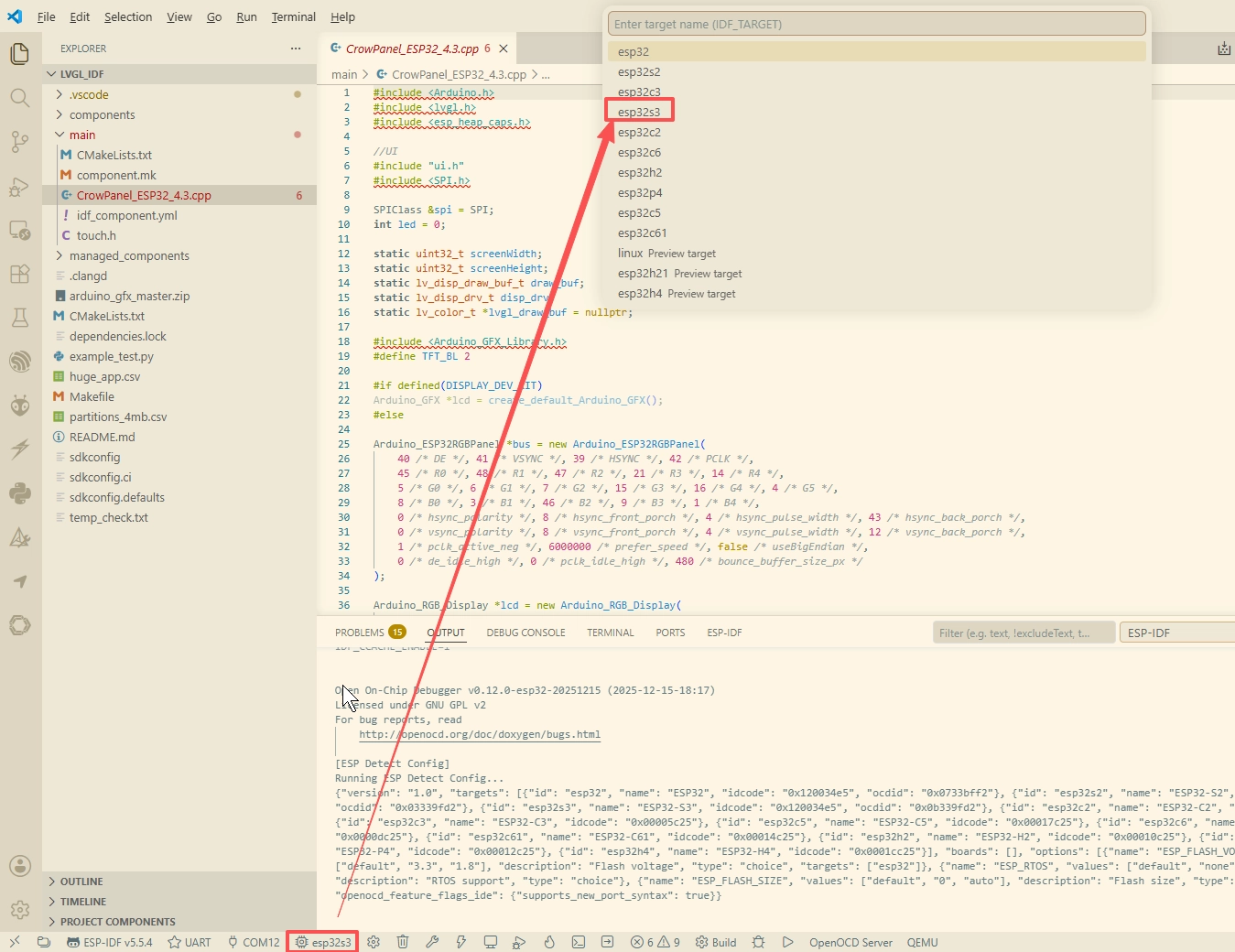

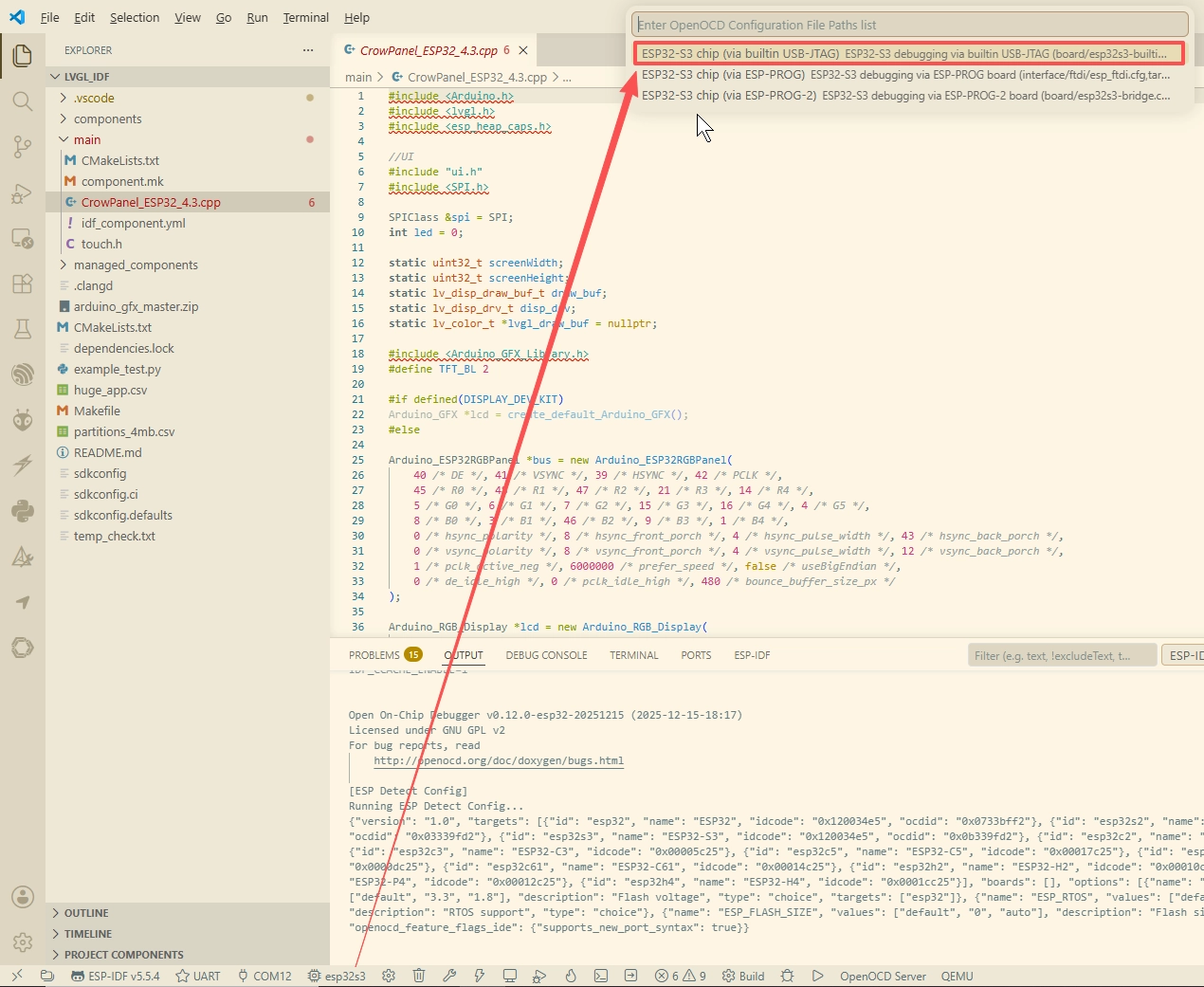

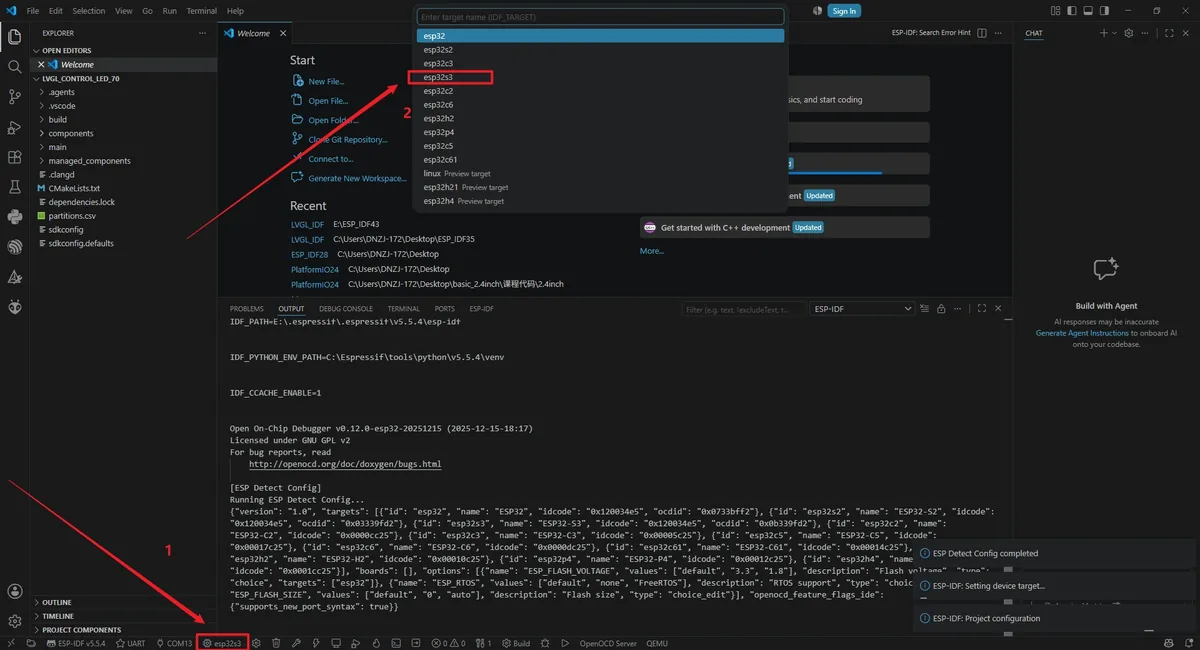

Setup board¶

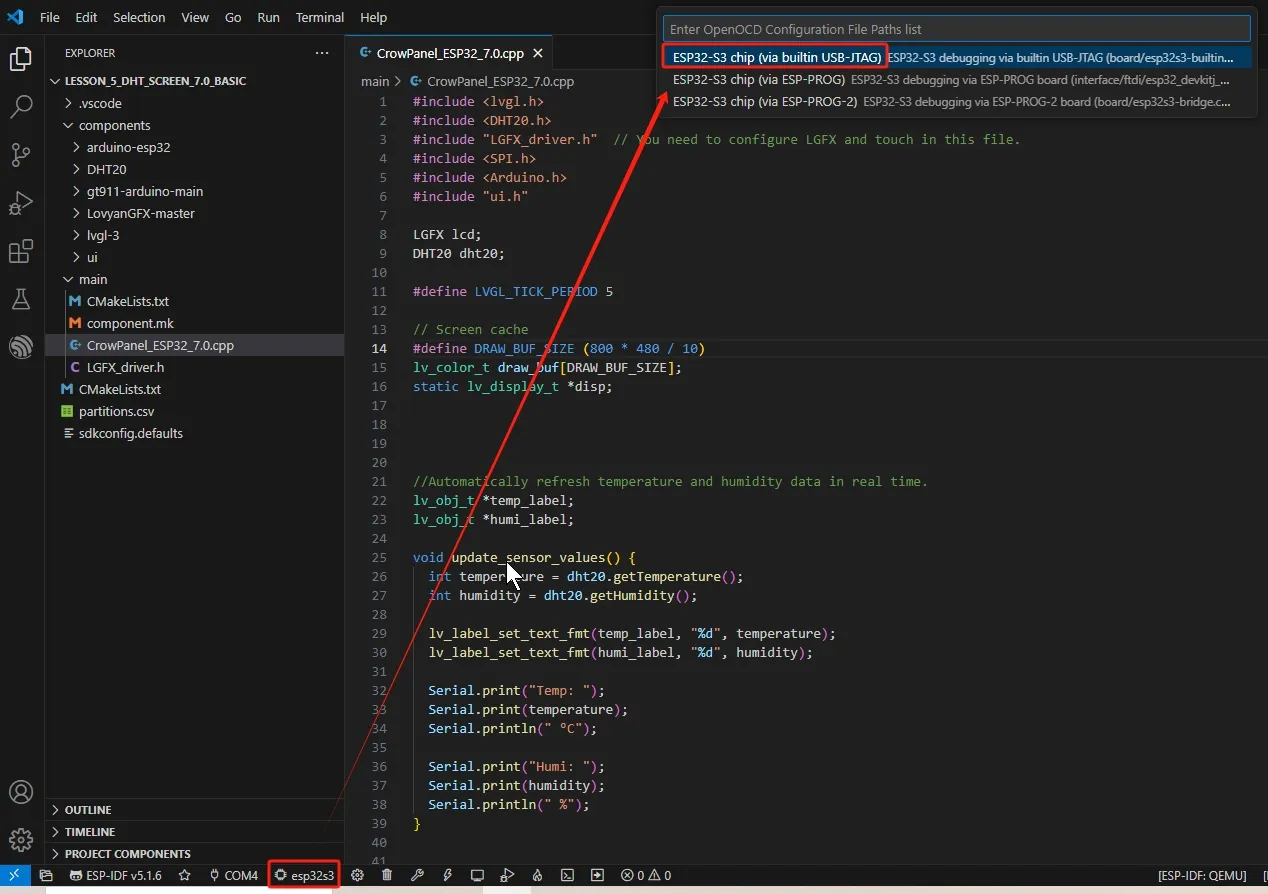

ESP-IDF-1

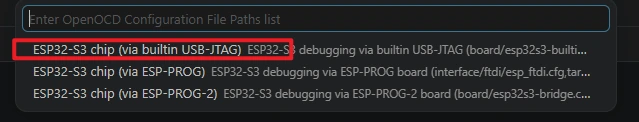

ESP-IDF-2

ESP-IDF-3

ESP-IDF-4

Menuconfig Setup section¶

Click Menuconfig to enter the Settings

ESP-IDF-5

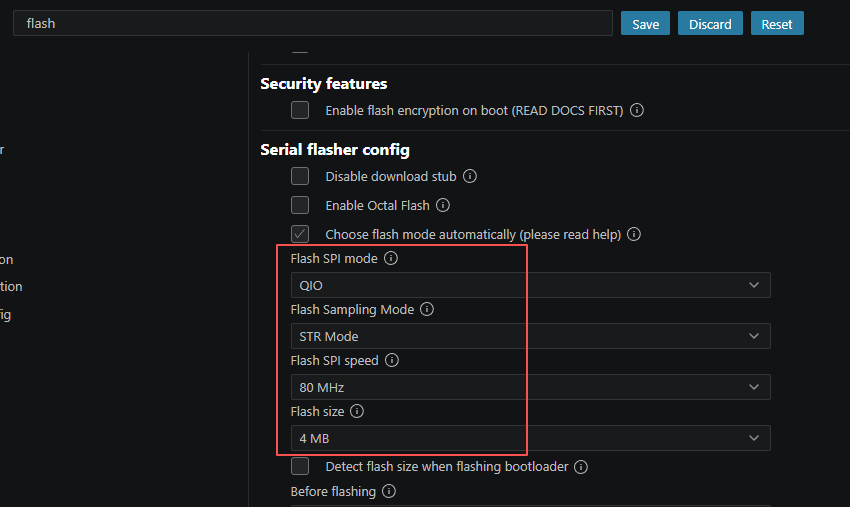

Flash memory setting

ESP-IDF-6

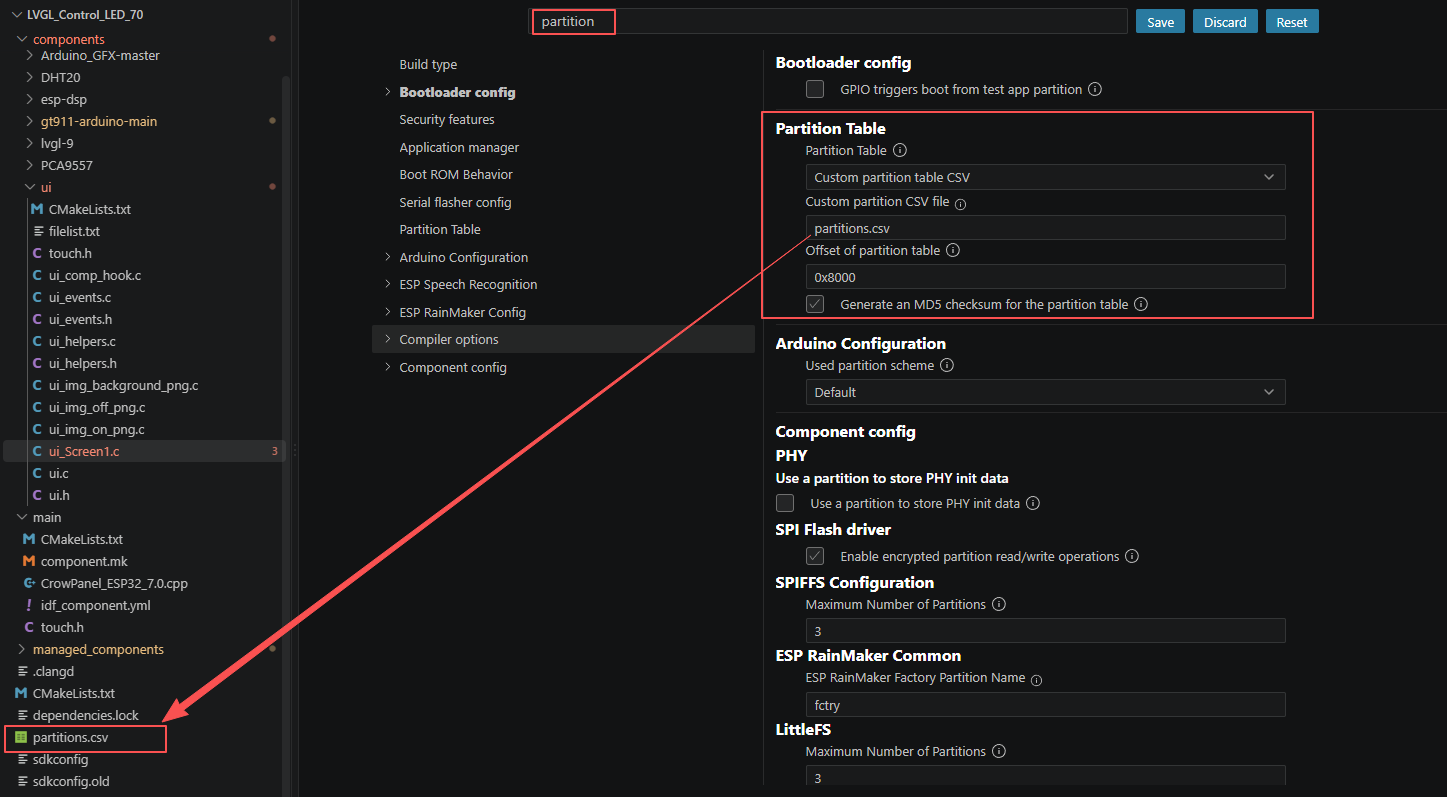

Partition table setting. The second point requires manual input.

ESP-IDF-7

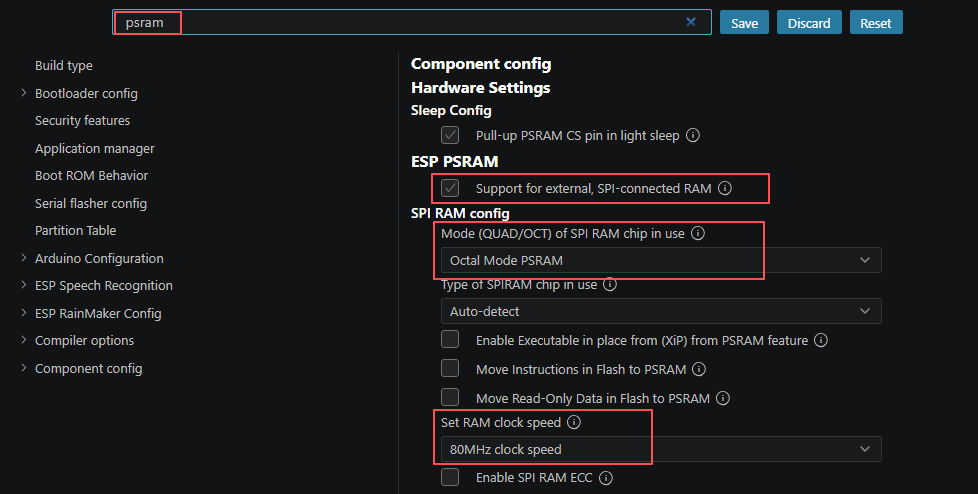

ESP32 setting

ESP-IDF-8

ESP-IDF-9

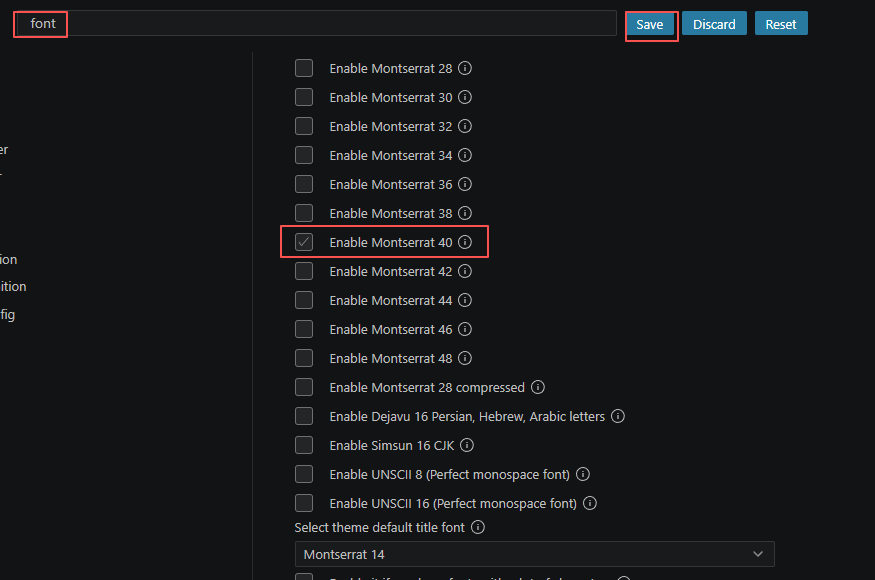

LVGL setting, uncheck

ESP-IDF-10

Save the setting

ESP-IDF-11

Download the program¶

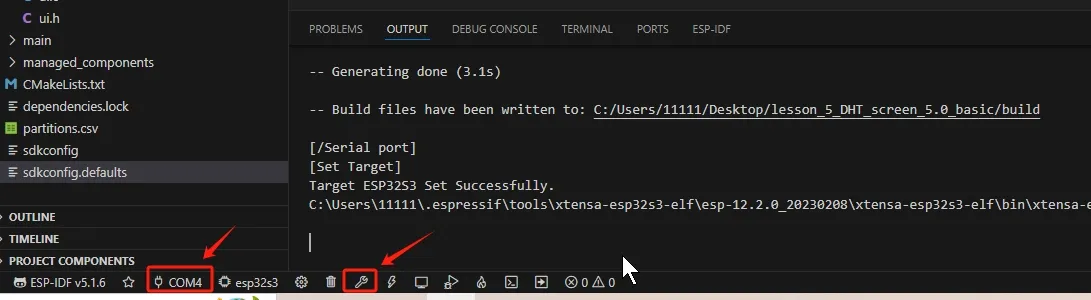

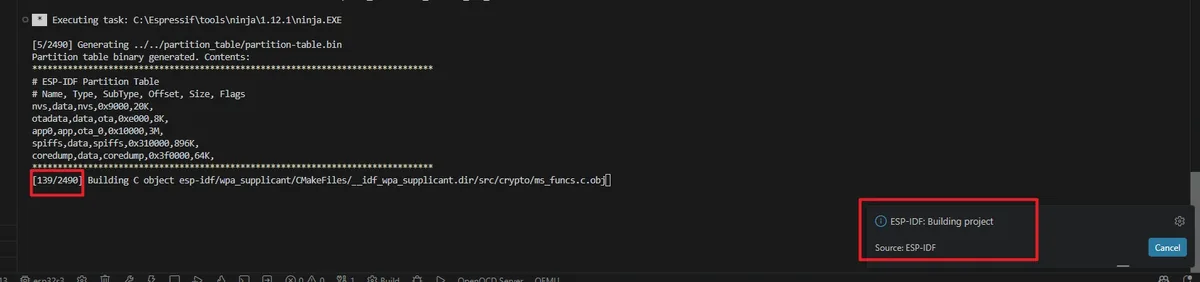

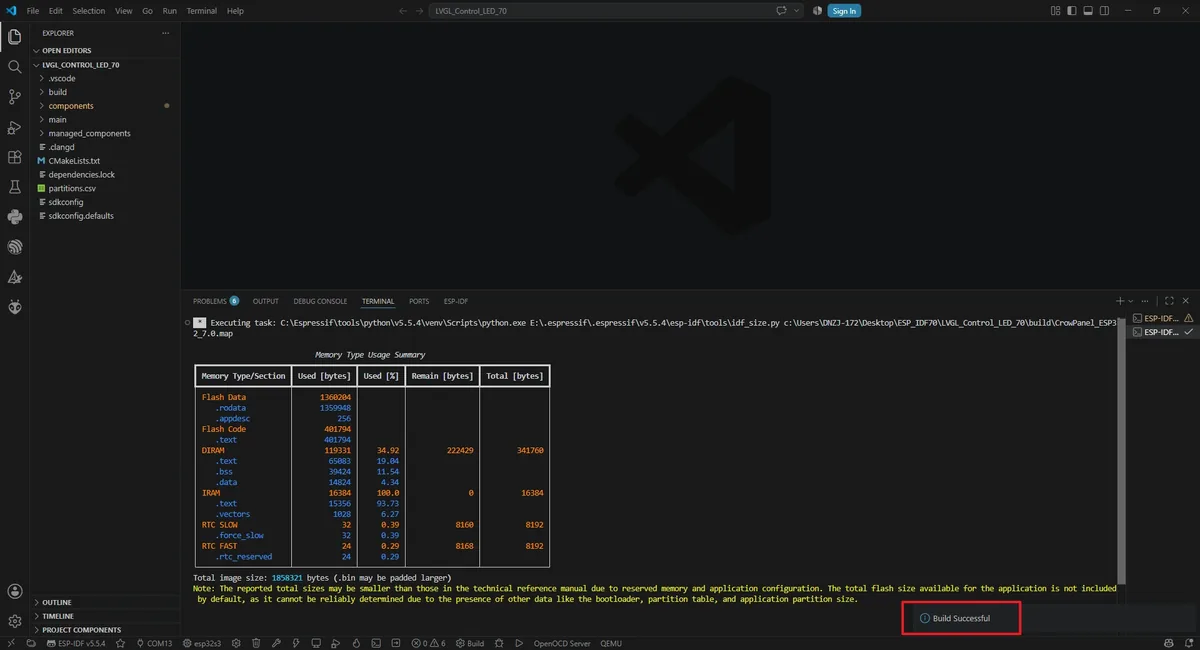

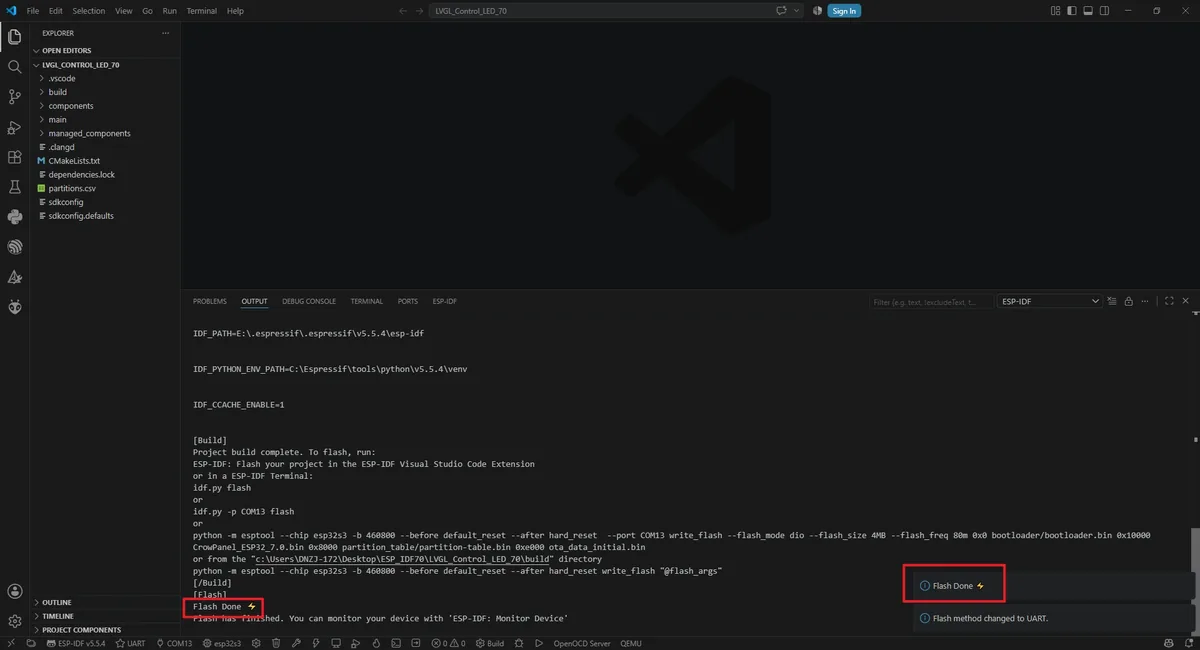

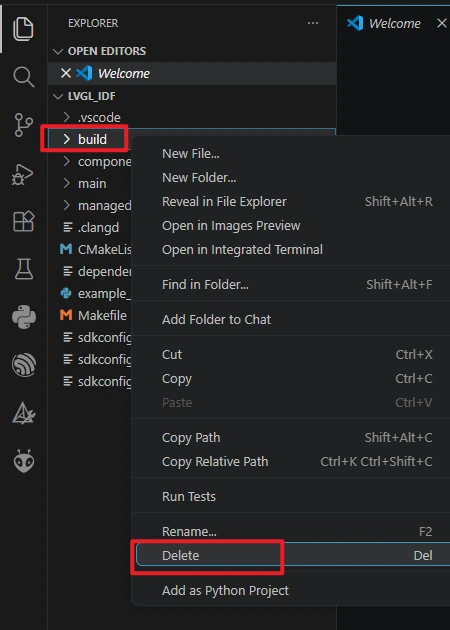

Connect the ESP32 Display to the PC and compile the program.

ESP-IDF-12

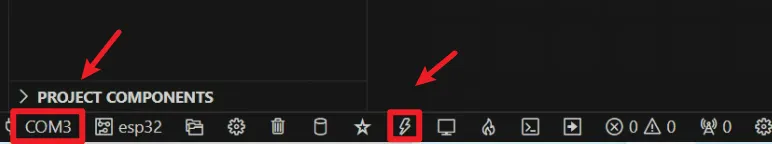

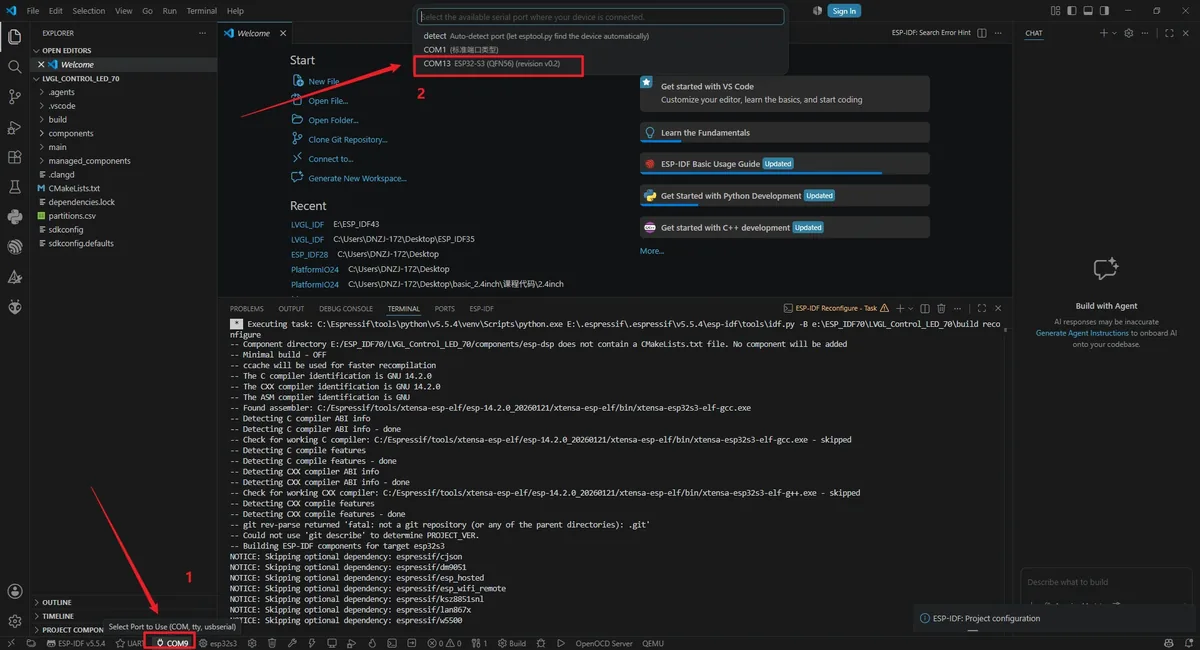

After confirming the serial port, select the UART mode.

ESP-IDF-13

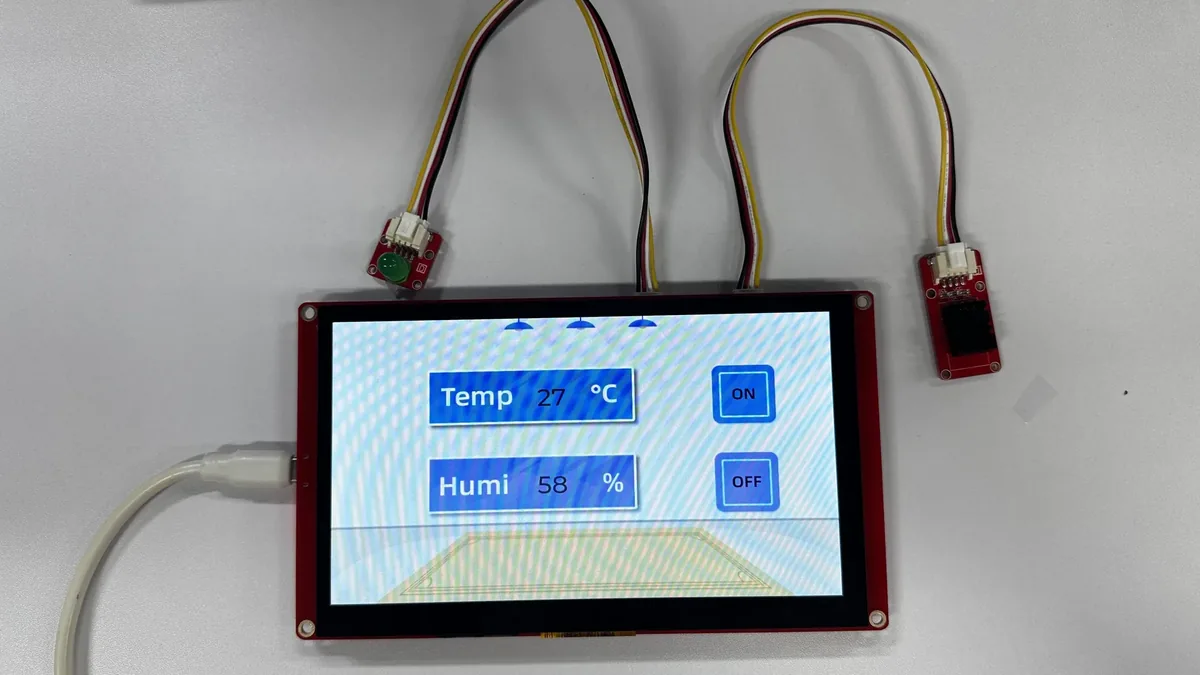

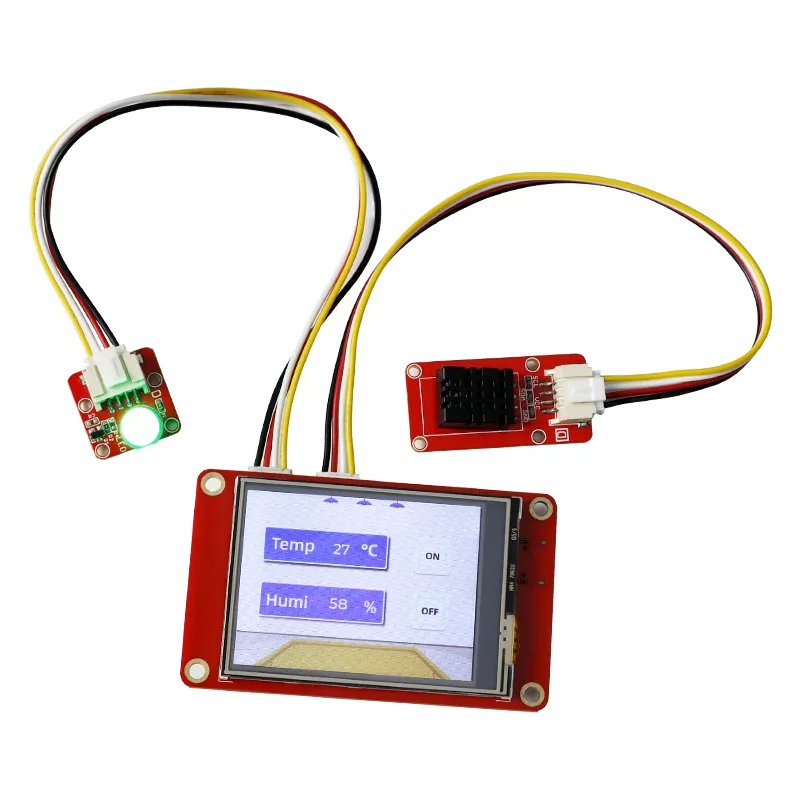

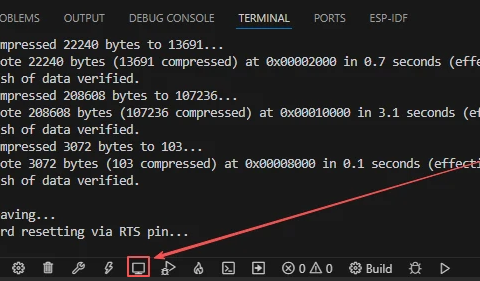

After the program is successfully downloaded, connect the DHT20 sensor to the IIC port and the LED to GPIO_D , the temperature and humidity values will be displayed on the screen. Click the ON button on the screen and the LED will turn on. Click the OFF button and the LED will turn off.

gif2
