ESP32-banner
Features

  • Fit-for-LOT
  • Remote-Control
  • HMI-Utilities
  • Arduino-LVGL-supported
  • Custom-GUI
  • More-applications
Where to use?

Smart-home Industrial-automation
  • Smart-health
  • Smart-transportion

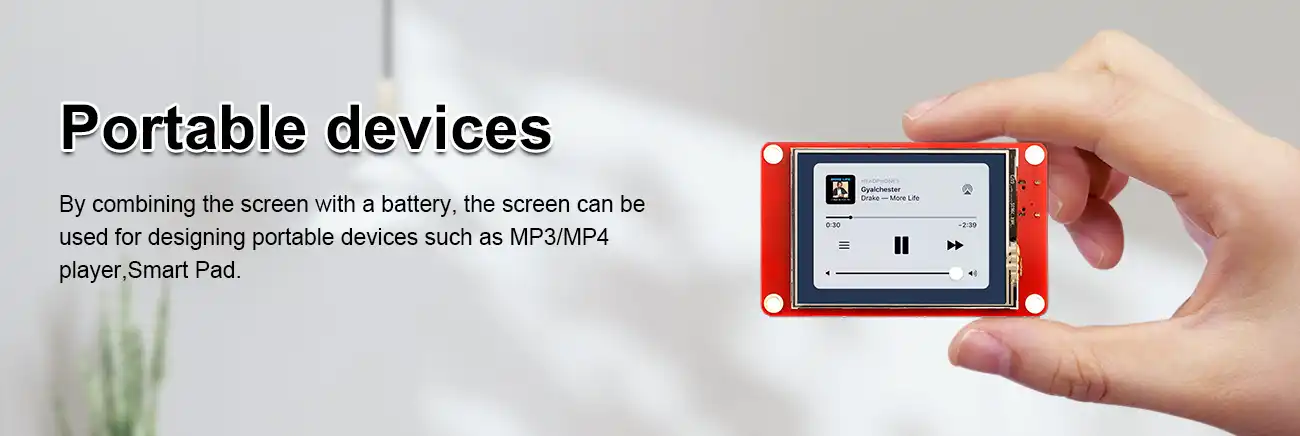

  • Portable-devices
CrowPanel ESP32 Display Series

CrowPanel Display: 2.4" LVGL/Arduino Supported HMI Screen

The CrowPanel ESP32 Display is a 2.4" HMI screen of a 240*320 resolution LCD display, powered by ESP32-WROOM-32. It has a dual-core 32-bit Xtensa LX6 MCU, integrated WiFi/Bluetooth, and up to 240MHz frequency, great for IoT and more.

Wireless

Built-in wireless communication 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 4.2

Easy to Learn

16 LVGL ESP32 tutorials and a wealth of open-source learning materials available

Multi-Environments

Support development environment Arduino IDE, Espressif IDF, Lua RTOS, Micro python

LVGL supported

Compatible with open source Graphics Library LVGL

Multi-functions

Rich peripheral interfaces and expansion functions enable it to meet the needs of different fields
Buy Now Learn More >
smartview2.4-封面
play
SMATVIEW-2.8-封面
play
CrowPanel Display: 2.8" LVGL/Arduino Supported HMI Screen

CrowPanel ESP32 Display 2.8" SPI Module is a 240*320 resolution HMI screen, it adapts ESP32-WROOM-32 control processor up to 240MHz frequency, a dual-core 32-bit Xtensa LX6 CPU, integrated WiFi/Bluetooth, all making it ideal for IoT devices.

Wireless

Built-in wireless communication 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 4.2

Easy to Learn

16 LVGL ESP32 tutorials and a wealth of open-source learning materials available

Multi-Environments

Support development environment Arduino IDE, Espressif IDF, Lua RTOS, Micro python

LVGL supported

Compatible with open source Graphics Library LVGL

Multi-functions

Rich peripheral interfaces and expansion functions enable it to meet the needs of different fields
Buy Now Learn More >
CrowPanel Display: 3.5" LVGL/Arduino Supported HMI Screen

CrowPanel ESP32 Display 3.5" TFT Module is a 320*480 resolution HMI screen, it adapts ESP32-WROOM-32 control processor up to 240MHz frequency, a dual-core 32-bit Xtensa LX6 CPU, integrated WiFi/Bluetooth, all making it ideal for IoT devices.

Wireless

Built-in wireless communication 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 4.2

Easy to Learn

16 LVGL ESP32 tutorials and a wealth of open-source learning materials available

Multi-Environments

Support development environment Arduino IDE, Espressif IDF, Lua RTOS, Micro python

LVGL supported

Compatible with open source Graphics Library LVGL

Multi-functions

Rich peripheral interfaces and expansion functions enable it to meet the needs of different fields
Buy Now Learn More >

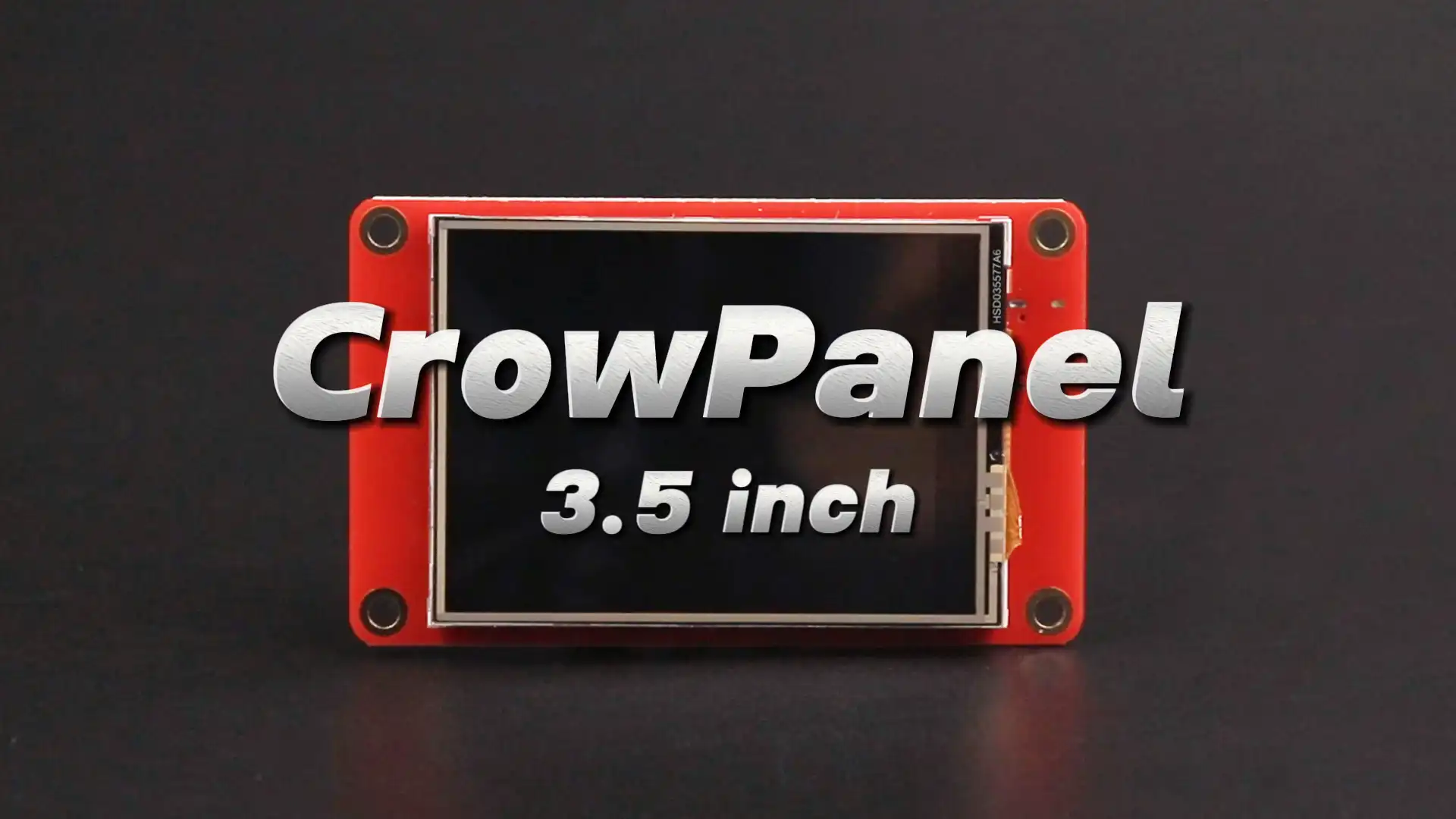

smartview-3.5 inch
smartview-4.3 inch
play

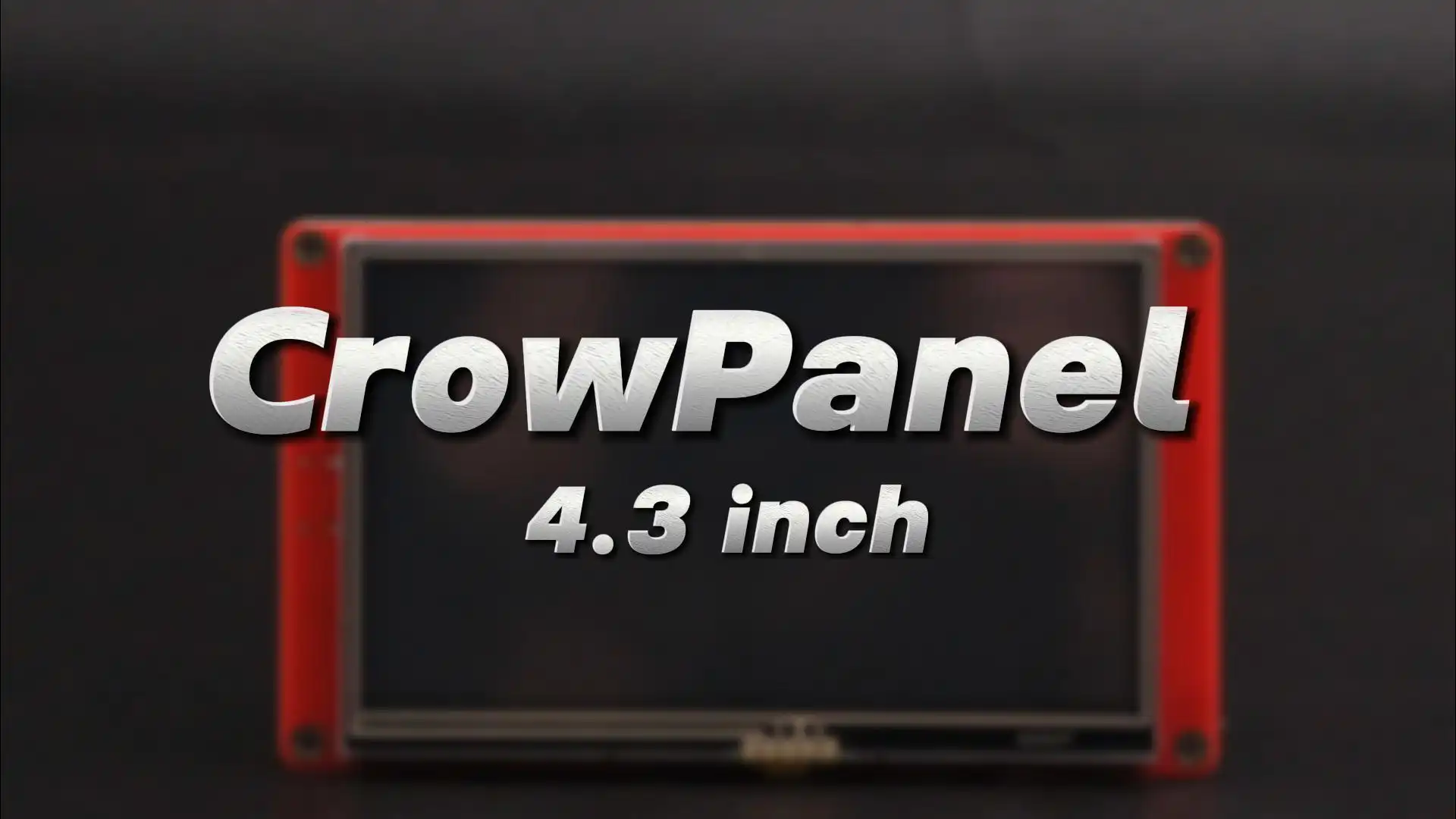

CrowPanel Display: 4.3" LVGL/Arduino Supported HMI Screen

CrowPanel ESP32 Display 4.3" TFT Module is a 480x272 resolution HMI screen, it adapts ESP32-S3-WROOM-1-N4R2 control processor up to 240MHz frequency, a dual-core 32-bit LX6 Xtensa CPU, integrated WiFi/Bluetooth, all making it ideal for IoT devices.

Wireless

Built-in wireless communication 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5.0

Easy to Learn

16 LVGL ESP32 tutorials and a wealth of open-source learning materials available

Multi-Environments

Support development environment Arduino IDE, Espressif IDF, Lua RTOS, Micro python

LVGL supported

Compatible with open source Graphics Library LVGL

Multi-functions

Rich peripheral interfaces and expansion functions enable it to meet the needs of different fields
Buy Now Learn More >
CrowPanel Display: 5.0" LVGL/Arduino Supported HMI Screen

CrowPanel ESP32 Display 5.0" TFT Module is a 800x480 resolution HMI screen, it adapts ESP32-S3-WROOM-1-N4R8 control processor up to 240MHz frequency, a dual-core 32-bit Xtensa LX6 CPU, integrated WiFi/Bluetooth, all making it ideal for IoT devices.

Wireless

Built-in wireless communication 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5.0

Multi-Environments

Support development environment Arduino IDE, Espressif IDF, Lua RTOS, Micro python

LVGL supported

Compatible with open source Graphics Library LVGL

Multi-functions

Rich peripheral interfaces and expansion functions enable it to meet the needs of different fields
Buy Now

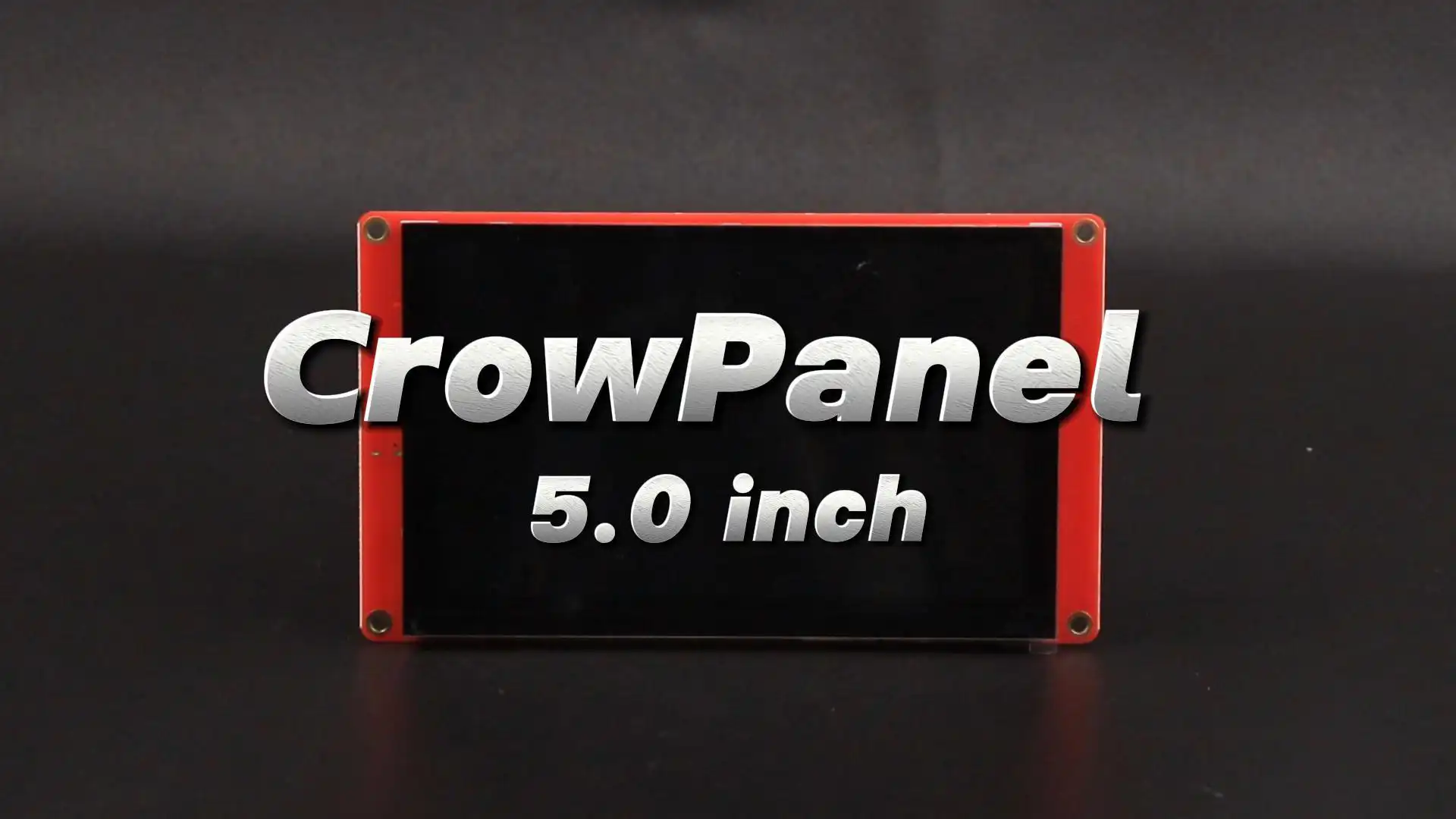

smartview-5.0-封面
play

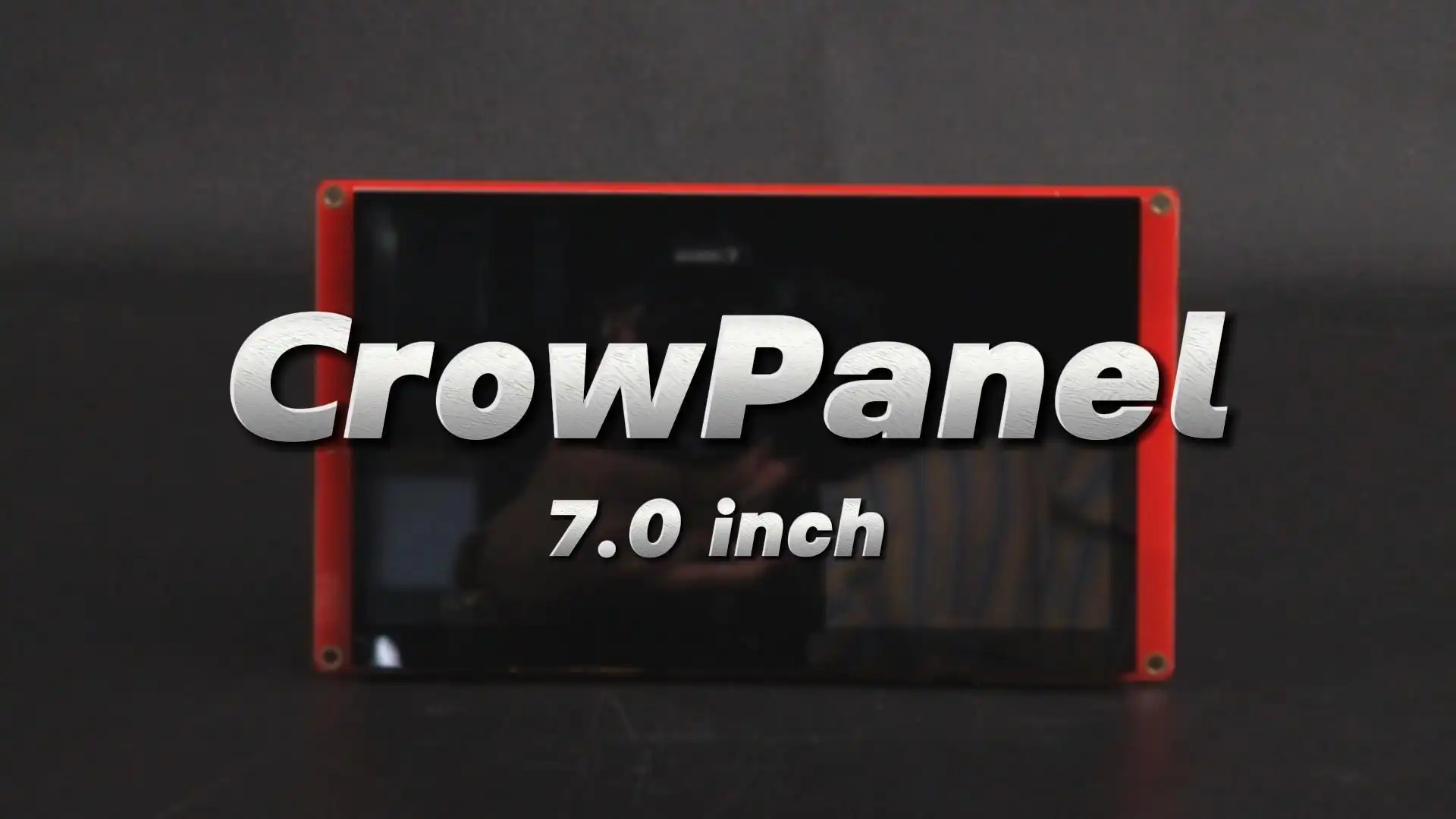

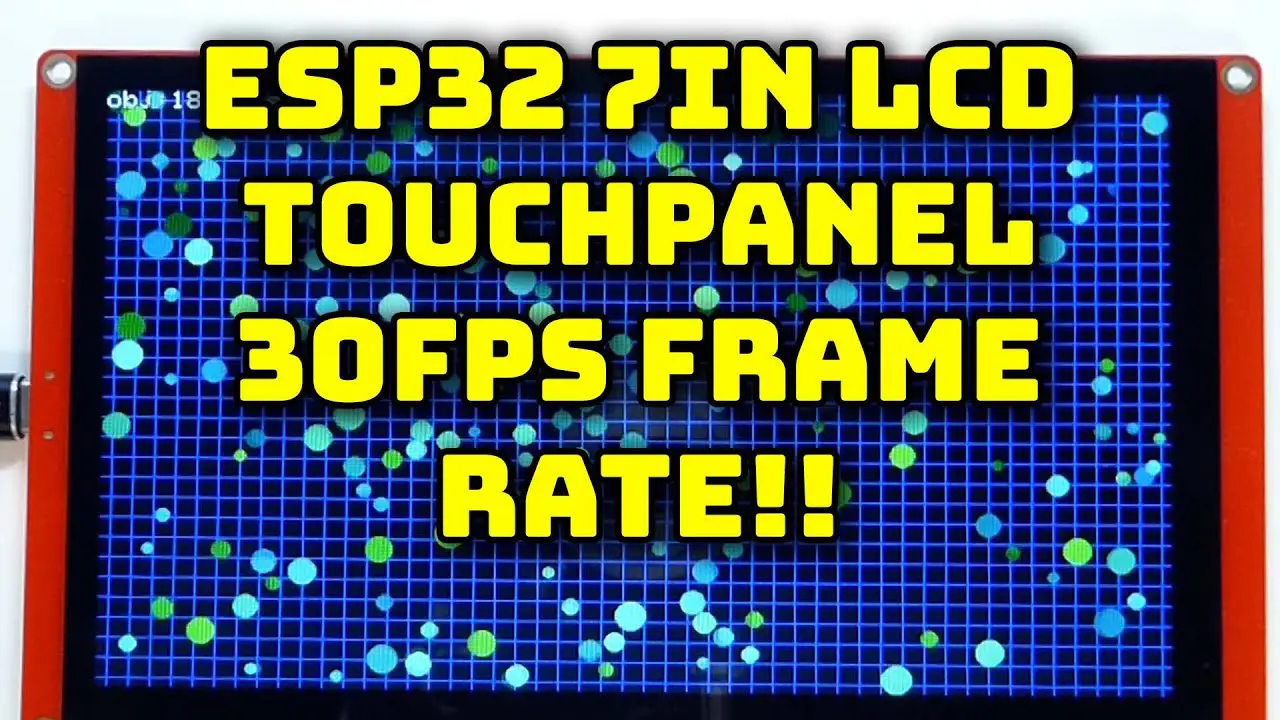

smartview-7.0-封面
play
CrowPanel Display: 7.0" LVGL/Arduino Supported HMI Screen

CrowPanel ESP32 Display 7.0" TFT Module is a 800x480 resolution HMI screen, it adapts ESP32-S3-WROOM-1-N4R8 control processor up to 240MHz frequency, a dual-core 32-bit Xtensa LX6 CPU, integrated WiFi/Bluetooth, all making it ideal for IoT devices.

Wireless

Built-in wireless communication 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5.0

Multi-Environments

Support development environment Arduino IDE, Espressif IDF, Lua RTOS, Micro python

LVGL supported

Compatible with open source Graphics Library LVGL

Multi-functions

Rich peripheral interfaces and expansion functions enable it to meet the needs of different fields
Buy Now
ESP32 HMI Screen: 3.5" TFT Display of RGB Screen with chip ILI9488

The Elecrow 3.5" TFT RGB ESP32 Screen has a 240Mhz Xtensa 32-bit LX7 dual-core processor, 2.4GHz Wi-Fi, and Bluetooth 5 (LE) support. It's Ideal for industrial control, agriculture, logistics monitoring, and smart homes.

Multifunctional

It can be connected with 150+ types of Crowtail modules for more interesting projects.

Multi-color Screen

320*480 resolution RGB true color LCD screen embedded with ESP32-S3 module

LVGL supported

Fit for open source Graphics Library LVGL

Programming Supported

It supports programming with VS Code, Python IDE, and Arduino IDE.

Easy to Learn

16 LVGL ESP32 tutorials and a wealth of open-source learning materials available
Buy Now Learn More >

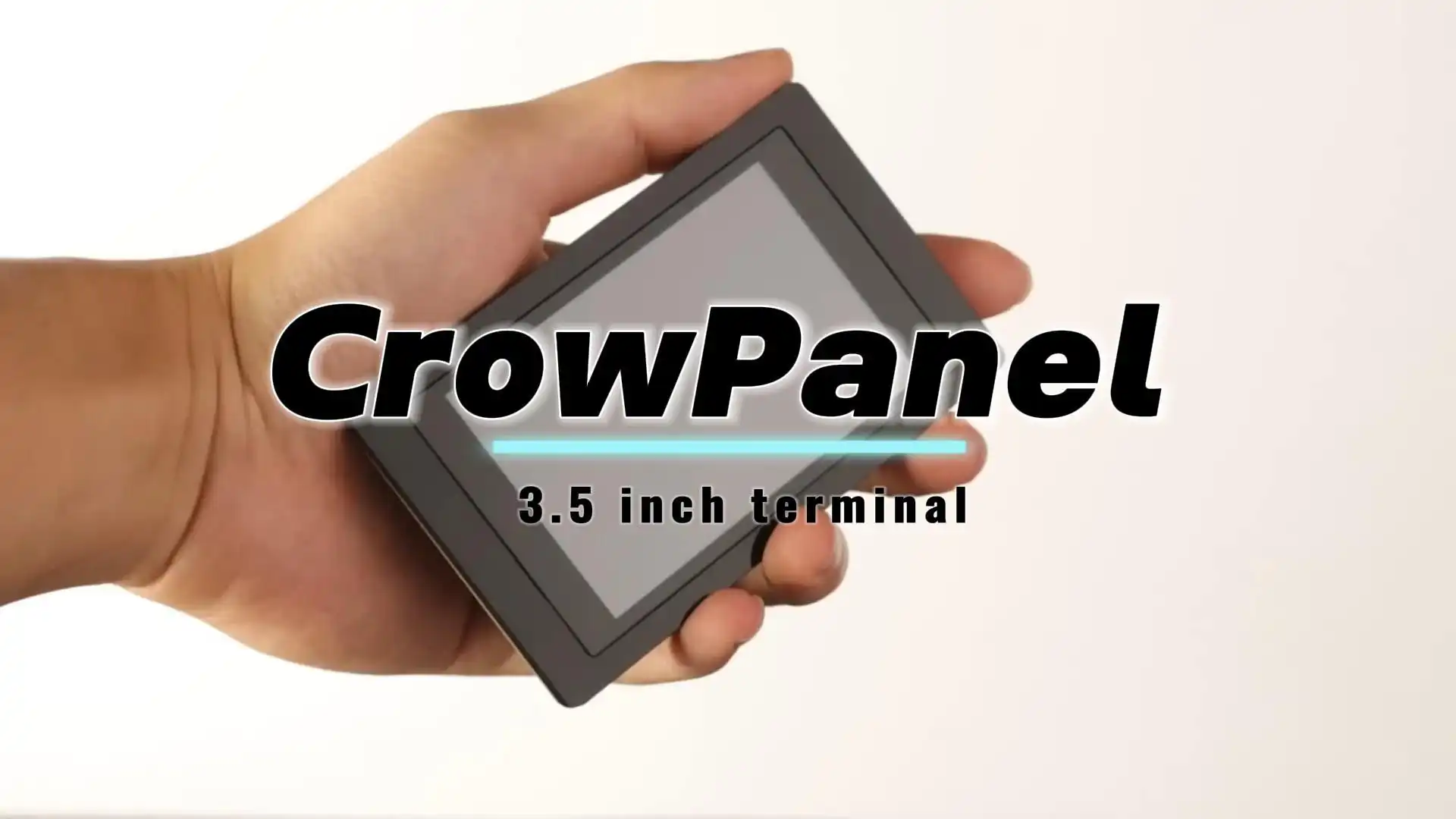

smartview-3.5-terminal
play
smartview-3.5-with-camera
play

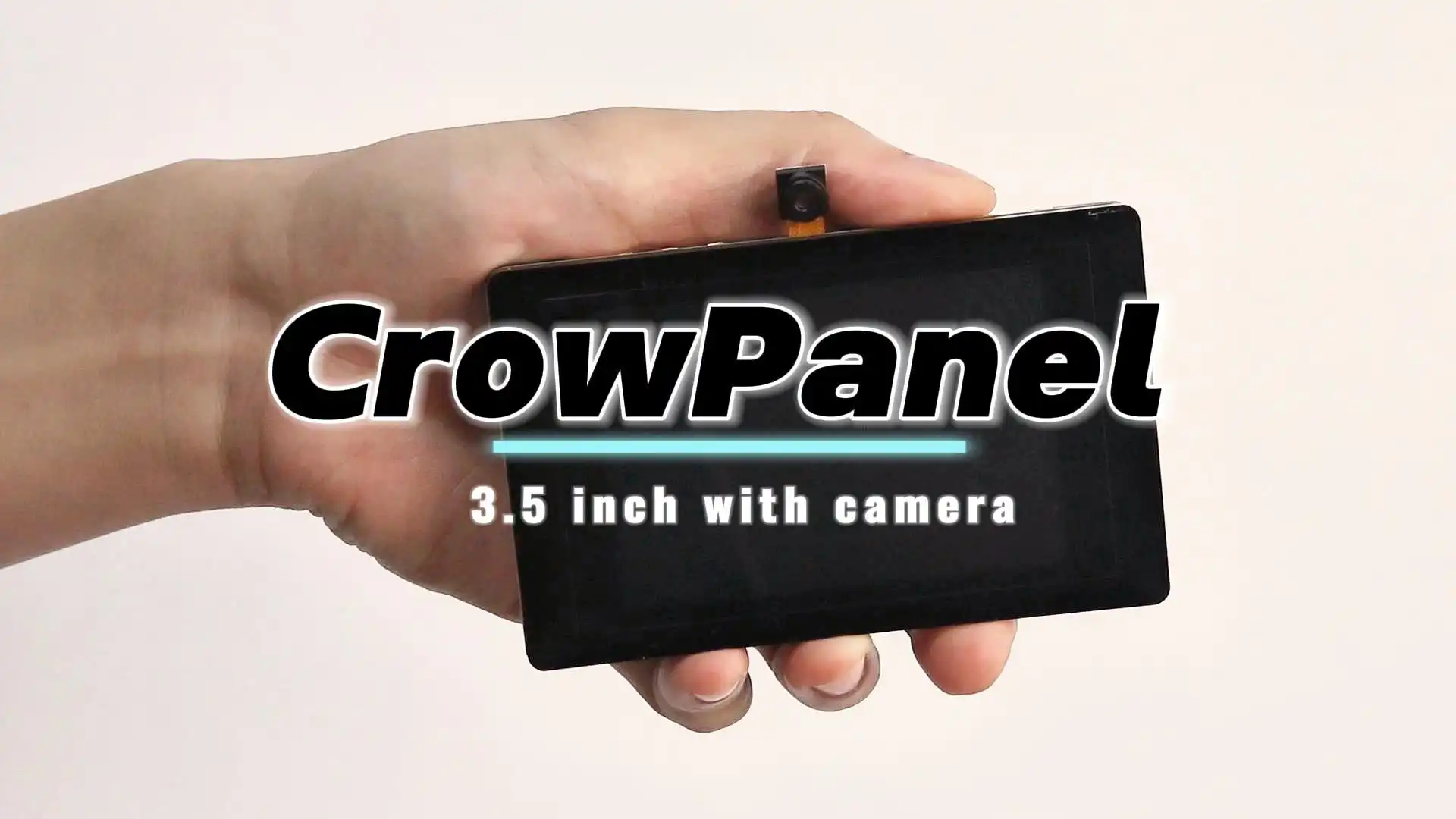

ESP32 HMI Screen: 3.5" 480x320 TFT Display with OV2640 camera

The 3.5" CrowPanel display has a powerful ESP32-S3 chip and supports 2.4GHz Wi-Fi and Bluetooth 5 (LE), making it an ideal SPI Display for IoT applications in industrial control, agriculture, smart home monitoring, and DIY projects.

Multifunctional

It can be connected with 150+ types of Crowtail modules for more interesting projects.

OV2640 camera

The 2M pixel camera recognizes faces, objects, scenes, and improves speech recognition.

LVGL supported

Fit for open source Graphics Library LVGL

Programming Supported

It supports programming with VS Code, Python IDE, and Arduino IDE.

Easy to Learn

16 LVGL ESP32 tutorials and a wealth of open-source learning materials available
Buy Now Learn More >
CrowPanel Display Comparison

Size 2.4 2.8 3.5 4.3 5.0 7.0 ESP32 Terminal-3.5 RGB Display ESP32 Terminal-3.5 SPI Display
2.4 2.8 3.5 4.3 5.0 7.0 3.5-Without-camera 3.5-With-camera
Resolution 320*240 320*240 480*320 480*272 800*480 800*480 480*320 480*320
Touch Type Resistive Touch Resistive Touch Resistive Touch Resistive Touch Capacitive Touch Capacitive Touch Capacitive Touch Capacitive Touch
Main Processor ESP32-WROOM-32-N4 ESP32-WROOM-32-N4 ESP32-WROVER-B ESP32-S3-WROOM-1-N4R2 ESP32-S3-WROOM-1-N4R8 ESP32-S3-WROOM-1-N4R8 ESP32-S3-WROOM-2 ESP32-S3-WROOM-2
Frequency 240MHz 240MHz 240MHz 240MHz 240MHz 240MHz 240MHz 240MHz
Flash 4MB 4MB 4MB 4MB 4MB 4MB 16MB 16MB
SRAM 520KB 520KB 520KB 512KB 512KB 512KB 512KB 512KB
ROM 448KB 448KB 448KB 384KB 384KB 384KB 384KB 384KB
PSRAM / / 8MB 2MB 8MB 8MB 8MB 8MB
Display Driver ILI9341V ILI9341V ILI9488 NV3047 IL16122 + IL15960 EK9716BD3 + EK73002ACGB ILI9488 ILI9488
Screen TFT TFT TFT TFT TFT TFT TFT TFT
Type Interface 1UART0,1*UART1,1*I2C,1*GPIO,1*Battery 1UART0,1*UART1,1*I2C,1*GPIO,1*Battery 2*UART0,1*I2C,1*GPIO,1*Battery 1*UART0,2*UART1,2*GPIO,1*Battery 2*UART0,2*GPIO,2*I2C,1*Battery 2UART0,2*GPIO,2*I2C,1*Battery 1*UART,1*Analog,1*IIC,1*Digital,1*Battery 1*UART,2*Analog,1*IIC,2*Digital,1*Battery
Speaker Jack YES YES YES YES YES YES NO NO
TF Card Slot YES YES YES YES YES YES YES YES
Active Area 36.72*48.96mm(WH) 43.2*57.6mm(WH) 48.96*73.44mm(WH) 95.04*53.8mm(WH) 108*64.8mm(WH) 153.84*85.63mm(WH) 49.79mm*73.63(W*H) 49.79mm*73.63*(W*H)
Products

  • CrowPanel 2.4

    CrowPanel 2.4"-ESP32 HMI 240x320 SPI TFT LCD Touch Screen Compatible with Arduino/LVGL/ Esphome-Homeassistant/PlatformIO/Micropython

    $19.9 $15.92
  • CrowPanel 2.8

    CrowPanel 2.8"-ESP32 HMI 240x320 Display SPI TFT LCD Touch Screen Compatible with Arduino/LVGL/ Esphome-Homeassistant/PlatformIO/Micropython

    $20.9 $16.72
  • CrowPanel 3.5

    CrowPanel 3.5"-HMI ESP32 Display 320x480 SPI TFT LCD Touch Screen Compatible with Arduino/LVGL/ PlatformIO/Micropython

    $26.9 $21.52
  • CrowPanel 4.3

    CrowPanel 4.3"-HMI ESP32 Display 480x272 RGB TFT LCD Touch Screen Compatible with Arduino/LVGL/ PlatformIO/Micropython

    $27.9 $22.32
  • CrowPanel 5.0

    CrowPanel 5.0"-HMI ESP32 Display 800x480 RGB TFT LCD Touch Screen Compatible with Arduino/LVGL/ PlatformIO/Micropython

    $39.9 $31.92
  • CrowPanel 7.0

    CrowPanel 7.0" -HMI ESP32 Display 800x480 RGB TFT LCD Touch Screen Compatible with Arduino/LVGL/ PlatformIO/Micropython

    $42.9 $34.32
    `
  • 3.5-Without-camera

    CrowPanel-ESP32 Terminal with 3.5 inch parallel 480x320 TFT capacitive touch RGB display(RGB by chip ILI9488)

    $33.90 $30.51
  • 3.5-With-camera

    CrowPanel-ESP32 Terminal 3.5 inch 480x320 SPI TFT capacitive touch display with OV2640 camera

    $39.90 $35.91

For bulk orders or project inquiry，distribution interest, welcome to discuss with us via email service@elecrow.com

ESP32 HMI Display Lesson

Video Lessons

The CrowPanel ESP32 Display Tutorial includes multiple creative instructional guides to explore the endless possibilities for your electronics projects.Compatible with the open source LVGL graphics library, the CrowPanel display enables a variety of fun HMI GUI projects.

With the related appropriate electronic modules, these displays excel in smart home, gaming, and IoT applications. They can function as voice-controlled LED lighting assistants, AC terminal controllers, air quality monitors, and temperature monitoring systems. They can also serve as stylish smart desk clocks and entertaining gaming consoles where you can enjoy the fun of "Whack a Mole" or engage in epic battles with enemies in "King of Fighter".

In addition, the CrowPanel display can even function as a mobile phone for making calls. The possibilities of the CrowPanel ESP32 display series go far beyond what's been mentioned, inviting you to enter and explore more of the world of DIY electronics.

Study Now

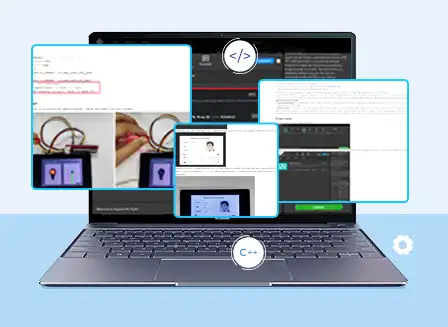

WIKI

By combining LVGL with ESP32, you can develop sophisticated and responsive GUI designs that enhance the user experience and add value to your projects, such as support for animation, themes, fonts, and touch input.

In this 16-lesson, step-by-step LVGL ESP32 tutorial, we will guide you through the process of setting up LVGL on your ESP32 development board, creating a basic GUI application, and adding advanced features such as animation, themes, and touch input. We will also cover best practices for optimizing your LVGL GUIs for performance and memory usage.

Whether you are an experienced embedded systems developer or just getting started with LVGL and ESP32, this tutorial will give you the knowledge and skills you need to create stunning GUI features for your ESP32 projects. So let's get started!

Study Now
